XCP-S ZUCCHINI

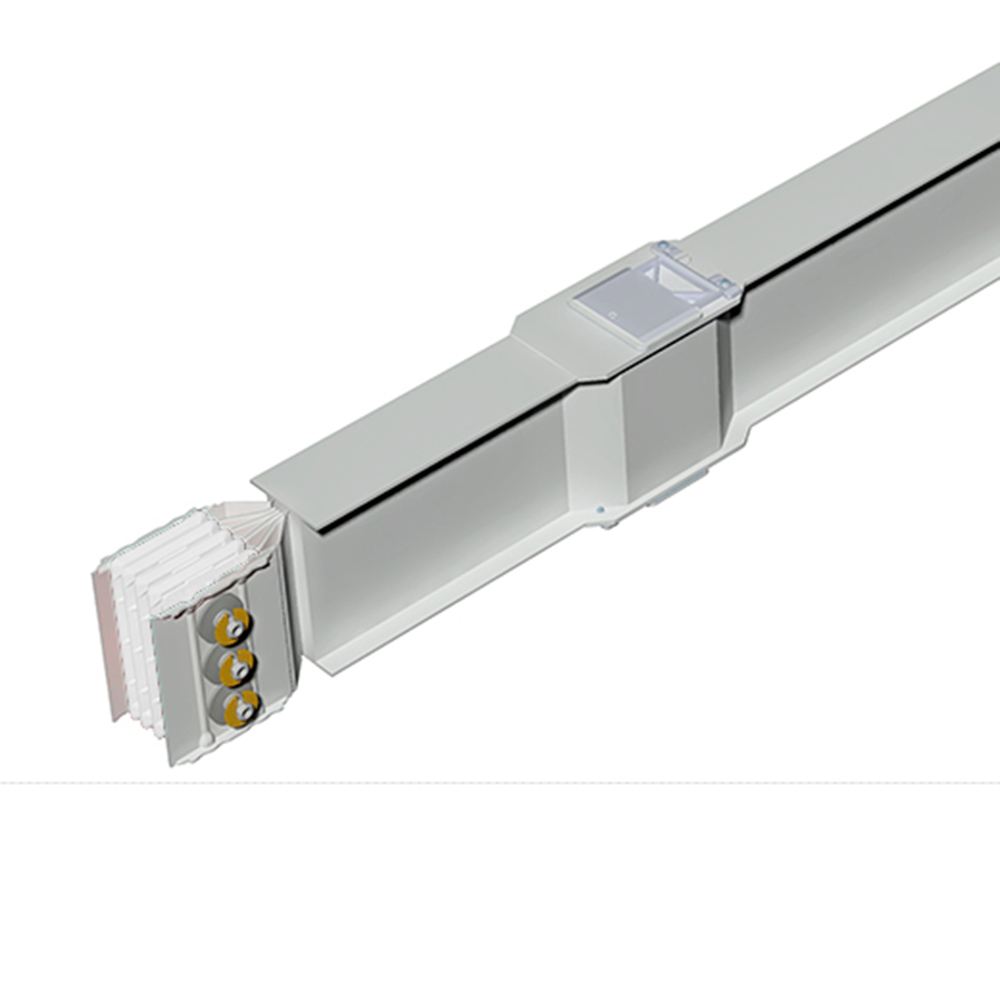

Straight element for distribution XCP-S (Cu). N° of outlets 1+1 - L= 1-1.5m - In= 2000A

ZU-67280976P | 8033777393978
XCP-S - straight element for distribution (Cu). N° of outlets 1+1 - Length 1-1.5m - In= 2000A
Technical Characteristics
Model Single
Rated current AC 50 Hz 2000 A
Number of poles 3
Number of conductors (without earthing) 4
Flexible No
Rated voltage AC 50 Hz (Min-Max) 0-1000 V
Number of tap-off units 2
Colour Grey
RAL-number 7035
Degree of protection (IP) IP55
Length 1500 mm
Height 120 mm
Operating / setting temperature (Min-Max) -5-35 °C
Nominal voltage (Min-Max) 0-1000 V
Halogen free Yes
Documentation
1 documents
Technical Sheet
F03376EN/05 | PDF (2.8 MB) | EN
1 documents
Agreement
LGEOFEHZVV | FILE (696 KB) | EN
1 documents
Catalog Commercial Page
3201961 | PDF (29.5 MB) | EN
