XCP-S ZUCCHINI

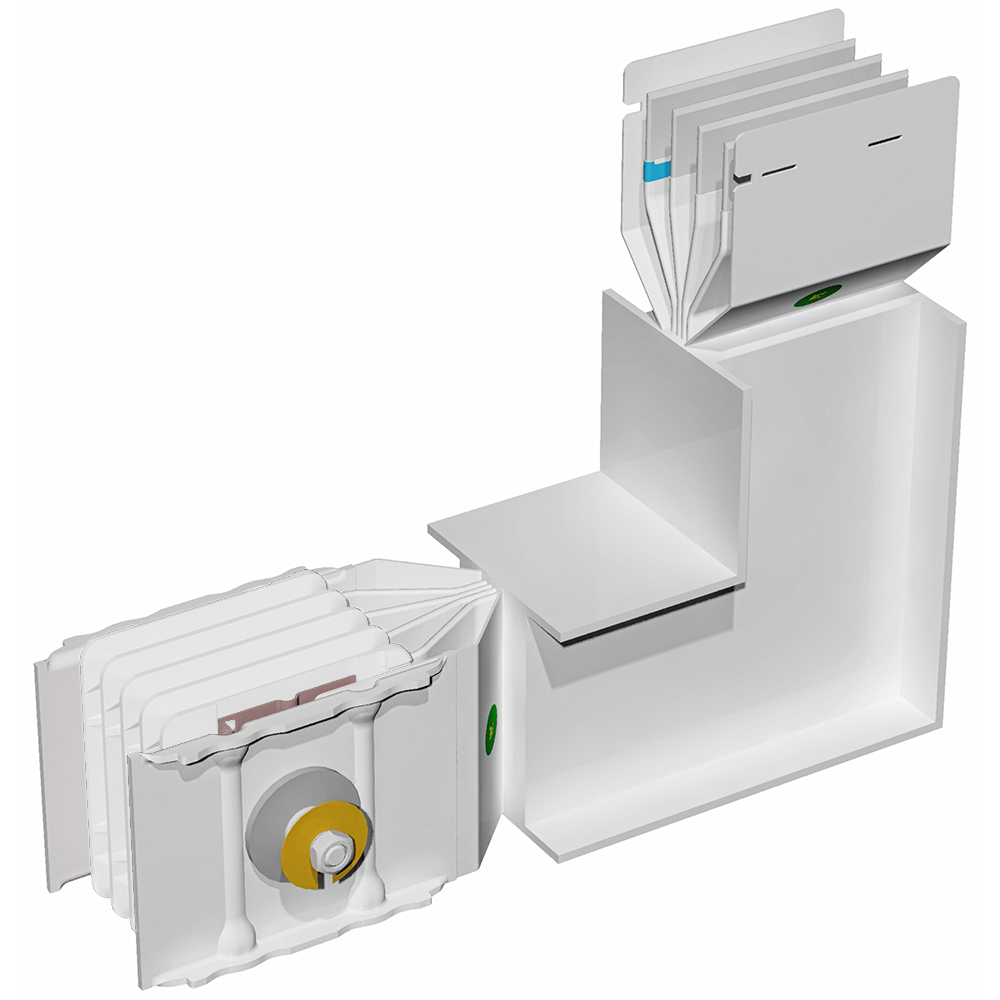

Vertical elbow XCP-S (Cu). Left Type 1 standard - In= 1250A

ZU-67280413P | 8033777398713
XCP-S - vertical elbow (Cu). Left Type 1 standard - In= 1250A
Technical Characteristics
Model Single
Rated current AC 50 Hz 1250 A
Number of poles 3
Number of conductors (without earthing) 4
Flexible No
Rated voltage AC 50 Hz (Min-Max) 0-1000 V
Number of tap-off units 0
Colour Grey
RAL-number 7035
Degree of protection (IP) IP55
Length 600 mm
Height 120 mm
Operating / setting temperature (Min-Max) -5-35 °C
Nominal voltage (Min-Max) 0-1000 V
Halogen free Yes
Documentation
1 documents
Technical Sheet
F03376EN/05 | PDF (2.8 MB) | EN
1 documents
Agreement
LGYEMCHLDF | FILE (696 KB) | EN
1 documents
Catalog Commercial Page
3201961 | PDF (29.5 MB) | EN
