XCP-S ZUCCHINI

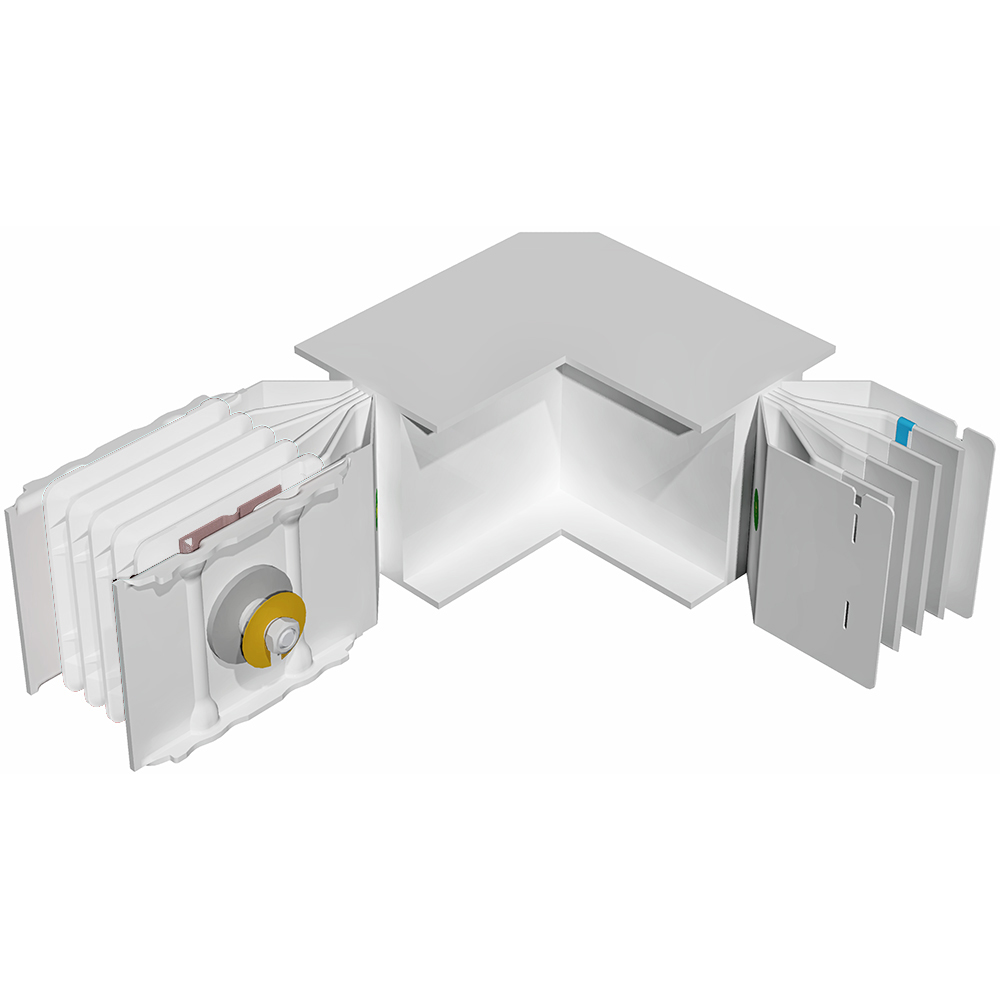

Horizontal elbow XCP-S (Cu). Right Type 1 standard - In= 800A

Name: Horizontal elbow XCP-S (Cu). Right Type 1 standard - In= 800A
Brand: BTicino
SKU: ZU-67280300P
Availability: InStock

ZU-67280300P | 8033777397907

XCP-S - horizontal elbow (Cu). Right Type 1 standard - In= 800A

Compare

Technical Characteristics

Model Single

Rated current AC 50 Hz 800 A

Number of poles 3

Number of conductors (without earthing) 4

Flexible No

Rated voltage AC 50 Hz (Min-Max) 0-1000 V

Number of tap-off units 0

Colour Grey

RAL-number 7035

Degree of protection (IP) IP55

Length 600 mm

Height 120 mm

Operating / setting temperature (Min-Max) -5-35 °C

Nominal voltage (Min-Max) 0-1000 V

Halogen free Yes

Documentation

Technical Sheet

F03376EN/05 | PDF (2.8 MB) | EN

Agreement

LGEOQGOXMM | FILE (1.1 MB) | EN

Catalog Commercial Page

3201961 | PDF (29.5 MB) | EN
