XCP-HP ZUCCHINI

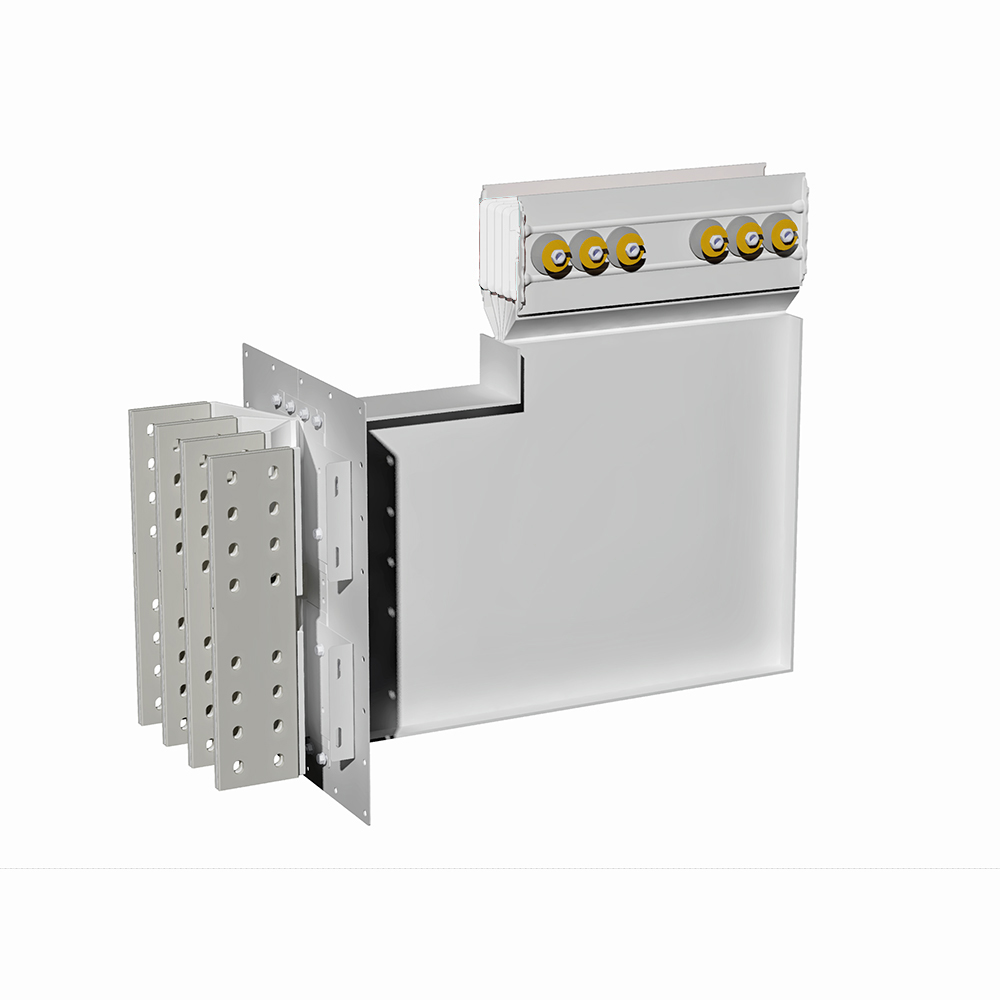

Exit bars element + vertical elbow XCP-HP (Cu). Type 3 - In= 4000A

ZU-66391426P | 8033777502875
XCP-HP - exit bars element + vertical elbow (Cu). Type 3 - In= 4000A
Technical Characteristics
Rated current AC 50 Hz 4000 A
Power supply position End
Model Double
Number of poles 4
Rated voltage AC 50 Hz (Min-Max) 0-1000 V
Colour Grey
Degree of protection (IP) IP55
Length 1600 mm
Height 125 mm
Nominal voltage (Min-Max) 0-1000 V
Halogen free Yes
Connection type Screwed terminal
Number of terminals 4
Cable nature for connection Flexible or rigid
