XCP-HP ZUCCHINI

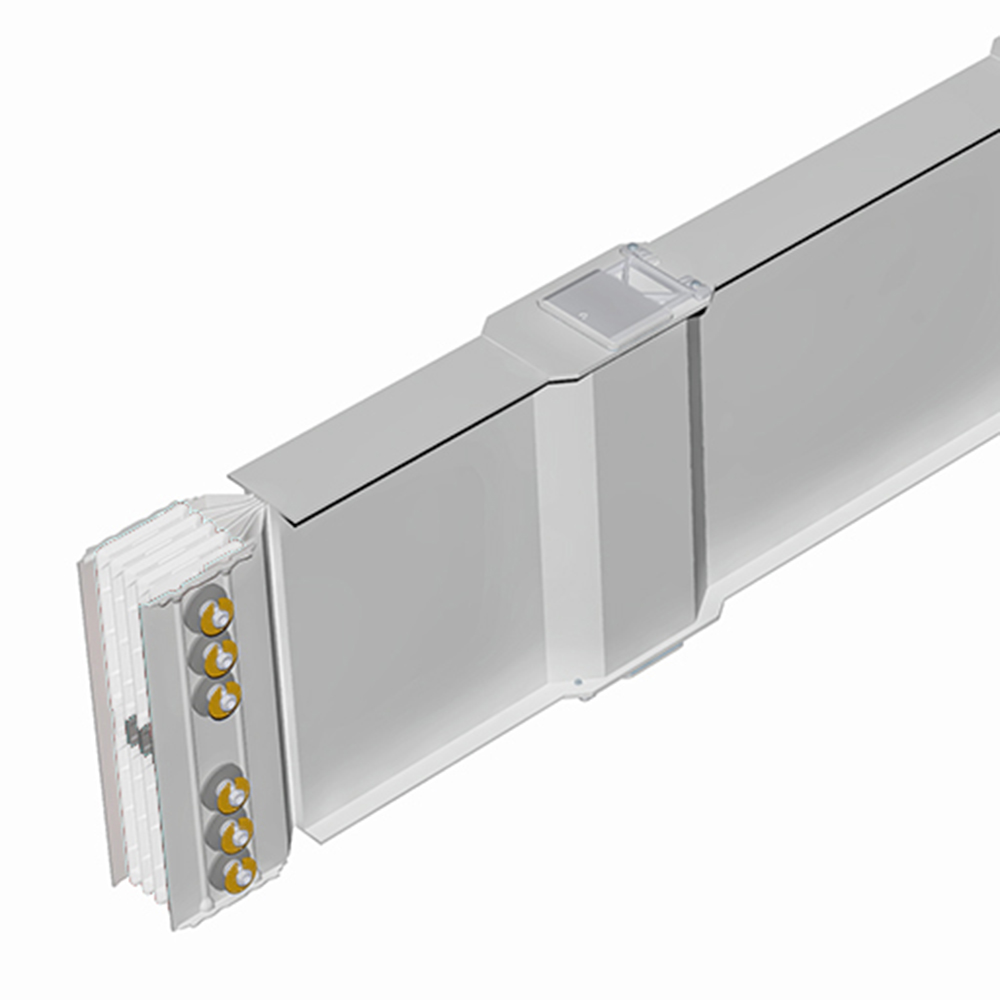

Straight element for distribution XCP-HP (Cu). N° of outlets 2+2 - L= 1.5-2m - In= 5000A

ZU-66390928P | 8033777509584
XCP-HP - straight element for distribution (Cu). N° of outlets 2+2 - Length 1.5-2m - In= 5000A
Technical Characteristics
Model Double
Rated current AC 50 Hz 5000 A
Number of poles 3
Number of conductors (without earthing) 4
Flexible No
Rated voltage AC 50 Hz (Min-Max) 0-1000 V
Number of tap-off units 4
Colour Grey
RAL-number 7035
Degree of protection (IP) IP55
Length 2000 mm
Height 125 mm
Operating / setting temperature (Min-Max) -5-55 °C
Nominal voltage (Min-Max) 0-1000 V
Halogen free Yes
