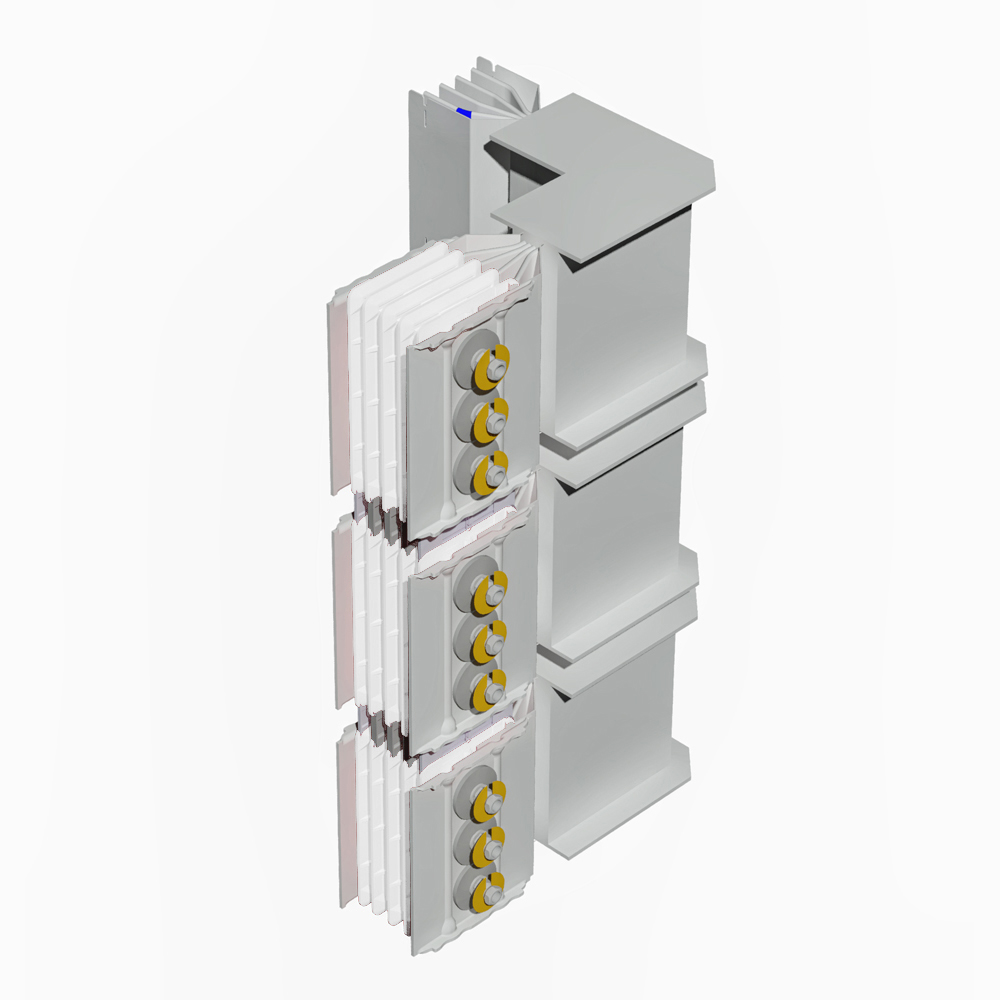

Horizontal elbow XCP-HP (Cu). Left Type 2 standard - In= 6300A
ZU-66390319P
|
8033777490707
Technical Characteristics
Model
Double
Rated current AC 50 Hz
6300 A
Number of poles
3
Number of conductors (without earthing)
4
Flexible
No
Rated voltage AC 50 Hz (Min-Max)
0-1000 V
Number of tap-off units
0
Colour
Grey
RAL-number
7035
Degree of protection (IP)
IP55
Length
600 mm
Height
125 mm
Operating / setting temperature (Min-Max)
-5-55 °C
Nominal voltage (Min-Max)
0-1000 V
Halogen free
Yes
Documentation
1 documents
Technical Sheet
F03376EN/05 | PDF (2.8 MB) | EN
1 documents
Agreement
LGFTRQMSUV | FILE (918 KB) | EN
1 documents
Catalog Commercial Page
3201961 | PDF (29.5 MB) | EN
