XCP-HP ZUCCHINI

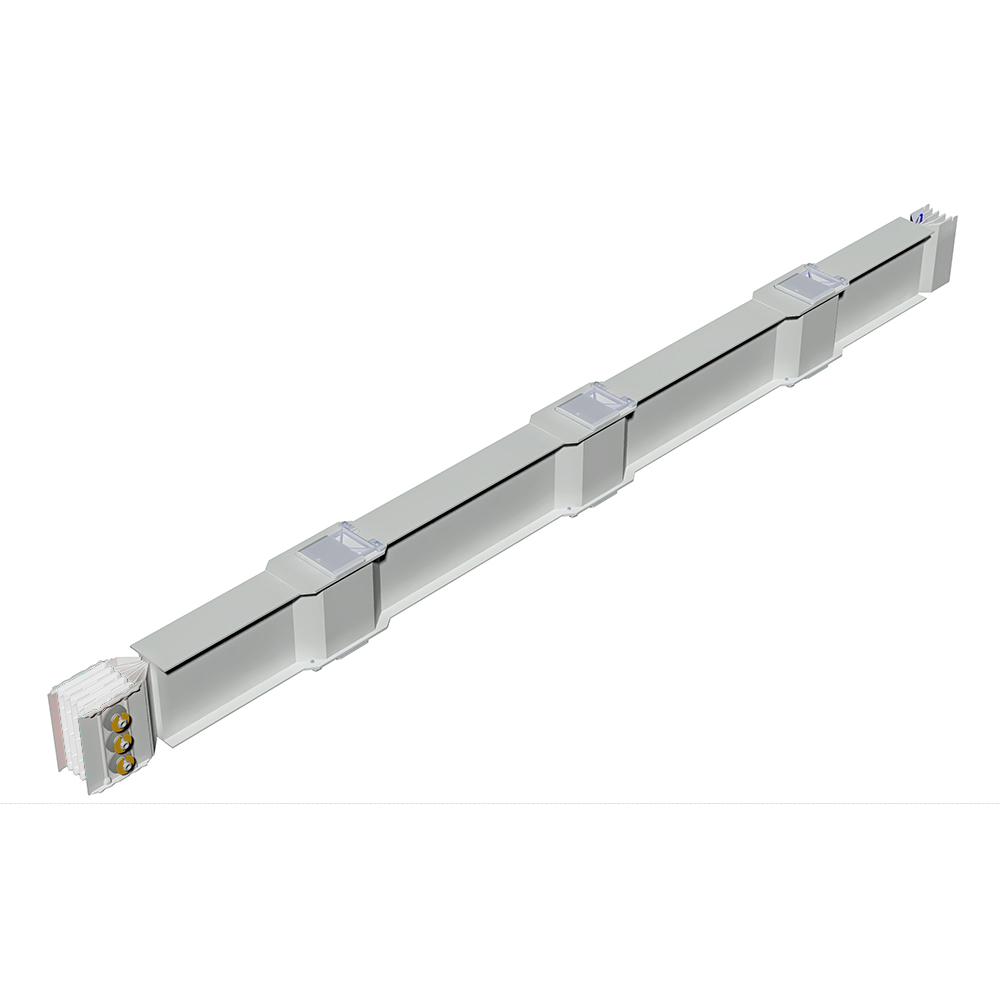

Straight element for distribution XCP-HP (Cu). N° of outlets 3+3 - L= 2.5-3m - In= 2000A

ZU-66280956P | 8033777509843
XCP-HP - straight element for distribution (Cu). N° of outlets 3+3 - Length 2.5-3m - In= 2000A
Technical Characteristics
Model Single
Rated current AC 50 Hz 2000 A
Number of poles 3
Number of conductors (without earthing) 4
Flexible No
Rated voltage AC 50 Hz (Min-Max) 0-1000 V
Number of tap-off units 4
Colour Grey
RAL-number 7035
Degree of protection (IP) IP55
Length 3000 mm
Height 125 mm
Operating / setting temperature (Min-Max) -5-55 °C
Nominal voltage (Min-Max) 0-1000 V
Halogen free Yes
Documentation
1 documents
Technical Sheet
F03376EN/05 | PDF (2.8 MB) | EN
1 documents
Agreement
LGYTYCIKYQ | FILE (488 KB) | EN
1 documents
Catalog Commercial Page
3201961 | PDF (29.5 MB) | EN
