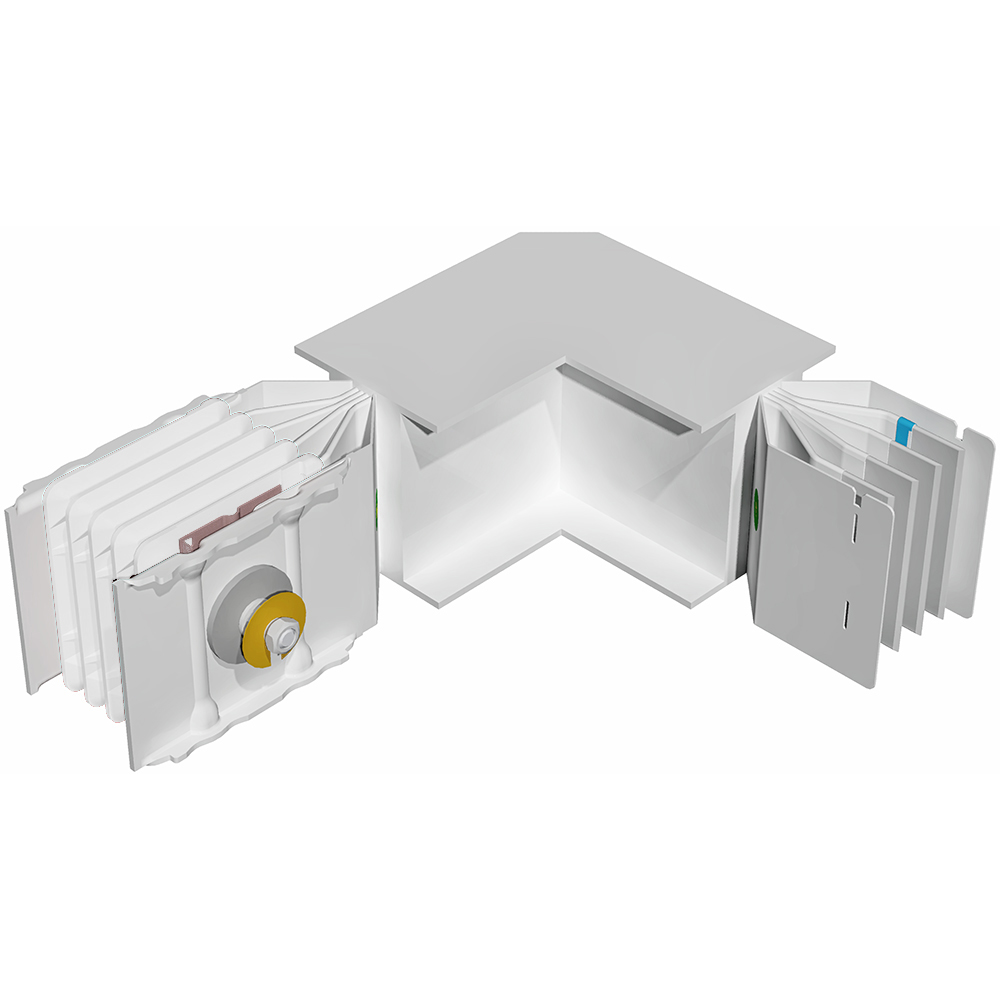

Horizontal elbow XCP-HP (Cu). Right Type 1 special - In= 1250A
ZU-66280323P
|
8033777491513
Technical Characteristics
Model
Single
Rated current AC 50 Hz
1250 A
Number of poles
3
Number of conductors (without earthing)
4
Flexible
No
Rated voltage AC 50 Hz (Min-Max)
0-1000 V
Number of tap-off units
0
Colour
Grey
RAL-number
7035
Degree of protection (IP)
IP55
Length
1100 mm
Height
125 mm
Operating / setting temperature (Min-Max)
-5-55 °C
Nominal voltage (Min-Max)
0-1000 V
Halogen free
Yes
