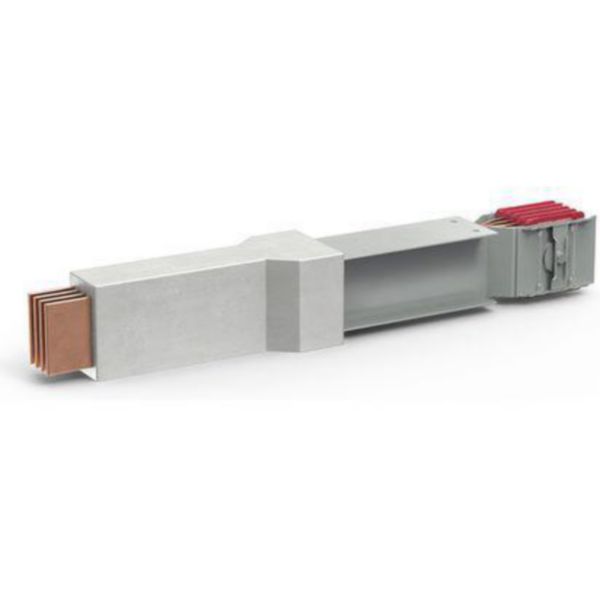

Junction element IP68-IP55 for RCP-SCP busbar In= 1000A right
ZU-65280031R
|
8033777420391
Technical Characteristics
Model
Single
Rated current AC 50 Hz
1000 A
Number of poles
3
Number of conductors (without earthing)
4
Flexible
No
Rated voltage AC 50 Hz (Min-Max)
0-1000 V
Number of tap-off units
0
Colour
Other
Degree of protection (IP)
IP68
Length
1000 mm
Operating / setting temperature (Min-Max)
-5-40 °C
Nominal voltage (Min-Max)
0-1000 V
Halogen free
Yes
Documentation
2 documents
Installation Guide
EXB25020-06-25 | PDF (7.1 MB) | EN
Technical Sheet
F04639EN/00 | PDF (2.3 MB) | EN
1 documents
Catalog Commercial Page
3200666 | PDF (3 MB) | EN
