XCP-S ZUCCHINI

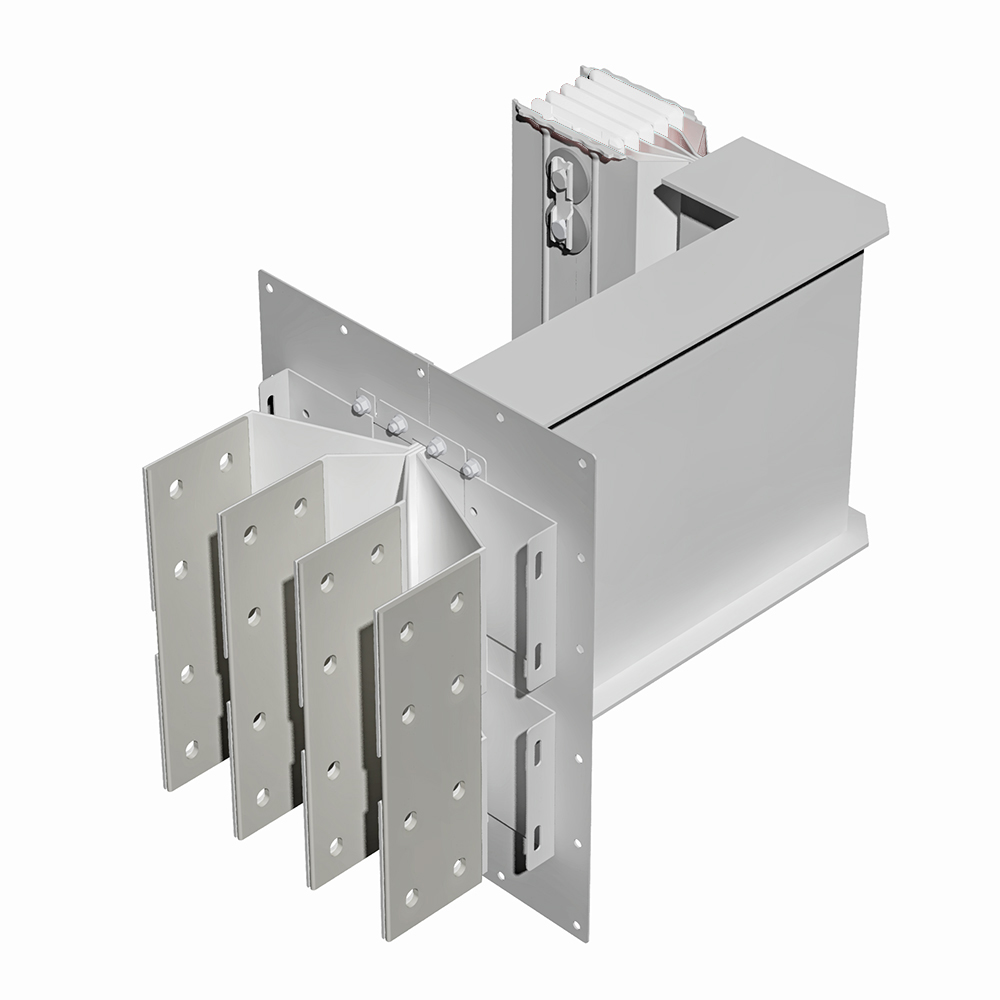

Exit bars element + horizontal elbow XCP-S (Al). Type 4 - In= 2500A

ZU-64391334P | 8033777455331
XCP-S - exit bars element + horizontal elbow (Al). Type 4 - In= 2500A
Technical Characteristics
Rated current AC 50 Hz 2500 A
Power supply position End
Model Double
Number of poles 4
Rated voltage AC 50 Hz (Min-Max) 0-1000 V
Colour Grey
Degree of protection (IP) IP55
Length 1300 mm
Height 120 mm
Nominal voltage (Min-Max) 0-1000 V
Halogen free Yes
Connection type Screwed terminal
Number of terminals 4
Cable nature for connection Flexible or rigid
