XCP-S ZUCCHINI

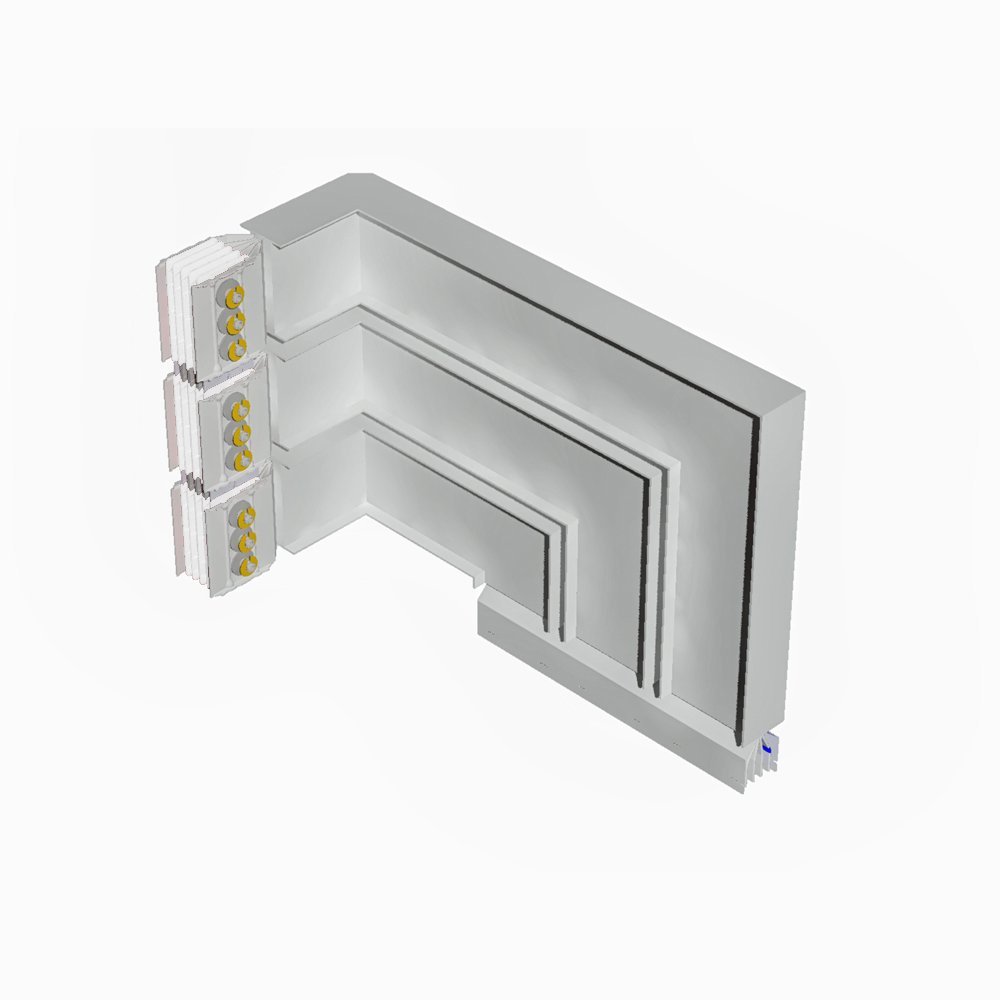

Double horizontal and vertical elbow XCP-S (Al). Type 1 - In= 5000A

ZU-64390608P | 8033777454204
XCP-S - double horizontal and vertical elbow (Al). Type 1 - In= 5000A
Technical Characteristics
Model Double
Rated current AC 50 Hz 5000 A
Number of poles 3
Number of conductors (without earthing) 4
Flexible No
Rated voltage AC 50 Hz (Min-Max) 0-1000 V
Number of tap-off units 0
Colour Grey
RAL-number 7035
Degree of protection (IP) IP55
Length 1800 mm
Height 120 mm
Operating / setting temperature (Min-Max) -5-35 °C
Nominal voltage (Min-Max) 0-1000 V
Halogen free Yes
Documentation
3 documents
PEP-EPD
LGRP-01268-V02.01-EN_LG-EU | PDF (898 KB) | EN
PEP-EPD
LGRP-02327-V01.01-EN_BT-EU | PDF (901 KB) | EN
Agreement
LGMIGPBDSZ | FILE (1 MB) | EN
1 documents
Catalog Commercial Page
3201961 | PDF (29.5 MB) | EN
