XCP-S ZUCCHINI

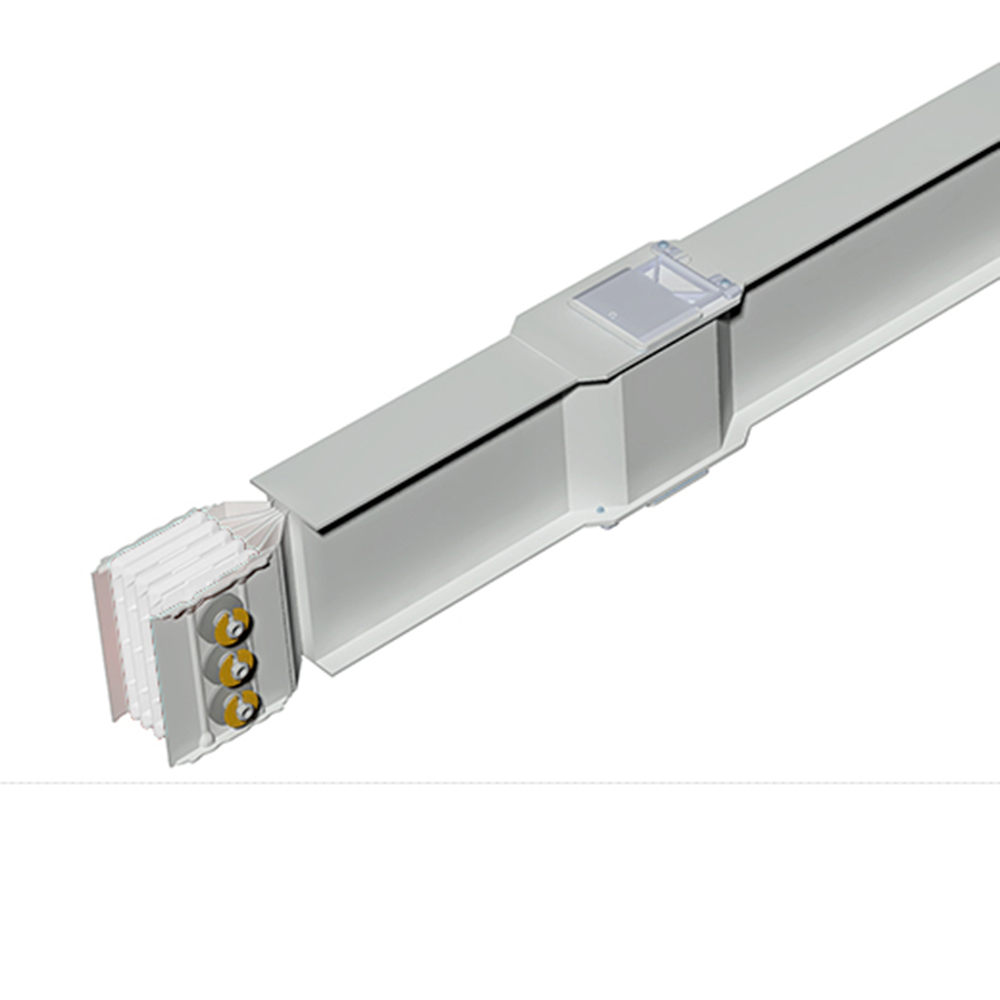

Straight element for distribution XCP-S (Al). N° of outlets 2+2 - L= 2-2.5m - In= 2000A

ZU-64280987P | 8033777450725
XCP-S - straight element for distribution (Al). N° of outlets 2+2 - Length 2-2.5m - In= 2000A
Technical Characteristics
Model Single
Rated current AC 50 Hz 2000 A
Number of poles 3
Number of conductors (without earthing) 4
Flexible No
Rated voltage AC 50 Hz (Min-Max) 0-1000 V
Number of tap-off units 4
Colour Grey
RAL-number 7035
Degree of protection (IP) IP55
Length 2500 mm
Height 120 mm
Operating / setting temperature (Min-Max) -5-35 °C
Nominal voltage (Min-Max) 0-1000 V
Halogen free Yes
Documentation
1 documents
Technical Sheet
F03376EN/05 | PDF (2.8 MB) | EN
3 documents
PEP-EPD
LGRP-01268-V02.01-EN_LG-EU | PDF (898 KB) | EN
PEP-EPD
LGRP-02327-V01.01-EN_BT-EU | PDF (901 KB) | EN
Agreement
LGKVLOAFBT | FILE (696 KB) | EN
1 documents
Catalog Commercial Page
3201961 | PDF (29.5 MB) | EN
