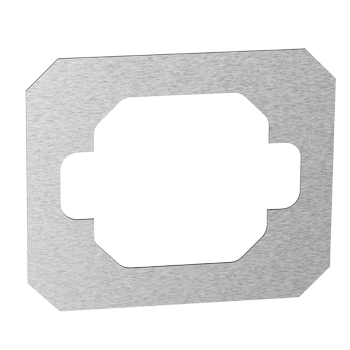

Accessorie for 2 module support frame - to be used on Indian standard installations
BT-KA4902
Description
This accessory helps with the installation of the 2-module support frame in case the box is bigger and it risk dropping it inside
Product characteristics
- Metal accessory to be used with K4702
- 2 modules, metal
Recommendations / Restrictions
- For internal use only.
Products benefits
Installation
- It helps the installation of K4702 when the box is larger
Advantages
- A simple accessory enabling the installation with 2 modules accessories
Technical Characteristics
Width
88 mm
Model
Other
Type of fastening
Other
Height
75 mm
Depth
3 mm
With nail
No
Mounting method of the module inserts
Front side
Mounting direction
Horizontal
Number of modules horizontal (module system)
2
Number of modules vertical (module system)
0
With built-in installation box
No
With screws
No
Suitable for mounting in round junction box 60 mm
No
Flush-mounted installation
No
Suitable for subfloor installation duct box
No
Suitable for wall duct
No
Suitable for mounting on DIN-rail 35 mm
No
Material
Metal
Material quality
Other
Surface protection
Untreated
