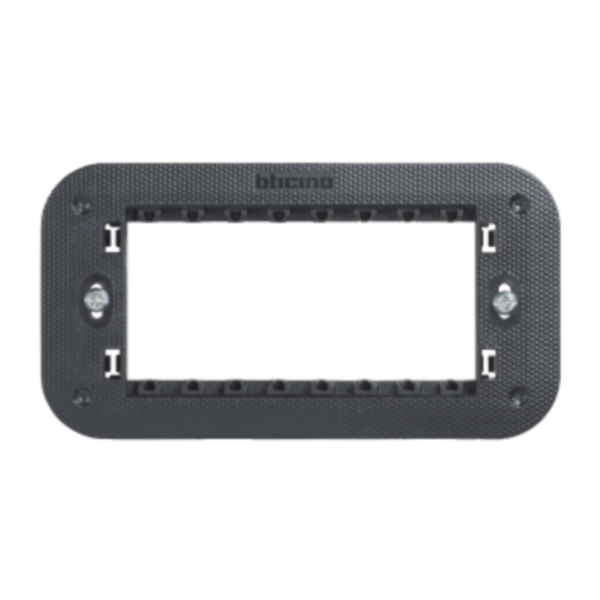

Name: 4-module support
Brand: BTicino
SKU: BT-K4704
Availability: InStock

Description

The Living Now support frame is the accessory on which the L.Now devices and the 4 modules cover-plate can be installed. Made of a new generation plastic material which increases its rigidity

Product characteristics

Maximum rigidity of the technopolymer that makes up this support makes it easy to install it on the wall
Possibility of installation at half a step to guarantee maximum installation flexibility
Equipped with protective valve to guarantee a perfect result without scratching or dirtying
4 modules, ultra-rigid black technopolymer
Equipped with 20 mm self-tapping screws

Recommendations / Restrictions

For internal use only.

Products benefits

Installation

The rigidity of the technopolymermakes easy te installation of this support frame on the wall. Possibility to install half step module.

Usage

The protective valve, suppliedwith the support frame, allows to protect the devices installed during construction phases while ensuring visibility at the back

Advantages

The maximum rigidity of the technopolymer, which makes up this support, makes it easy to install it on the wall
The protective valve is supplied to protect the devices during the construction phases while ensuring visibility at the back

Technical Characteristics

Model Other

Width 135.5 mm

Height 72 mm

Type of fastening Snap mounting

Depth 19 mm

With nail No

Mounting method of the module inserts Front side

Mounting direction Horizontal and vertical

Number of modules horizontal (module system) 4

Number of modules vertical (module system) 1

With built-in installation box No

With screws Yes

Suitable for mounting in round junction box 60 mm No

Flush-mounted installation Yes

Suitable for subfloor installation duct box No

Suitable for wall duct No

Suitable for mounting on DIN-rail 35 mm No

Material Plastic

Material quality Thermoplastic

Surface protection Untreated
