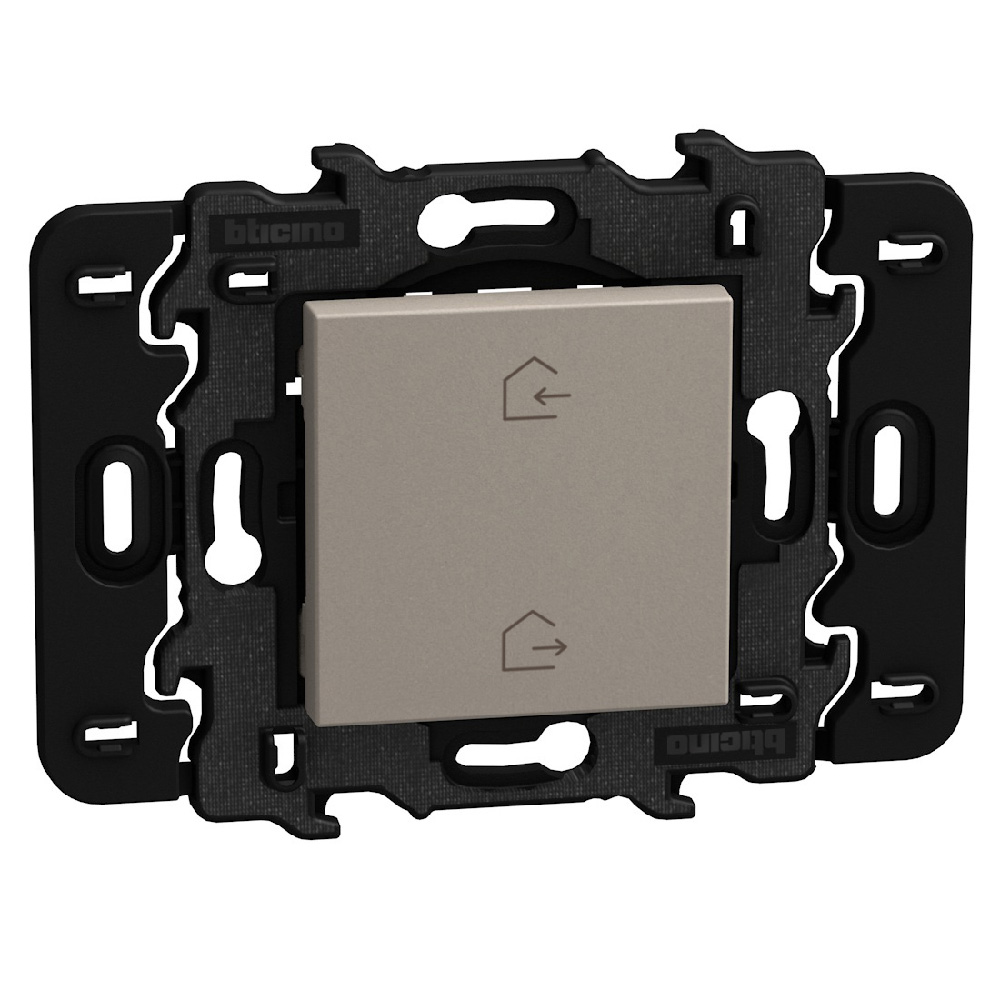

Wireless Home/Away scenario controls. No battery - 2 modules - stone
BT-YG4570CWG
|
8005543750179
Description
The Home/Away batteryless/wireless master switch allows you to add an extra Home/Away batteryless/wireless switch. In Home+ Control app, choose which lights, roller shutters, electrical appliances you wish to control via Home/Away scenarios
Product characteristics
- Predefined Home/Away scenarios which can be customised from the Home + Control app. Manage them with a single press on your battery less/wireless master switch
- Stand alone product. Without battery, without electrical supply
- Stone
Recommendations / Restrictions
- To add your Home/Away battery less/wireless master switch to your connected installation, you first need to purchase and install a Light Now with Netatmo connected starter pack, as well as one or more Light Now with Netatmo connected switches, power outlets or lighting micromodules
Products benefits
Installation
- Extra-slim, the Home/Away battery less/wireless master switch is attached to a wall with the adhesive pads provided. It can therefore be repositioned. Can also be screwed onto a flush-mounting box
Usage
- The Home/Away battery less/wireless master switch complements the one included in the Light Now with Netatmo connected starter pack. You can therefore place each of these switches at different entrances to your home
Advantages
- No need to walk the entire house to switch off all your devices. By pushng the "Away" button of the master swith or from the app, you can turn off all selected lights and appliances and close the shutters when you are leaving home.
- Easy and quick association by tapping the products together.
Technical Characteristics
Radio frequency
2400 MHz
Rolling code system
No
Code length (Bit)
128
Range
185 m
Number of commands
2
With manual radio transmitter
Yes
Flush-mounted radio transmitter
No
Surface mounted radio transmitter
Yes
With radio coding device
Yes
Degree of protection (IP)
IP20
Keyboard protection cover
No
Current supply
Other
Width
74 mm
Height
74 mm
Depth
13 mm
Built-in depth
0 mm
degree of impact strength (IK)
IK02
Operating / setting temperature (Min-Max)
5-45 °C
Storage temperature (Min-Max)
0-45 °C
Standby consumption
0 mA
Mandatory neutral
No
Stress test conformity (1000V)
No
Colour
Beige
RAL-number
7008
Halogen free
Yes
Antimicrobial treatment
No
Mounting method
Surface mounted
Contains Batteries and/or Accumulator
No
Connected object
Yes
Operating method
Zigbee
Application store for download
App Store, Google Play Store
Programming way
Smartphone apps
With voice command
Yes
Programmable
Yes
Interoperable connection Protocol
Yes
Connectable by Internet box
Yes
Compatible voice assistants
Google Assistant, Amazon Alexa, Apple Siri
Application name
Home + Control
Product use function
Lighting management
Documentation
2 documents
Technical Sheet
IDP001810 | PDF (3.2 MB) | EN
Instruction Use
LE14436AA | PDF (2.2 MB) | IT · EN · FR · DE · ES · NL · PT · AR
5 documents
Brochure
BRO-LHNOW-2M | PDF (10.3 MB) | EN
Brochure
BRO-LHNOW-3M | PDF (13.1 MB) | EN
B2B Documents
CAT-LHNOW-2M | PDF (25.2 MB) | EN
B2B Documents
CAT-LHNOW-3M | PDF (21.5 MB) | EN
B2B Documents
PRE-LHNOW | PDF (2.4 MB) | EN
