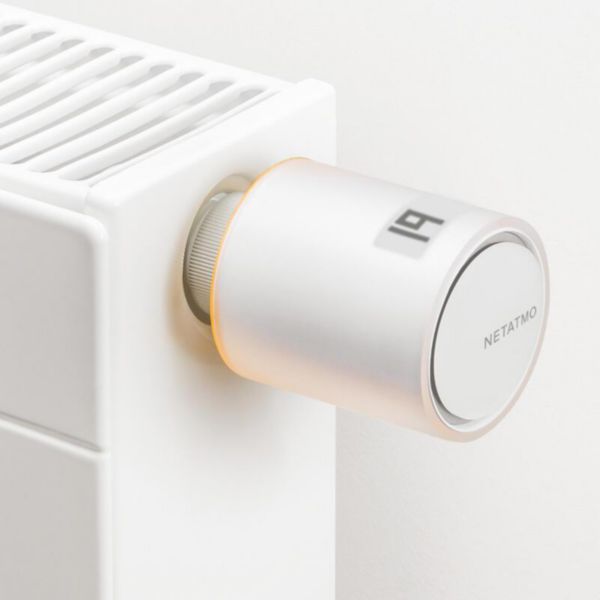

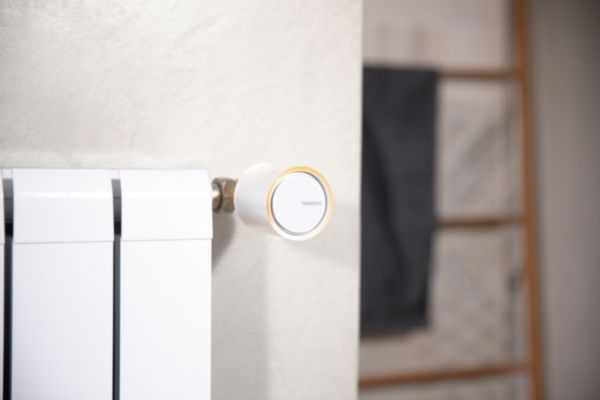

Smart radiator valve
NA-NAV-PRO
|
3700730502689
Description
Set the temperature of any room at any time
Product characteristics
- 1 Smart Radiator Valve6 radiator adaptors4 colour adhesives2 AA batteries1 installation guide1 adaptor selection guide
- Compatible with Amazon Alexa, Google Assistant, HomeKit
- Compatible with most Hot Water Radiators
Recommendations / Restrictions
- The valve only works with a Netatmo Thermostat or Starter Pack - Smart Radiator Valves, no standalone use
Products benefits
Installation
- Less than 20 min to install the product
Usage
- Room-by-room comfort
Advantages
- Room-by-room heating adapted to your routine.
- Smart features to save more energy.
- Control your radiators from your smartphone.
Technical Characteristics
Adjustment element
Other
Temperature sensor model
Other
Medium
Air
Suitable for immersion tube
Yes
Connection size insert probe
Other
Suitable for radiator
Yes
With anti-theft security
No
Suitable for anti-theft protection
No
Blocking/limiting adjustment range
Yes
Mechanically lockable at zero (off) position
No
Response time
1 s
Suitable for heating
Yes
Suitable for cooling
No
Suitable for tap water
Yes
Frost protected
No
Remote operation
Yes
Max. length of cable/capillary tube to remote control element
0 m
Length of cable/capillary tube to remote sensor
0 m
Diameter remote sensor
0 mm
Length remote sensor
0 mm
Operation by Bluetooth
No
Operation by app
Yes
With web interface
Yes
Width
58 mm
Height
58 mm
Depth
80 mm
degree of impact strength (IK)
Not applicable
Degree of protection (IP)
IP30
Operating / setting temperature (Min-Max)
0-50 °C
Storage temperature (Min-Max)
0-50 °C
Voltage type
AC/DC
Nominal voltage (Min-Max)
2.5-3 V
Supply current (Min-Max)
0.00001-0.6 A
Standby consumption
0.01 mA
Colour
White
Halogen free
Yes
Contains Batteries and/or Accumulator
Yes
Addressable
No
IEC code (Pack1)
LR6
Battery ou Accumulator (Pack1)
Battery (not rechargeable)
Element Composition (Pack1)
Alkaline
Number of Pack 1
2
Number of Single Element (Pack1)
1
Single Element weight (Pack1)
46 g
Pack1 Location
Included in packaging
Regulation Type (Pack1)
P : Portable (Standard format)
Connected object
Yes
Operating method
RF
Application store for download
App Store, Google Play Store
Programming way
Smartphone apps
With voice command
Yes
Programmable
No
Interoperable connection Protocol
No
Connectable by Internet box
No
Compatible voice assistants
Google Assistant, Apple Siri, Amazon Alexa
Application name
Home + Control
Product use function
Thermal comfort management
Software Update Duration (years)
3
Documentation
1 documents
Instruction Use
QSG2-NAV-V2-WEB | PDF (635 KB) | DE · EN · ES · FR · IT · PT
1 documents
PEP-EPD
LGRP-01537-V01.01-EN | PDF (638 KB) | EN
