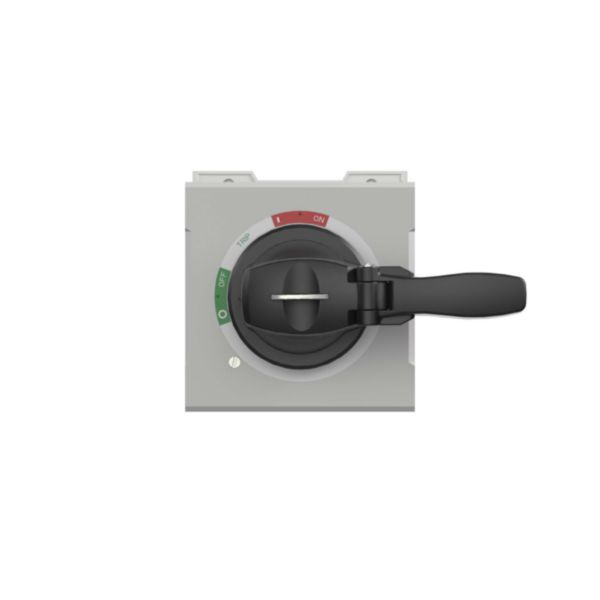

Vary-depth rotary handle for DPX3
LG-424973
|
3414973041453
Description
DPX³ 400 1000V~, auxiliaries and equipment for MCCBs
Product characteristics
- Vary depth rotary handle for DPX³ 400 1000V~

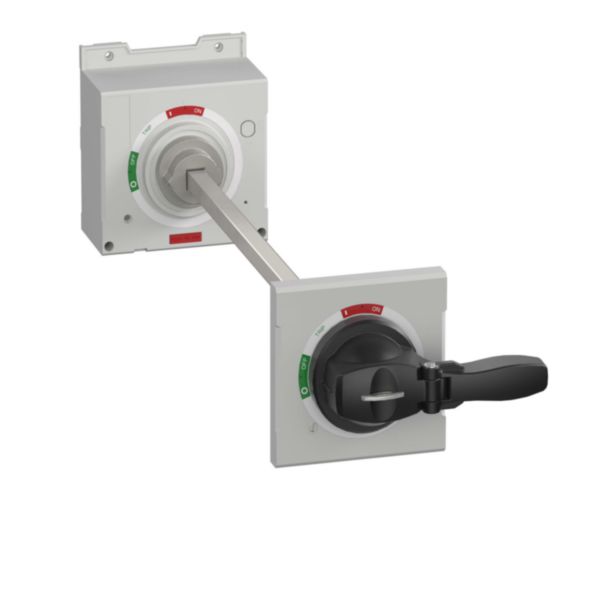

- Includes: extention shaft, handle mechanism, handle assembly with front plate guaranteed in the same position independently from the circuit breaker installation way (vertical or horizontal)
- The 3 possible positions are clearly indicated: I (ON), O (OFF), Tripped
- The access to the trip unit settings is guaranteed while the handle is assembled
Recommendations / Restrictions
- When installed, replaces the circuit breaker front cover
Products benefits
Usage
- Allows the access to the Trip button
Technical Characteristics
With restart blockage
No
With key lock
Yes
Padlock locking
Yes
Colour
Grey
Suitable for emergency stop
Yes
With extension shaft
Yes
Suitable for power circuit breaker
Yes
Suitable for switch disconnector
Yes
Degree of protection (NEMA)
4X, 12
Width
142 mm
Height
110 mm
Depth
132 mm
Operating / setting temperature (Min-Max)
-25-70 °C
Storage temperature (Min-Max)
-25-85 °C
Halogen free
Yes
Documentation
1 documents
Instruction Use
LE15753AA | PDF (1.5 MB)
