New Legrand

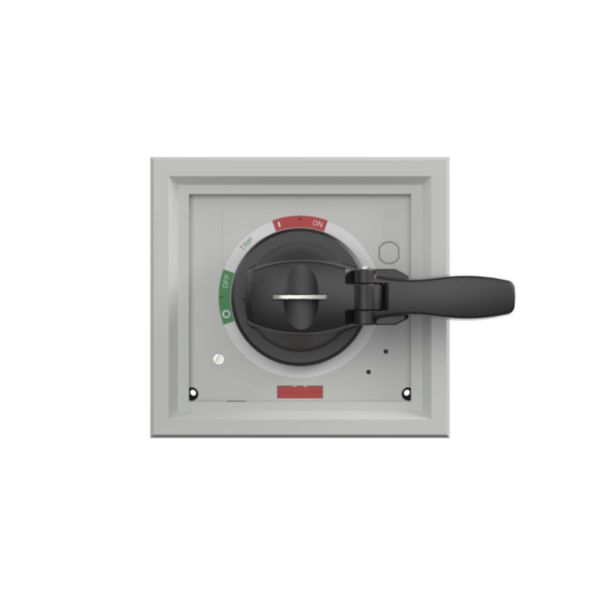

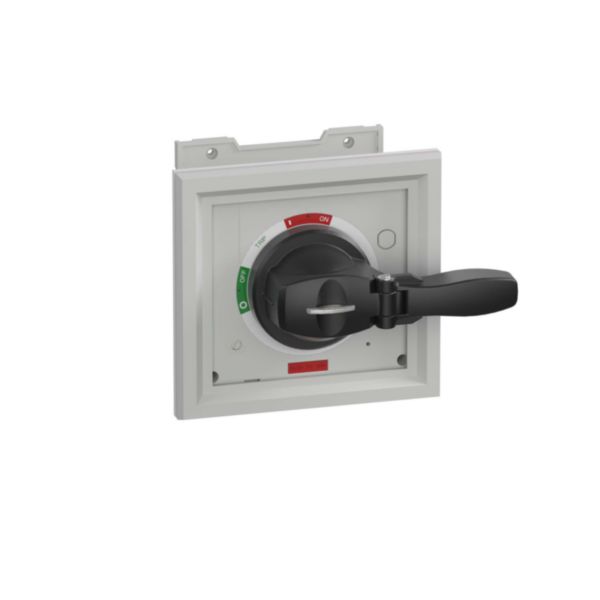

Direct rotary handle for DPX3

LG-424972 | 3414973041460
Direct rotary handle for DPX3 specific for photovoltaic applications
Description

DPX³ 400 1000V~, auxiliaries and equipment for MCCBs

Product characteristics
  • Direct rotary handle for DPX³ 400 1000V~
  • The 3 possible positions are clearly indicated: I (ON), O (OFF), Tripped
  • The access to the trip unit settings is guaranteed while the handle is assembled
  • Keylock is included
Recommendations / Restrictions
  • When installed, replaces the circuit breaker front cover
Products benefits
Usage
  • Allows the access to the Trip button
Technical Characteristics
With restart blockage No
With key lock Yes
Padlock locking Yes
Colour Grey
Suitable for emergency stop Yes
With extension shaft No
Suitable for power circuit breaker Yes
Suitable for switch disconnector Yes
Degree of protection (NEMA) 4X, 12
Width 178 mm
Height 178 mm
Depth 132 mm
Operating / setting temperature (Min-Max) -25-70 °C
Storage temperature (Min-Max) -25-85 °C
Halogen free Yes
Documentation
1 documents
Instruction Use
LE15752AA | PDF (1.5 MB)
