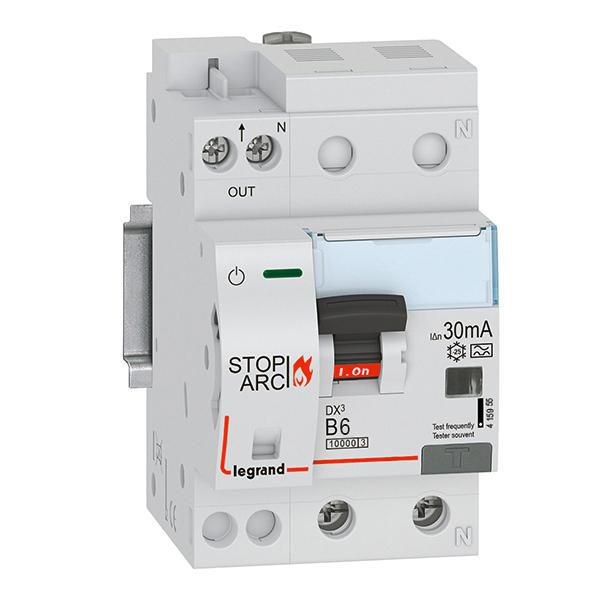

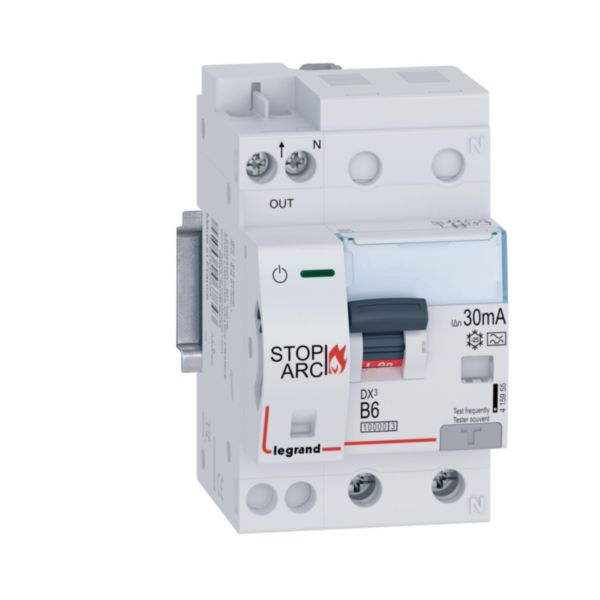

BTDIN Stop Arc with Rcbo 1P+N In= 6A, Idn 0,03A, Vn= 230/240Vac, Icn 10kA, curve B, type A
LG-415955
|
3414971759428
Description
Arc fault detection RCBO to protect wiring installations against overloads, short-circuits, arc faults and persons against indirect contacts and electric shock hazard. Can also be used to control and isolate the installation.
Product characteristics
- Breaking capacity 10000A according to IEC 61009-1 standard for household installations. Tripping threshold in case of short-circuit between 18A and 30A (B curve between 3 In and 5 In). Detection of type A leakage current. Sensitivity 30 mA
- Line connection on bottom side by screw terminals, with dedicated prong or fork busbar, 16 mm² solid copper cables or 10 mm² stranded copper cables with lugs.Load connection on top side by screw terminals, with 16 mm² solid copper cables or 10 mm² stranded copper cables with lugs.
- Protected against solid bodies larger than 12,5mm ("fingerproof"): IP20 according to IEC/EN 60529 standard.Maximum level of limitation of the let through energy (energy limitation class 3 according to IEC 61009-1 standard).
- Can be equipped with Legrand DX3 auxiliaries : auxiliary contacts, shunt trip, overvoltage release, power overvoltage protection (POP).
- This device complies with substance-restriction requirements and has been designed in an environmentally conscious process.
Recommendations / Restrictions
- Recommended for 2P+E power sockets circuit protection in sleeping accommodation, premises constituting a fire risk due to the types of material processed or stored therein (barns, woodworking shops, paper mills, etc), premises constructed with combustible building materials (wooden buildings and houses), structures where fire spreads easily (tower blocks) and premises where irreplaceable goods might be in danger. In residential installations, they should ideally be installed on the bedroom and living room circuits. In the case of total refurbishment, they should play an active part in making the installation safe.
Products benefits
Installation

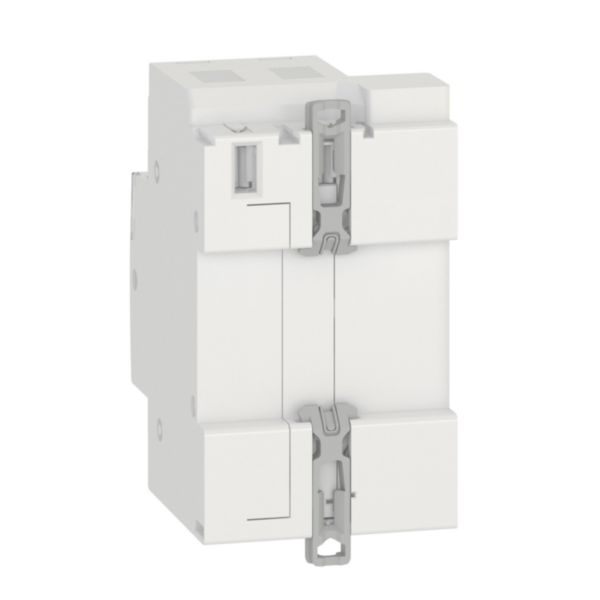

- Fitted with two DIN rail clamps, one top side and one bottom side, allowing an independent removal of this product when the prong busbar supplying the row is still in place.
Usage
- Fitted with a LED indicator allowing the identification of the status of the breaker. Mechanical indicator for identification of tripping due to arc fault.Fitted with a label holder allowing a clear, visible and convenient identification of the circuit.On and OFF indication printed on the handle respectively on red and green backgrounds for an easy identification of the status of the MCB.
Advantages
- Daily automatic test of the arc fault detection function.
Technical Characteristics
Number of poles (total)
2
Rated voltage
230 V
Rated current
6 A
Rated fault current
0.03 A
Leakage current type
A
Current limiting class
3
Rated short-circuit breaking capacity according to EN 61009
10 kA
Release characteristic
B
Concurrently switching neutral conductor
Yes
Overvoltage category
3
Pollution degree
2
Width in number of modular spacings
3
Additional equipment attached at delivery
Other
Control voltage type auxiliary equipment
AC
Degree of protection (IP)
IP20
