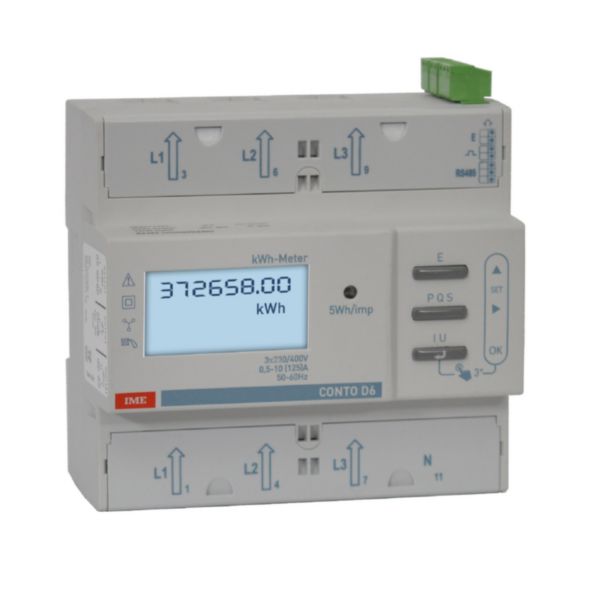

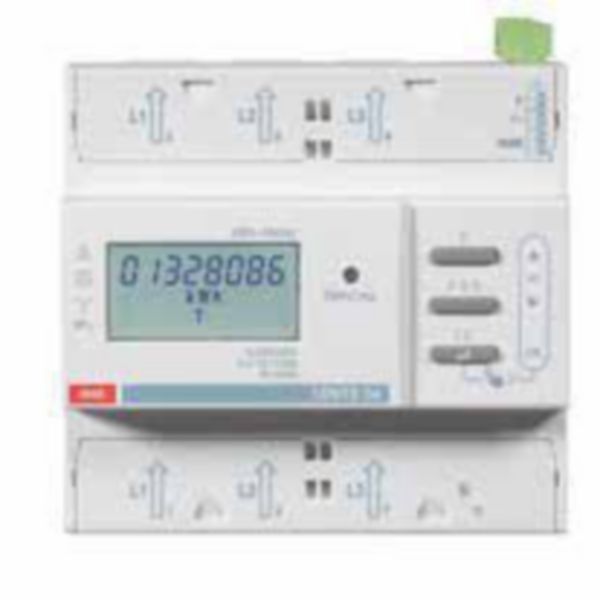

Energy meter Conto D6-Pd
IM-CE6DT1252
|
8032826210198
Technical Characteristics
Type of meter
Electronic
Nominal current (In)
10 A
Max. current (Imax)
125 A
Nominal voltage (Un) N-L (Min-Max)
197-276 V
Nominal voltage (Un) L-L (Min-Max)
340-480 V
Frequency (Min-Max)
47-63 Hz
Accuracy class
B
Pole type
Four conductor
Model
Direct measurement
Energy type
Effective power and reactive power
Suitable for
Purchase
Tariff type
Two-tariff
Tariff control
External
Measurement type load profile
No
Escapement mechanism
Yes
Calibrated
Yes
Approval
Domestic
Pulse output
Optical
Pulse type
S0
Pulse rate (Min-Max)
0.001-100 Imp/kWh (kvarh)
Type of indication
Digital
Mounting method
DRA (DIN-rail adaptor)
Width in number of modular spacings
6
Width
107.2 mm
Depth
65.6 mm
Height
111.5 mm
Type of interface
None
With lock code
Yes
Number of positions total (counter)
8
Degree of protection (IP)
IP54
Operating / setting temperature (Min-Max)
-25-55 °C
Storage temperature (Min-Max)
-25-70 °C
Voltage type
AC
Terminal marking indication
Yes
Colour
Grey
RAL-number
7035
Halogen free
Yes
Prewired
No
Connection type
Screwed terminal
Terminals capacity (Min-Max)
4-50 mm²
Label space/information surface
No
Connected object
No
