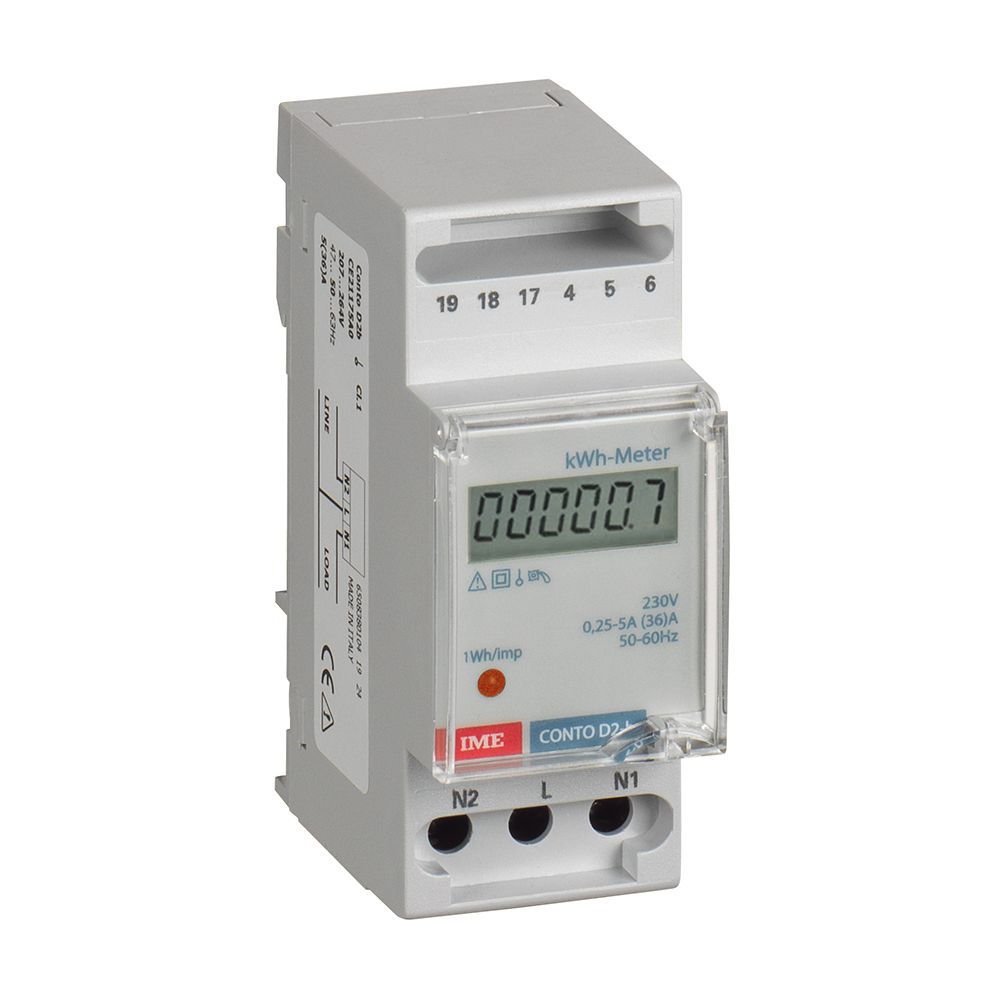

Energy meter Conto D2-b
IM-CE21175A0
|
8032826028595
Technical Characteristics
Type of meter
Electronic
Nominal current (In)
5 A
Max. current (Imax)
63 A
Nominal voltage (Un) N-L (Min-Max)
207-253 V
Frequency (Min-Max)
47-63 Hz
Accuracy class
B
Pole type
Single phase
Model
Direct measurement
Energy type
Effective power
Suitable for
Purchase
Tariff type
One-tariff
Measurement type load profile
No
Escapement mechanism
Yes
Calibrated
Yes
Approval
Domestic
Pulse output
None
Type of indication
Digital
Mounting method
Front mounting
Width in number of modular spacings
2
Width
35 mm
Depth
65.6 mm
Height
89 mm
Type of interface
None
With lock code
No
Number of positions total (counter)
7
Degree of protection (IP)
IP52
degree of impact strength (IK)
IK07
Operating / setting temperature (Min-Max)
-5-55 °C
Storage temperature (Min-Max)
-25-70 °C
Voltage type
AC
Terminal marking indication
Yes
Colour
Grey
RAL-number
7035
Halogen free
Yes
Prewired
No
Connection type
Screwed terminal
Terminals capacity (Min-Max)
1-16 mm²
Connected object
No
