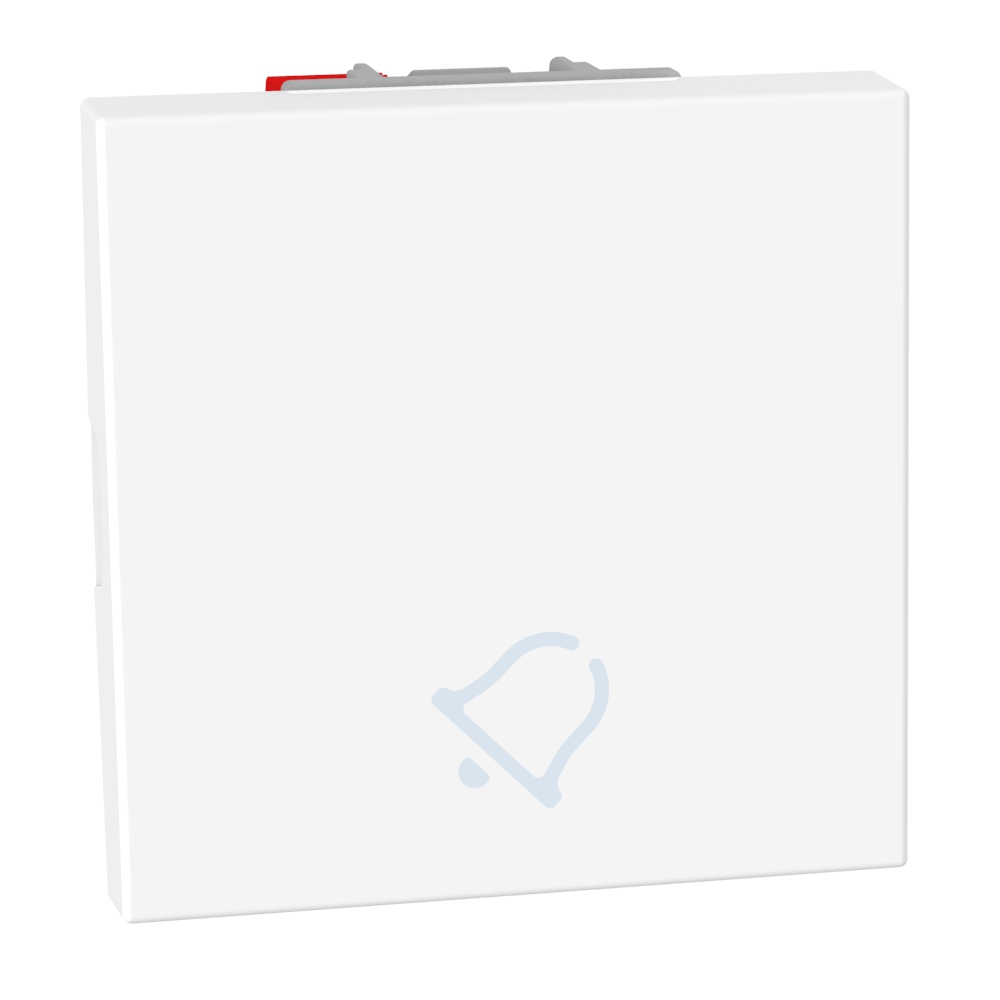

Rocker pushbutton 1P (NO) 10 A 250 V with BELL symbol - automatic terminals - 2 modules
BT-YW4005DM2A
|
8005543771266
Description
push 1P NO 10A bell 2m white, rocker, lightable
Product characteristics
- pushbutton, automatic terminal
- 1P 10 AX 250 Va.c.
- 2 modules
- Color White
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
- Indoor use only
Products benefits
Installation
- Easy to install and remove
Usage
- Allows to have a pushbutton with the cover with the lamp graphic already integrated
Advantages
- Hight technical performance
Technical Characteristics
Assembly arrangement
Basic element
Model
Single push button
Method of operation
Push button
Operating principle
Electromechanical
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
Number of revolving contacts
0
Contactless type
No
Number of rockers
1
Number of modules (module system)
2
Number of poles
1
Nominal voltage
250 V
Rated current
10 A
With lighting
Yes
With light source
No
With complemantary luminous signal
No
Monitoring contact
No
Connection type
Push-in clamp
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Antimicrobial treatment
No
Surface protection
Lacquered
Surface finishing
Matt
Colour
White
RAL-number (similar)
9003
Transparent
Yes
Label space/information surface
No
Imprint
Symbol "bell"
Suitable for degree of protection (IP)
IP20
degree of impact strength (IK)
IK04
Device width
45 mm
Device height
45 mm
Device depth
41 mm
Min. depth of built-in installation box
40 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Built-in depth
30 mm
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Voltage type
AC
Frequency (Min-Max)
50-60 Hz
Mandatory neutral
No
Terminal marking indication
No
Terminals capacity (Min-Max)
1.5-2.5 mm²
Cable nature for connection
Flexible or rigid
Cable section (Min-Max)
1.5-2.5 mm²
