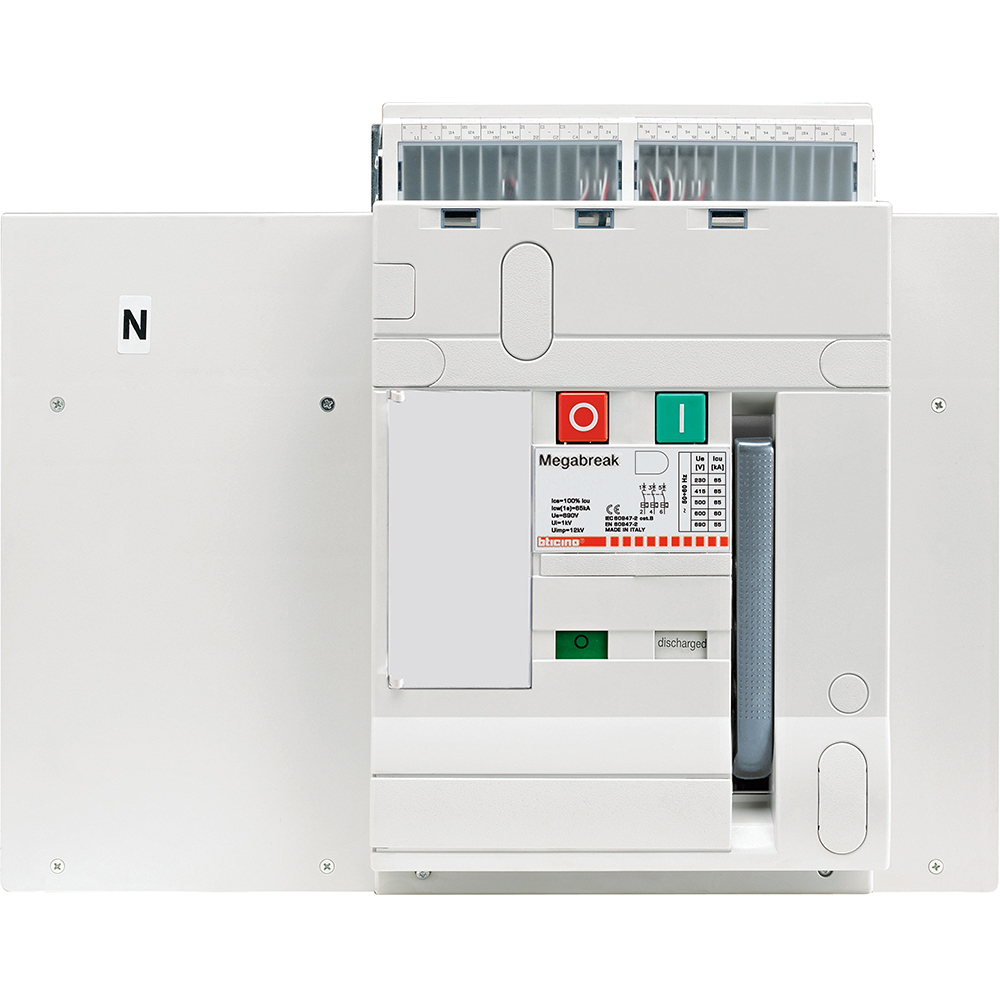

fixed versiond version air disconnector 4P - In= 3200A - Frame 2
BT-T804M3200
|
8012199965550
Technical Characteristics
Version as main switch
Yes
Version as maintenance-/service switch
Yes
Version as safety switch
Yes
Version as emergency stop installation
Yes
Max. rated operation voltage Ue AC
690 V
Rated permanent current Iu
3200 A
Rated operation power at AC-23, 400 V
1280 kW
Conditioned rated short-circuit current Iq
85 kA
Number of poles
4
Number of auxiliary contacts as normally closed contact
4
Number of auxiliary contacts as normally open contact
4
Number of auxiliary contacts as change-over contact
4
Motor drive optional
Yes
Motor drive integrated
Yes
Voltage release optional
Yes
Device construction
Built-in device fixed built-in technique
Suitable for floor mounting
Yes
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
No
Type of control element
Push button
Interlockable
Yes
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP), front side
IP30
Documentation
3 documents
Technical Sheet
IDP000160_ENG | PDF (2.8 MB) | EN
Instruction Use
Y2763C | PDF (47.1 MB) | IT · EN
Instruction Use
Y3142G | PDF (74.8 MB) | IT · EN
