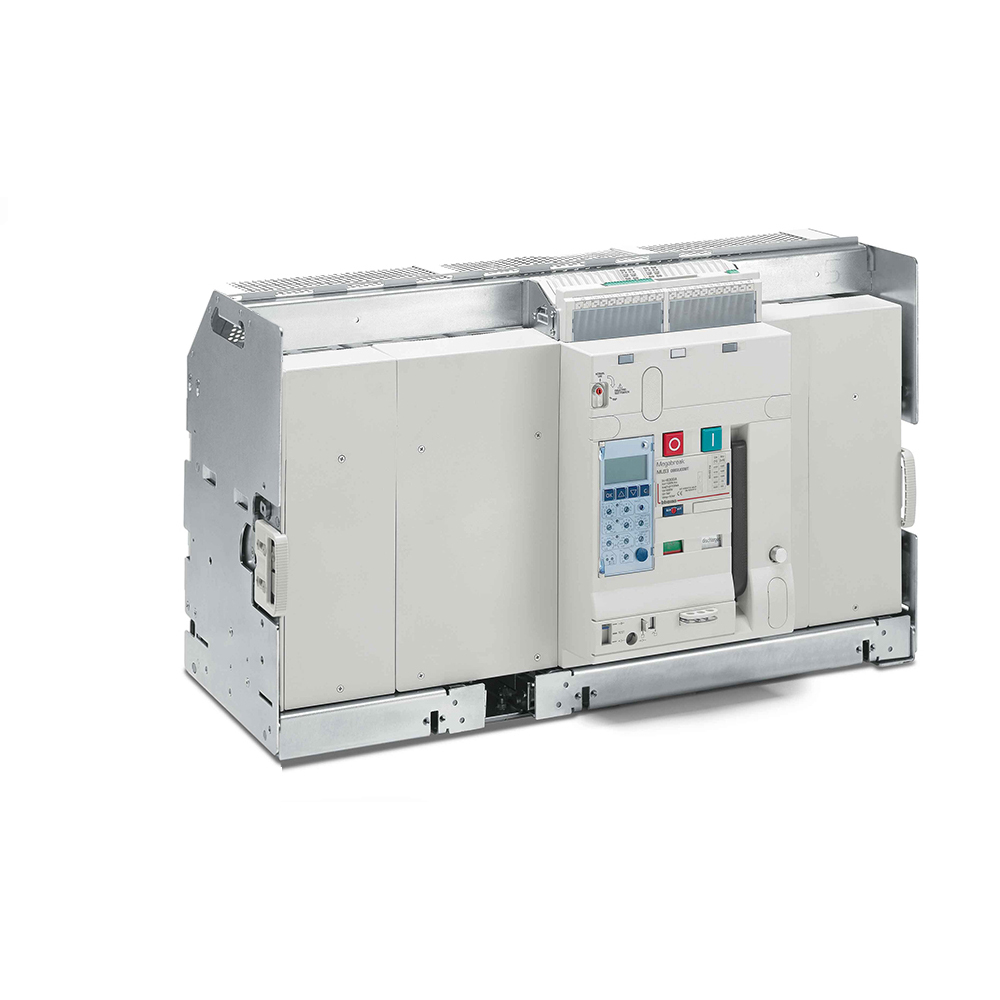

  • Draw-out version air circuit breaker 3P - In= 5000A - Icu= 100kA - Frame 3
Obsolete MEGABREAK BTicino

Draw-out version air circuit breaker 3P - In= 5000A - Icu= 100kA - Frame 3

BT-T803LE5000 | 8005543457764
Draw-out version air circuit breaker 3P - In= 5000A - Icu= 100kA - Frame 3
Technical Characteristics
Rated permanent current Iu 5000 A
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz 100 kA
Overload release current setting (Min-Max) 2000-5000 A
Adjustment range short-term delayed short-circuit release (Min-Max) 3000-50000 A
Adjustment range undelayed short-circuit release (Min-Max) 10000-100000 A
Device construction Built-in device slide-in technique (withdrawable)
Integrated earth fault protection Yes
Suitable for DIN rail (top hat rail) mounting No
Number of auxiliary contacts as normally closed contact 4
Number of auxiliary contacts as change-over contact 4
With switched-off indicator Yes
With integrated under voltage release Yes
Number of poles 3
Type of control element Push button
Motor drive integrated Yes
Motor drive optional Yes
Degree of protection (IP) IP30
Documentation
3 documents
Technical Sheet
IDP000161_ENG | PDF (1.6 MB) | EN
Instruction Use
Y2055G | PDF (11.2 MB) | IT · EN
Instruction Use
Y3142G | PDF (74.8 MB) | IT · EN
