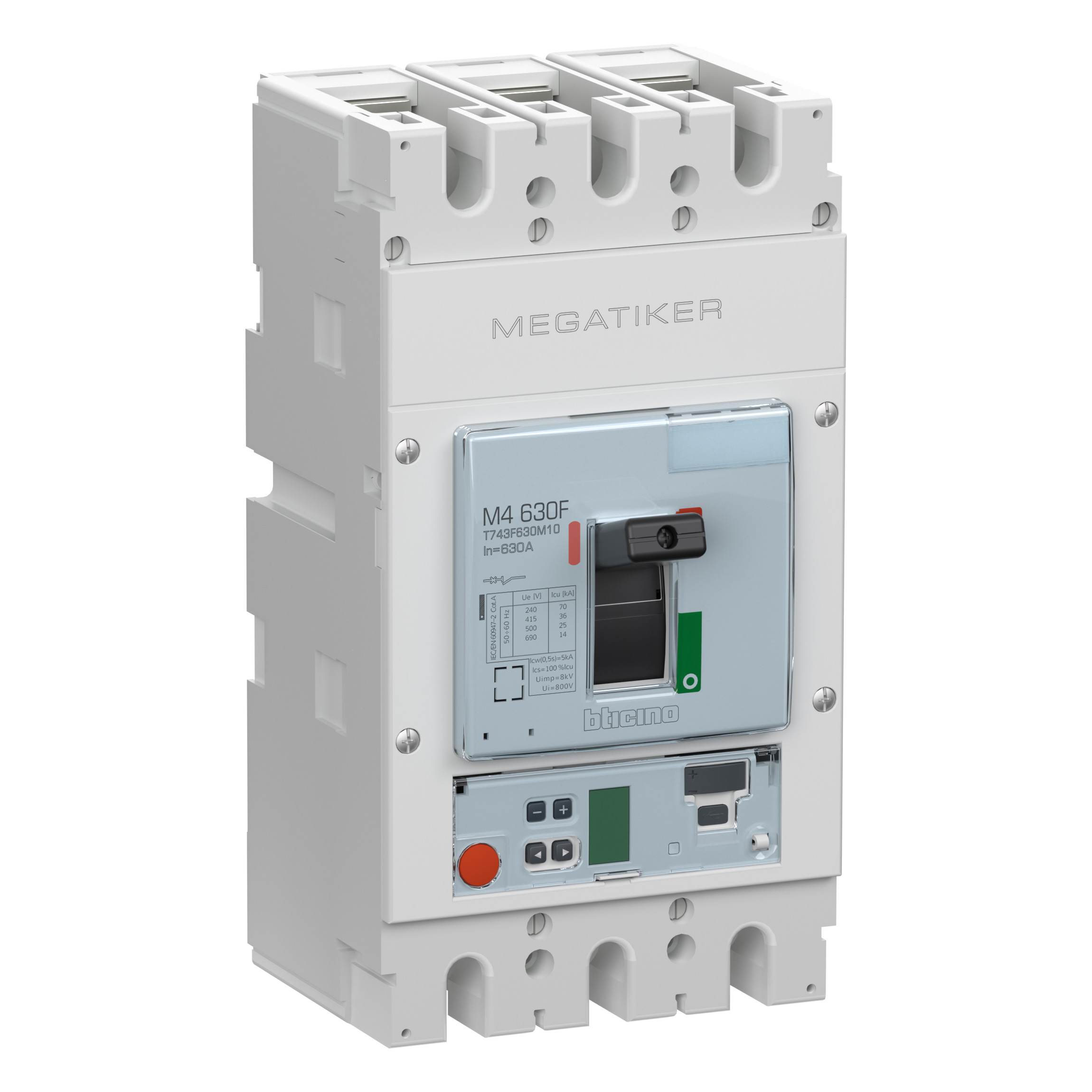

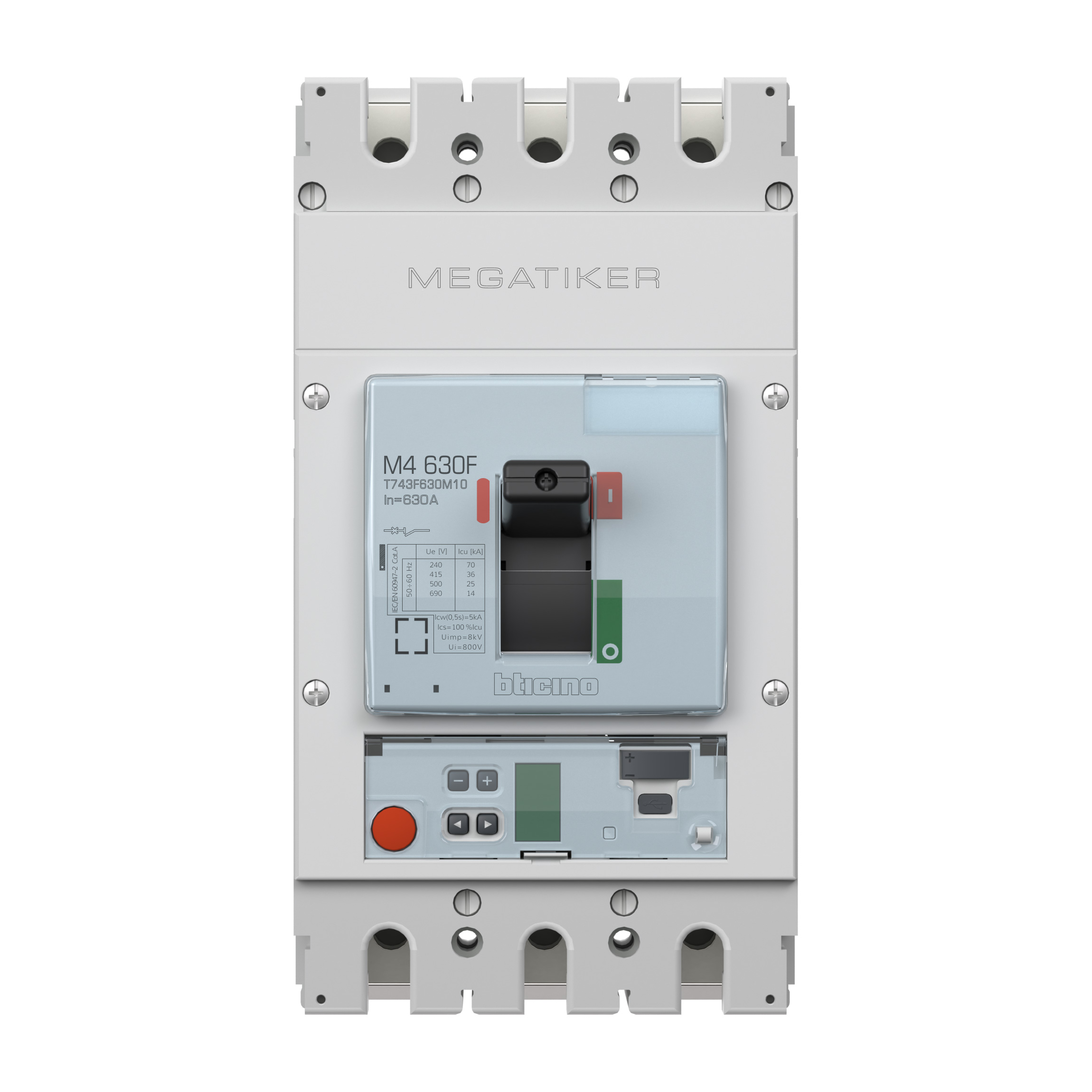

MEGATIKER Mccb M4 630F electronic and measure 3P - 630A - 36kA
BT-T743F630M10
|
8005543697047
Description
Moulded circuit breaker for control isolation and protection of low voltage lines. Protects a circuit from damage caused by excess current from an overload or short circuit
Product characteristics
- Breaking capacity of 36kA, according to EN/IEC standard 60947-2, suitable for protection of high power industrial installations.
- Rated insulation voltage of 800V. Rated impulse withstand voltage of 8kV
- Completely flexible regolation of the protection unit by software for thermal and magnetic currents and times. Thermal protection within range of 0,2-1,0 of the rated current. Magnetic protection within range of 1,5-10 of the rated current.
- Can be equipped with releases (undervoltage and shunt releases) and auxiliary contacts, rotary handles or motor operator. Locking accessories are available.
- Diffent type of connection accessories are available: cage terminals, spreader and rear terminals. Plug-in version or draw-out configuration are possible (circuit breaker fitted with special terminals and mounted on a plug-in base). A dedicated module can be added in order to get protection agains earth leakage faults.
Products benefits
Installation
- Can be mounted on plate in Legrand cabinets and enclosures. Can be converted in a draw-out version with base and conversion kit
Usage
- Megatiker platform provides a complete range suitable for high power application.
Advantages
- Same MCCB size for all versions (thermal magnetic, electronic with or without measure). Earth leakage fetures can be achieved by adding a dedicated module at the bottom of the breaker itself.
- Adjustment of Ir, Isd, Ii, Ig, tr, tsd, tg directly on the MCCB or via software PCS, that can be downloaded from e-catalog. For 4P version: adjustment of neutral can be done on front panel or by software.
- EnerUp + Project App for smartphone and tablet available on Apple Store and Google Play, can be used to connect to the MCCB via smartphone. The BT-MPXX02 dongle key is needed to ensure the connectivity via App. Monitoring, tests implementation and test reports are available via App.
Technical Characteristics
Rated permanent current Iu
630 A
Rated voltage (Min-Max)
230-400 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
36 kA
Overload release current setting (Min-Max)
0.2 - 1 A
Adjustment range short-term delayed short-circuit release (Min-Max)
1.5 - 10 A
Device construction
Complete device in housing
Integrated earth fault protection
No
Type of electrical connection of main circuit
Screw connection
Suitable for DIN rail (top hat rail) mounting
Yes
DIN rail (top hat rail) mounting optional
Yes
Number of auxiliary contacts as normally closed contact
1
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as change-over contact
1
With switched-off indicator
No
With integrated under voltage release
No
Number of poles
3
Position of connection for main current circuit
Back side
Type of control element
Wing knob
Complete device with protection unit
Yes
Motor drive integrated
No
Motor drive optional
Yes
Degree of protection (IP)
IP30
Width
270 mm
Height
150 mm
Depth
170 mm
degree of impact strength (IK)
IK07
Operating / setting temperature (Min-Max)
-5 - 70 °C
Storage temperature (Min-Max)
-40 - 85 °C
Voltage type
AC
Frequency (Min-Max)
50-60 Hz
Electric supplying direction
By the top or bottom
Terminal marking indication
No
Colour
Grey
Halogen free
Yes
Terminals capacity (Min-Max)
90 - 150 mm²
Cable nature for connection
Flexible or rigid
Label space/information surface
Yes
Contains Batteries and/or Accumulator
No
