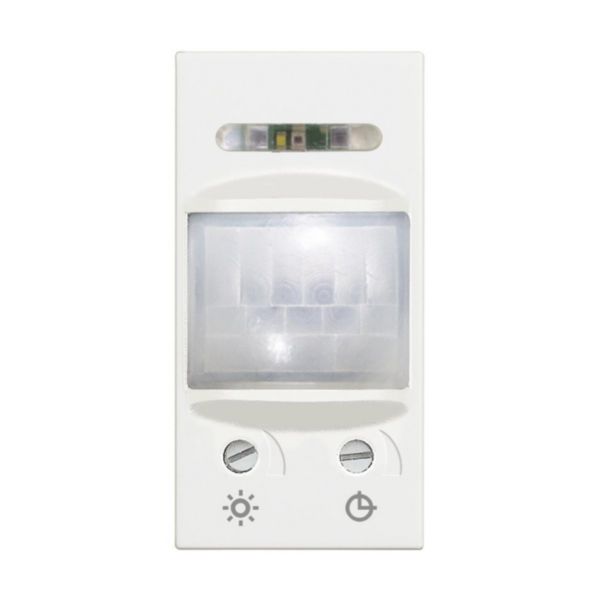

Switch with passive infrared motion sensor suitable for all types of load
BT-RW4431
|
8005543645710
Description
The switch with passive infrared motion sensor allows automatic switching on and off by presence detection when natural light is insufficient - color white
Product characteristics
- Suitable for all types of load including LED lamps - 3 wires - twilight circuit with variable threshold with the possibility of exclusion - timing circuit for delayed switch-off adjustable from 30 seconds to 10 minutes
- 1 module
- color white
- screw terminals
- Use to control: LED dimmable, FCL dimmable, halogen low voltage (TBT), halogen 230V and incandescent - 100-230 Va.c. power supply
Products benefits
Installation
- Needs the neutral cable
Usage
- Switch-off adjustable from 30 seconds to 10 minutes
Technical Characteristics
Model
Movement sensor
Movement sensor/presence detector technology
Passive infrared
Constant light control
No
HVAC-control
No
Forced switch off
No
Animal zone
No
Creep-under protection
No
Background monitoring
No
Networkable
No
Optimum mounting height
1.2 m
Staircase light controller
No
Bridging switch
No
Max. reach sideways
6 m
Max. reach frontally
6 m
Diameter reach on floor
3 m
Suitable for wireless transmission
No
Remote operation
No
Supplied remote control
No
Response value luminosity adjustable
Yes
With signal unit
No
Teach-function for response value luminosity
No
Dim function with dimmer basic element
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Antimicrobial treatment
No
Colour
White
RAL-number (similar)
9003
Transparent
No
Degree of protection (IP)
IP40
degree of impact strength (IK)
IK04
Voltage type
AC
Frequency (Min-Max)
50-60 Hz
Nominal voltage (Min-Max)
230-230 V
Min. switch-on time
0.5 s
Max. duty cycle
10 min
Detection angle horizontal (Min-Max)
105-105 °
Max. switching power
460 W
Substation input
No
With alarm function
No
With acoustic sensor
No
Ambient temperature (Min-Max)
5-40 °C
Width
22.3 mm
Height
45 mm
Depth
42.7 mm
Built-in depth
32.9 mm
With connection cable
No
Connection cable length
0 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Compatible with Casambi
No
IFTTT support available
No
Operating / setting temperature (Min-Max)
-5-50 °C
Storage temperature (Min-Max)
-10-70 °C
Mandatory neutral
No
Terminal marking indication
No
Cable nature for connection
Flexible or rigid
Label space/information surface
No
Horizontal fixing center distance (Min-Max)
3-3.2 mm
Auto switch
No
Documentation
2 documents
Technical Sheet
IDP000235_02-EN | PDF (450 KB) | EN
Instruction Use
LE11434AA | PDF (1.3 MB)
1 documents
Catalog Commercial Page
3210144 | PDF (9.4 MB) | EN
