Classia BTicino

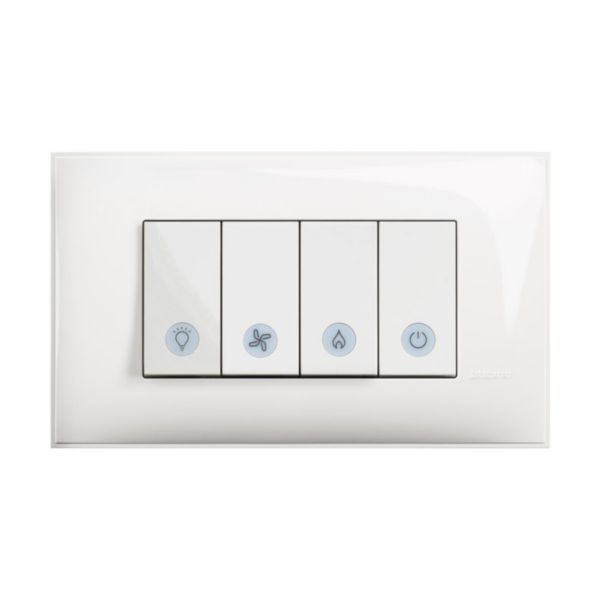

Bathroom switch with indication for four independent circuits

BT-RW4001B4 | 8005543636091
Bathroom switch with indication for four independent circuits 2x10/2x16 AX 250 Vac (Light, fan, heater, boiler)
Description

Bathroom switch with indication for four independent circuits 2x10/2x16 AX 250 Va.c. (light, fan, heater, boiler), color shiny white

Product characteristics
  • Bathroom switch with indication for four independent circuits 2x10/2x16 AX 250 Va.c. (light, fan, heater, boiler)
  • 4 modules
  • color white
  • screw terminals
Products benefits
Installation
  • Easy to insall and remove
Usage
  • Application used for the bathroom with lighted symbols
Advantages
  • Higt technical performance
  • modern shape, slightly curved cover
Technical Characteristics
Wiring system Switch 1-pole
Method of operation Rocker/button
Assembly arrangement Modular device for domestic switching devices
Number of modules (module system) 4
Push button switch Yes
Mounting method Flush-mounted
Type of fastening Engage (snap)
With mounting plate No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour White
RAL-number (similar) 9003
Colour of switch operator White
Label space/information surface No
Lighting Yes
Function lighting Orientation
Type of lighting LED exchangeable
Suitable for degree of protection (IP) IP20
Nominal voltage 250 V
Switching current for fluorescent lamps 16 AX
Monitoring contact No
Connection type Screwed terminal
Heating switch No
Washing machine switch No
Device width 144.5 mm
Device height 86 mm
Device depth 42.7 mm
Built-in depth 32.9 mm
Min. depth of built-in installation box 30 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Operating / setting temperature (Min-Max) -5-50 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Frequency (Min-Max) 50-60 Hz
Mandatory neutral No
Terminal marking indication No
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 1.5-2.5 mm²
Documentation
1 documents
Catalog Commercial Page
3210144 | PDF (9.4 MB) | EN
