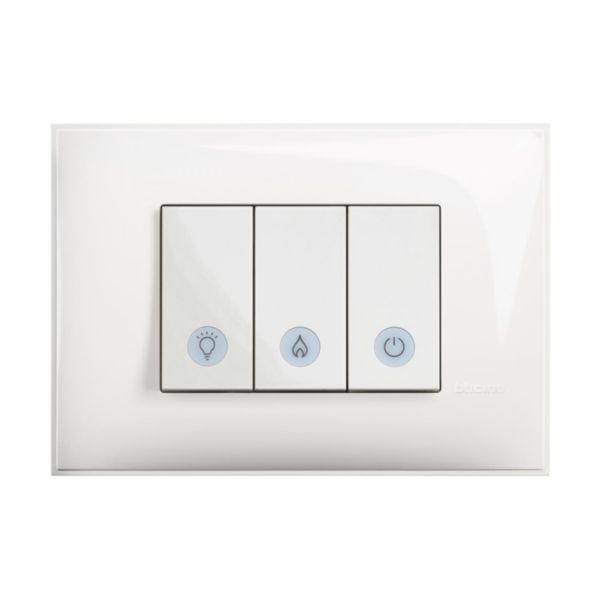

Bathroom switch with indication for three independent circuits
BT-RW4001B3
|
8005543636077
Description
Bathroom switch with indication for three independent circuits 10/2x16 AX 250 Va.c. (light, heater, boiler), color shiny white
Product characteristics
- Bathroom switch with indication for three independent circuits 10/2x16 AX 250 Va.c. (light, heater, boiler)
- 3 modules
- color white
- screw terminals
Products benefits
Installation
- Easy to insall and remove
Usage
- Application used for the bathroom with lighted symbols
Advantages
- Higt technical performance
- modern shape, slightly curved cover
Technical Characteristics
Wiring system
Switch 1-pole
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
3
Push button switch
Yes
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Antimicrobial treatment
No
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9003
Colour of switch operator
White
Label space/information surface
No
Lighting
Yes
Function lighting
Orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP20
Nominal voltage
250 V
Switching current for fluorescent lamps
16 AX
Monitoring contact
No
Connection type
Screwed terminal
Heating switch
No
Washing machine switch
No
Device width
122 mm
Device height
86 mm
Device depth
42.7 mm
Built-in depth
32.9 mm
Min. depth of built-in installation box
30 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Operating / setting temperature (Min-Max)
-5-50 °C
Storage temperature (Min-Max)
-10-70 °C
Voltage type
AC
Frequency (Min-Max)
50-60 Hz
Mandatory neutral
No
Terminal marking indication
No
Cable nature for connection
Flexible or rigid
Cable section (Min-Max)
1.5-2.5 mm²
