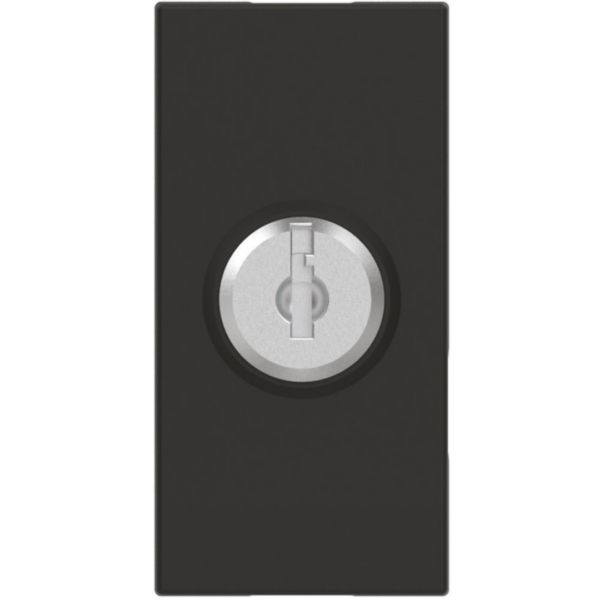

2-way switch 1P 16A 250Vac with key
BT-RG4022
|
8005543710944
Technical Characteristics
Wiring system
Two-way switch
Method of operation
Key
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Push button switch
No
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Other
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Antimicrobial treatment
No
Surface protection
Untreated
Surface finishing
Matt
Colour
Black
RAL-number (similar)
9011
Colour of switch operator
Aluminium
Label space/information surface
No
Lighting
No
Function lighting
Other
Type of lighting
Other
Suitable for degree of protection (IP)
IP40
degree of impact strength (IK)
IK04
Nominal voltage
250 V
Rated current
10 A
Switching current for fluorescent lamps
10 AX
Monitoring contact
No
Connection type
Screwed terminal
Heating switch
No
Washing machine switch
No
Device width
22 mm
Device height
45 mm
Device depth
44 mm
Built-in depth
32 mm
Min. depth of built-in installation box
42 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Compliant with UK Building Regulations Part M
No
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Frequency (Min-Max)
50-60 Hz
Mandatory neutral
No
Terminal marking indication
No
Terminals capacity (Min-Max)
1.5-2.5 mm²
Cable nature for connection
Flexible or rigid
Cable section (Min-Max)
1.5-2.5 mm²
