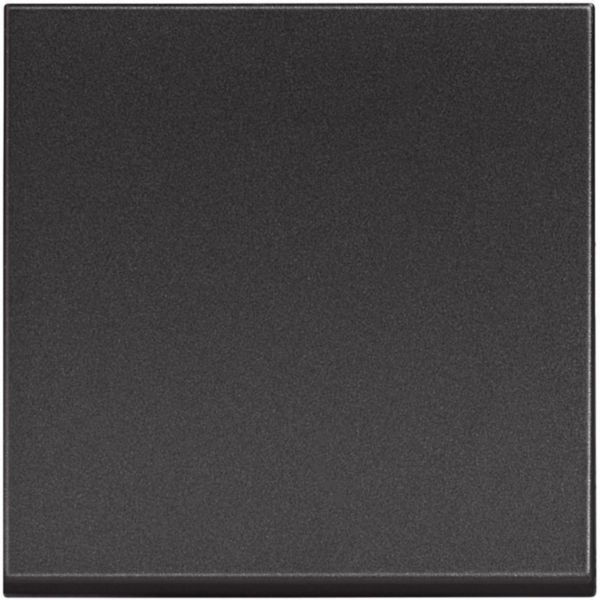

One-way switch 1P 10AX - 250 Vac (item sold in box packaging)
BT-RG4001M2P
|
8005543704226
Description
Switch 1P 10 AX - 250 Va.c., 2 modules, color black satin
Product characteristics
- Switch 1P 10 AX - 250 Va.c.
- 2 modules
- color black
- screw terminals
Products benefits
Installation
- Easy to insall and remove
Advantages
- Higt technical performance
- modern shape, slightly curved cover
Technical Characteristics
Wiring system
Switch 1-pole
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
2
Push button switch
Yes
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Antimicrobial treatment
No
Surface protection
Untreated
Surface finishing
Matt
Colour
Black
RAL-number (similar)
7015
Colour of switch operator
Black
Label space/information surface
No
Lighting
No
Function lighting
Other
Type of lighting
Other
Suitable for degree of protection (IP)
IP40
degree of impact strength (IK)
IK04
Nominal voltage
250 V
Rated current
10 A
Switching current for fluorescent lamps
10 AX
Monitoring contact
No
Connection type
Screwed terminal
Heating switch
No
Washing machine switch
No
Device width
45 mm
Device height
45 mm
Device depth
43 mm
Built-in depth
33 mm
Min. depth of built-in installation box
43 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Voltage type
AC
Frequency (Min-Max)
50-60 Hz
Mandatory neutral
Yes
Terminal marking indication
No
Terminals capacity (Min-Max)
1.5-2.5 mm²
Cable nature for connection
Flexible or rigid
Documentation
1 documents
Technical Sheet
IDP000231_04-EN | PDF (1.9 MB) | EN
1 documents
Catalog Commercial Page
3210144 | PDF (9.4 MB) | EN
