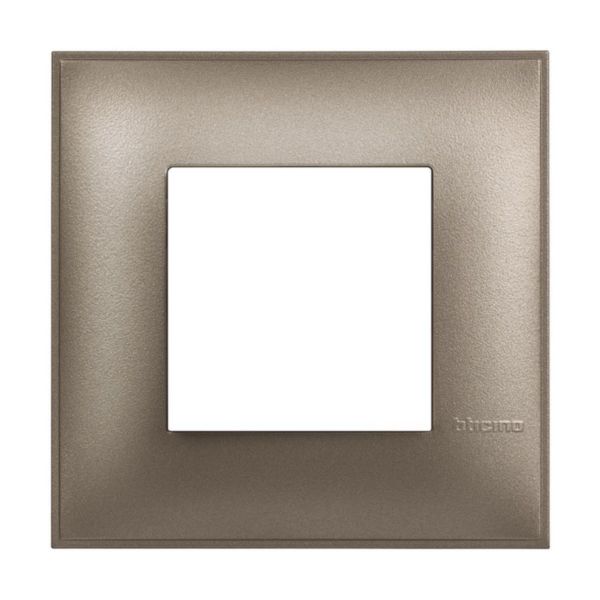

Cover plate - 2 modules
BT-R4802TM
|
8005543633748
Description
The Classia collection of plates has a modern, pure Italian design with a sophisticated outline. In technpolymer, this cover plate is 2 modules, color titanium with metal effect.
Product characteristics
- Technopolymer cover plates titanium metal, for installation on round (Bticino ref. 500) and square (Bticino ref. 502E) boxes or equivalents, German standard.
- Perfect installation both in masonry and plasterboard walls
- 2 modules
- Single packaging flow-pack hangable
Recommendations / Restrictions
- For indoor use only.
Products benefits
Installation
- This cover plate is European standard and can match with the offer Italian standard for mixed installation. It guarantee a perfect alignment of mechanisms both in masonry and plasterboard walls and a permanent contact with the wall.
Usage
- Enrich your installation with an Italian design pure shape, with sophisticated details. This cover plate is titalium with metal effect.
Advantages
- The same finishes is available in all modularity European and Italian standard boxes.
- Perfect alignement both in masonry and plasterboard walls.
Technical Characteristics
Number of units
1
Mounting direction
Horizontal and vertical
Number of units horizontal
1
Number of units vertical
1
Number of modules horizontal (module system)
2
Number of modules vertical (module system)
1
With mounting grid
No
Flush-mounted installation
Yes
Suitable for subfloor installation duct box
No
Suitable for wall duct
No
Suitable for built-in installation
Yes
Label space/information surface
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Antimicrobial treatment
No
Surface protection
Lacquered
Surface finishing
Matt
Colour
Titanium
RAL-number (similar)
7048
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP20
degree of impact strength (IK)
IK04
Type of fastening
Engage (snap)
Width
86 mm
Height
86 mm
Depth
9 mm
Built-in width
86 mm
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Latin wood species
Not applicable
Certification of wood (list)
Not applicable
Wood Climate area
Not applicable
