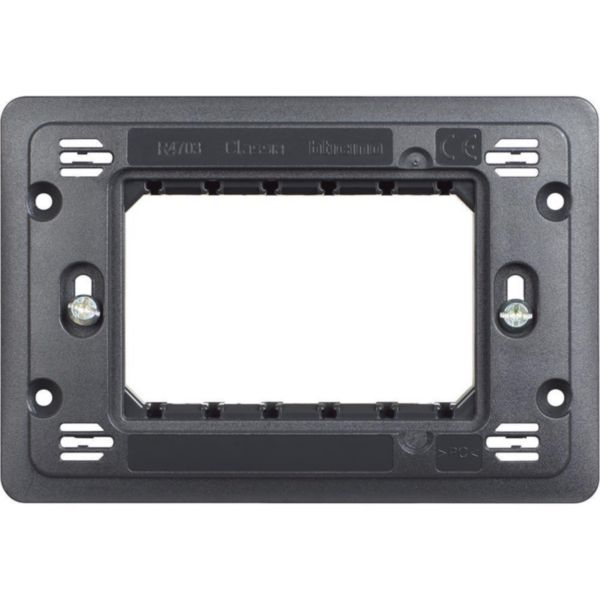

3 modules supporting frame (item sold in box packaging)
BT-R4703P
|
8005543703915
Description
The support frame is the accessory on which are installed the devices and the cover plates. This support is for cover plates 3 modules (1 - 2 or 3 gangs)
Product characteristics
- Innovative cover plates regulation system guatantee plate flush on tthe wall
- for cover plates 3 modules (1 - 2 or 3 gangs)
- easy intallation and removal
Products benefits
Installation
- The strengthness of the material and the innovative regulation system guarantee an easy and perfect installation
Usage
- This innovative support frame guarantee always the switch flush on the wall with a perfect aesthetic result.
Advantages
- This innovative support frame guarantee always the switch flush on the wall.
Technical Characteristics
Width
116 mm
Model
Other
Type of fastening
Mounting with screw
Height
79 mm
Depth
13.5 mm
With nail
Yes
Mounting method of the module inserts
Front side
Mounting direction
Horizontal and vertical
Number of modules horizontal (module system)
3
Number of modules vertical (module system)
1
With built-in installation box
Yes
With screws
Yes
Suitable for mounting in round junction box 60 mm
No
Flush-mounted installation
No
Suitable for subfloor installation duct box
No
Suitable for wall duct
No
Suitable for mounting on DIN-rail 35 mm
No
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Documentation
1 documents
Technical Sheet
IDP000255_02-EN | PDF (5.8 MB) | EN
1 documents
Catalog Commercial Page
3210144 | PDF (9.4 MB) | EN
