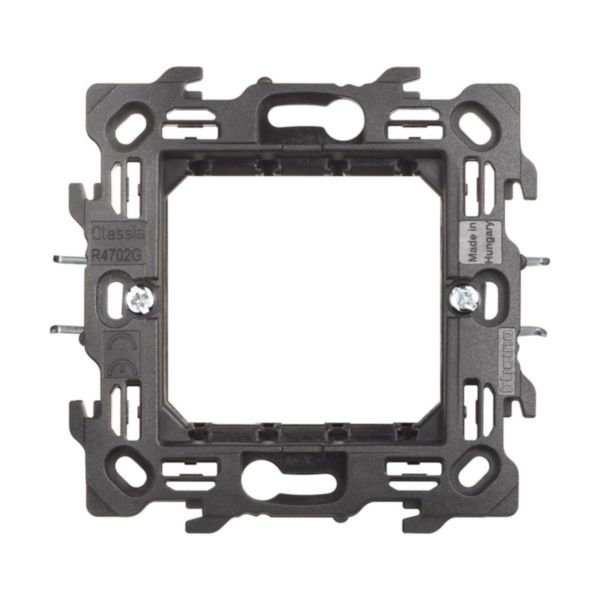

Supporting frame clips - 2 modules
BT-R4702G
|
8005543632376
Description
The support frame is the accessory on which are installed the devices and the cover plates. This support is for cover plates 2 modules and multiple, fixed with clips on the box.
Product characteristics
- Innovative cover plates regulation system guatantee plate flush on tthe wall
- for cover plates 2 modules and multiple, fixed with clips
- Innovative docking system for multiple installations
- easy intallation and removal
Products benefits
Installation
- The strengthness of the material and the innovative docking system for multipe installations guarantee a perfect alignement even in multi modules cover plates
Usage
- This innovative support frame guarantee always the switch flush on the wall with a perfect aesthetic result.
Advantages
- This innovative support frame guarantee always the switch flush on the wall.
Technical Characteristics
Width
75.4 mm
Model
Other
Type of fastening
Mounting with claw
Height
75.4 mm
Depth
14 mm
With nail
No
Mounting method of the module inserts
Front side
Mounting direction
Horizontal and vertical
Number of modules horizontal (module system)
2
Number of modules vertical (module system)
1
With built-in installation box
Yes
With screws
No
Suitable for mounting in round junction box 60 mm
No
Flush-mounted installation
No
Suitable for subfloor installation duct box
No
Suitable for wall duct
No
Suitable for mounting on DIN-rail 35 mm
No
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Documentation
1 documents
Technical Sheet
IDP000255_02-EN | PDF (5.8 MB) | EN
1 documents
PEP-EPD
LGRP-01907-V01.01-EN | PDF (969 KB) | EN
1 documents
Catalog Commercial Page
3210144 | PDF (9.4 MB) | EN
