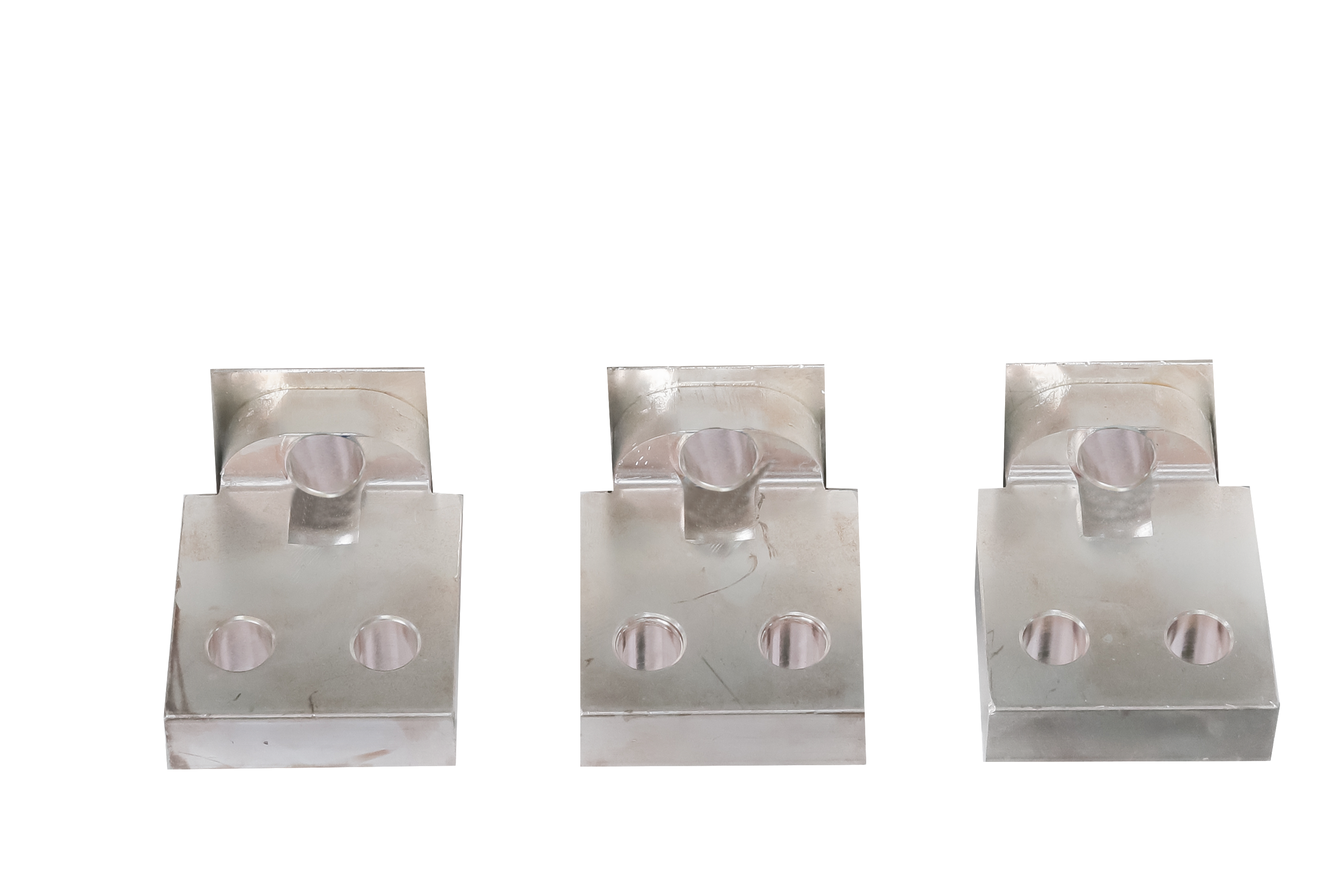

Rear terminal for MEGABREAK compact 3P draw-out version
BT-MT9TE3P1600
|
8005543809730
Description
Reversible rear terminals for connection with bars, compatible with Megabreak 1600 draw-out version 3P
Product characteristics
- Can be fixed in horizontal or vertical position
Technical Characteristics
Device construction
Other
Integrated earth fault protection
No
Type of electrical connection of main circuit
Bolt connection
Suitable for DIN rail (top hat rail) mounting
No
DIN rail (top hat rail) mounting optional
No
With switched-off indicator
No
With integrated under voltage release
No
Number of poles
3
Position of connection for main current circuit
Back side
Complete device with protection unit
No
Motor drive integrated
No
Motor drive optional
No
Width
50 mm
Height
15 mm
Depth
63 mm
degree of impact strength (IK)
Not applicable
Operating / setting temperature (Min-Max)
-5-70 °C
Storage temperature (Min-Max)
-25-85 °C
Voltage type
AC
Frequency (Min-Max)
50-60 Hz
Electric supplying direction
By the rear of the product
Terminal marking indication
No
Colour
Steel
Halogen free
Yes
Terminals capacity (Min-Max)
120-1000 mm²
Cable nature for connection
Flexible or rigid
Label space/information surface
No
Contains Batteries and/or Accumulator
No
