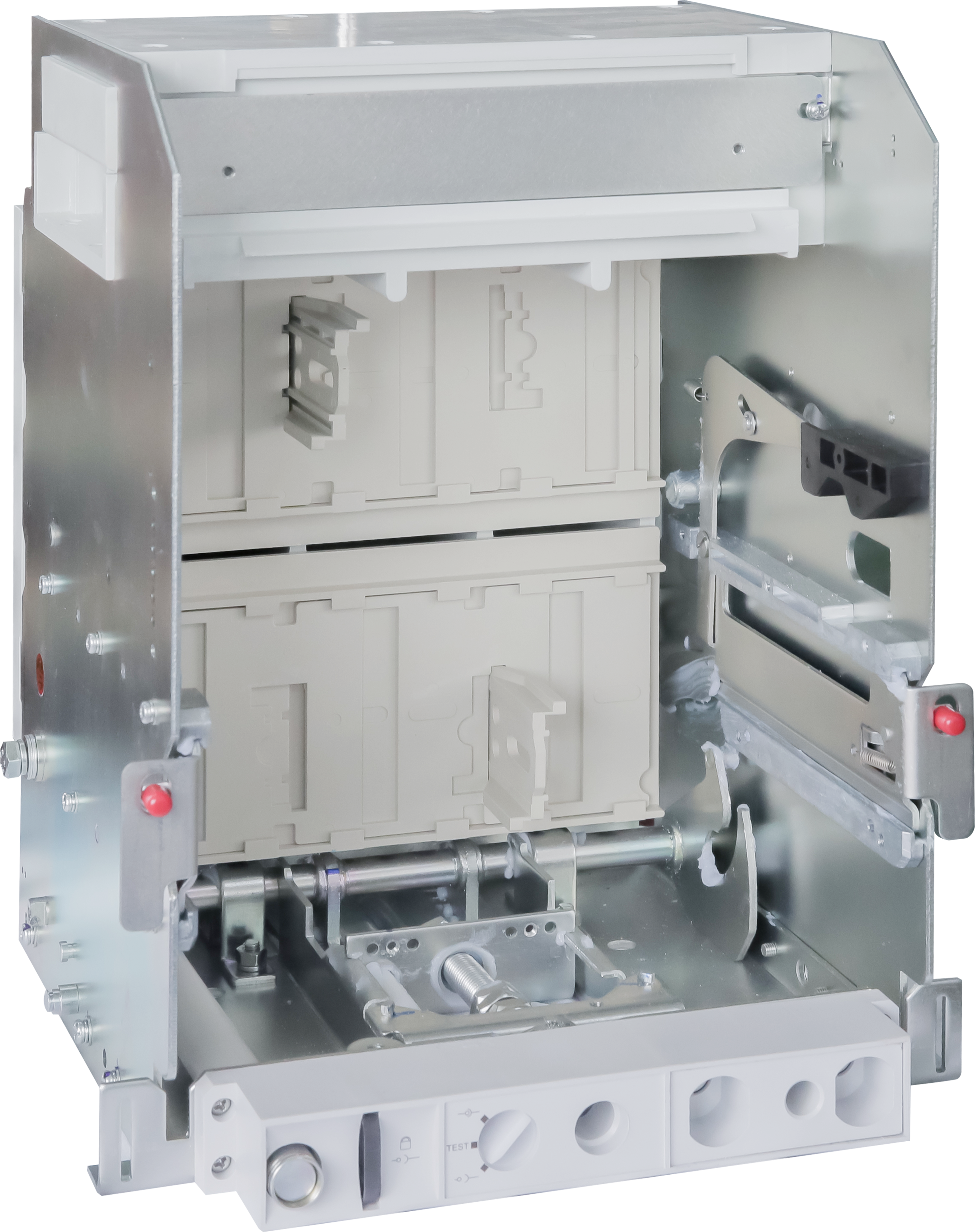

Draw-out base for MEGABREAK compact 3P
BT-MT9BE3P1600
|
8005543809679
Description
Equipment for conversion of a fixed device 3P into a draw-out version
Recommendations / Restrictions
- It shall be ordered as an accessory to be assembled locally
Technical Characteristics
Device construction
Built-in device slide-in technique (withdrawable)
Integrated earth fault protection
No
Type of electrical connection of main circuit
Bolt connection
Suitable for DIN rail (top hat rail) mounting
No
DIN rail (top hat rail) mounting optional
No
With switched-off indicator
No
With integrated under voltage release
No
Number of poles
3
Position of connection for main current circuit
Back side
Complete device with protection unit
No
Motor drive integrated
No
Motor drive optional
No
Degree of protection (IP)
IP20
Width
282 mm
Height
352 mm
Depth
297 mm
degree of impact strength (IK)
Not applicable
Operating / setting temperature (Min-Max)
-5-70 °C
Storage temperature (Min-Max)
-25-85 °C
Voltage type
AC
Frequency (Min-Max)
50-60 Hz
Electric supplying direction
By the top
Terminal marking indication
No
Colour
Grey
Halogen free
Yes
Terminals capacity (Min-Max)
120-1000 mm²
Cable nature for connection
Flexible or rigid
Label space/information surface
No
Contains Batteries and/or Accumulator
No
