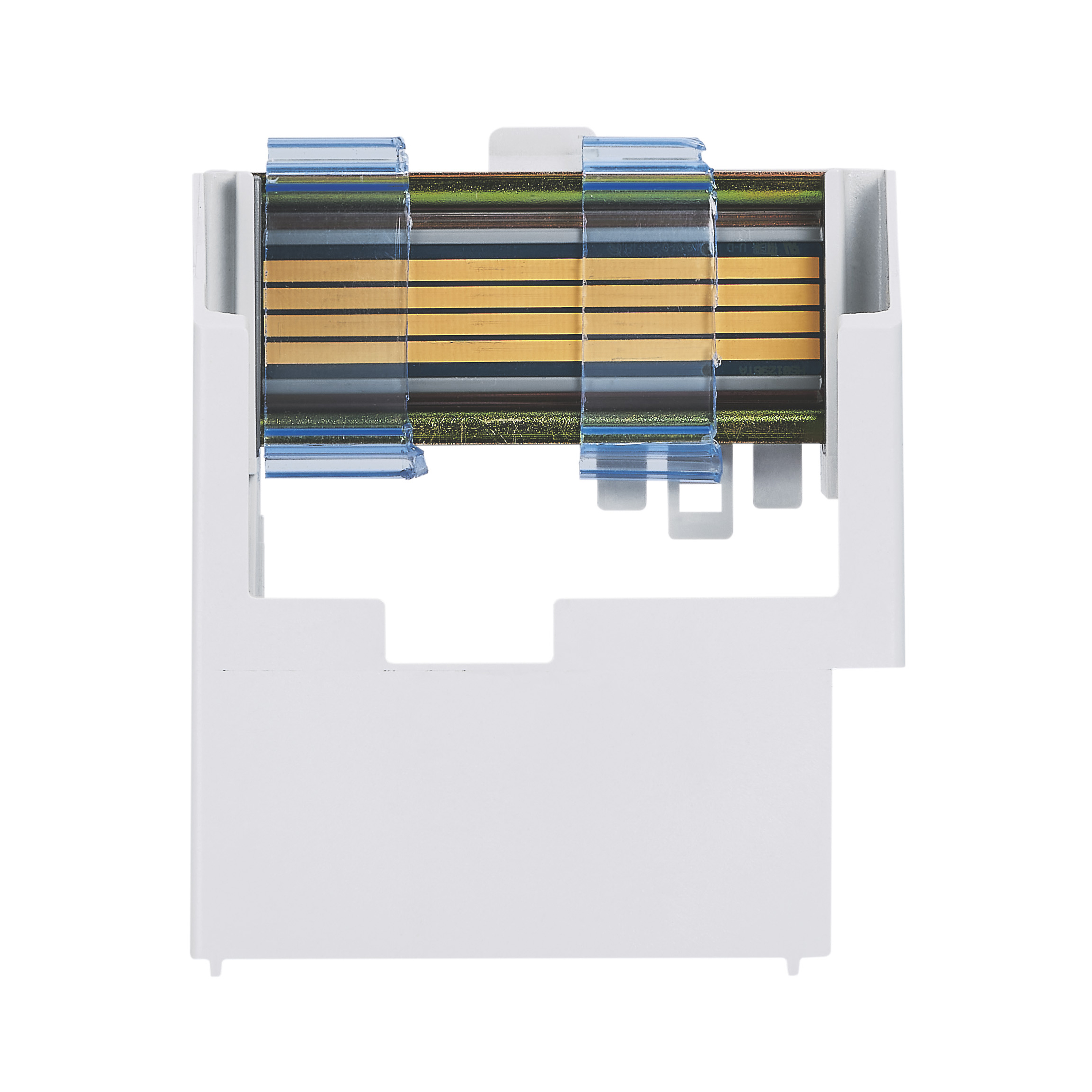

EMS support for MEGABREAK compact (4 DIN modules)
BT-MPXX01
|
8005543779859
Description
Product characteristics
- Adjustment via rotating encoder (djustment of Ir, tr, isd, tsd, Ii, Ig and tg) and possibility to enable/disable protections
- Fault signaling and log
Technical Characteristics
Device construction
Other
Integrated earth fault protection
No
Type of electrical connection of main circuit
Other
Suitable for DIN rail (top hat rail) mounting
No
DIN rail (top hat rail) mounting optional
No
With switched-off indicator
Yes
With integrated under voltage release
No
Position of connection for main current circuit
Other
Type of control element
Other
Complete device with protection unit
No
Motor drive integrated
No
Motor drive optional
No
Degree of protection (IP)
IP20
Width
62 mm
Height
205 mm
Depth
80 mm
degree of impact strength (IK)
Not applicable
Operating / setting temperature (Min-Max)
-25-70 °C
Storage temperature (Min-Max)
-25-85 °C
Voltage type
Other
Electric supplying direction
Other
Terminal marking indication
No
Colour
Grey
RAL-number
7035
Halogen free
Yes
Cable nature for connection
Other
Label space/information surface
No
Contains Batteries and/or Accumulator
No
