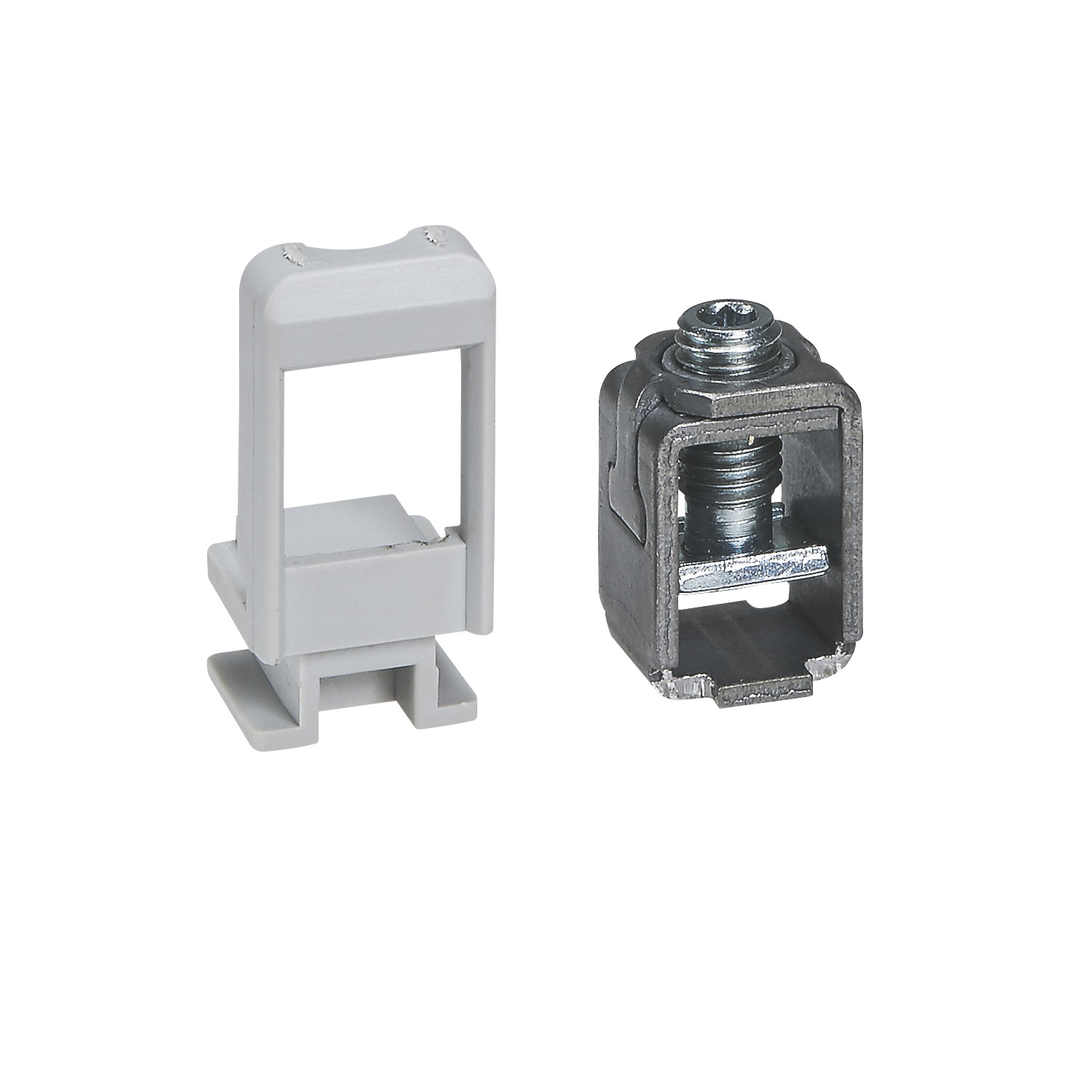

Cage terminals for M3 160 Mccb 3P
BT-M7X59
|
8005543767993
Description
Megatiker, connection accessory for MCCB or trip-free switch
Product characteristics
- Max. cable dimensions acceptable: 1x70mm² for flexible cables and 1x95 mm² for rigid cables (for Al cables In max=80A)
- Set of 3
- Suitable for Megatiker M3 125 and Megatiker M3 160
Products benefits
Usage
- Enables connection of Copper and Aluminium cables
Technical Characteristics
Number of poles
3
Nominal current
160 A
Connection type
Screw-/spring clamp connection
Mounting method
Screw
Number of inputs
3
Number of outputs
0
Suitable for solid conductors
Yes
Suitable for stranded conductors
Yes
Suitable for fine strand conductors
Yes
Suitable for fine strand conductors without cable end sleeve
Yes
Suitable for extra fine-strand conductors
Yes
Suitable for extra fine-strand conductors without cable end sleeve
Yes
Conductor cross section, input (Min-Max)
2.5-50 mm²
Contact safe
No
Height
24 mm
Width
16.5 mm
Depth
15 mm
number of rows
1
Operating / setting temperature (Min-Max)
-40-140 °C
Storage temperature (Min-Max)
0-40 °C
Nominal voltage (Min-Max)
0-125 V
Halogen free
Yes
Type of distribution blocks
Phase
Label space/information surface
No
Documentation
1 documents
Catalog Commercial Page
3244051 | PDF (28.2 MB) | EN
