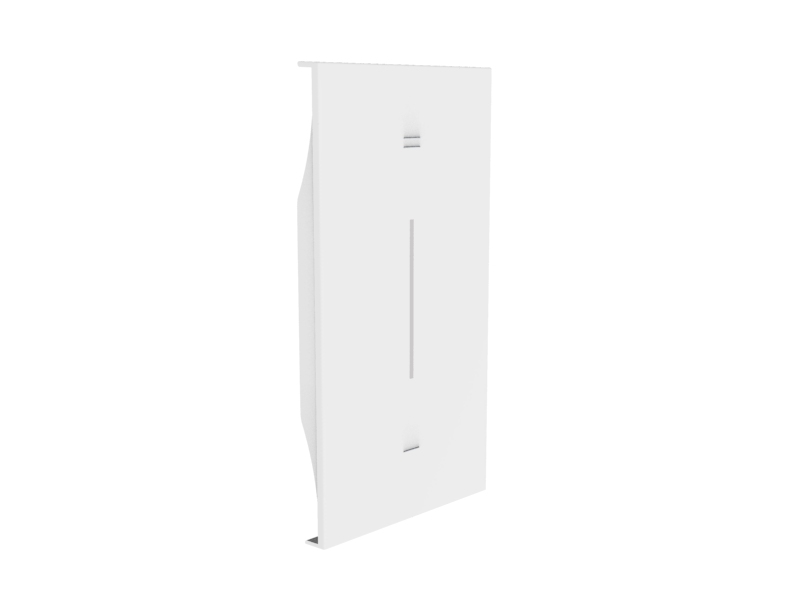

Lightable cover for item K4418M2
BT-KW01M2N
|
8005543741870
Technical Characteristics
Model
One-part button
Imprint/indication
Various symbols
Scannable symbol/barrier free
No
Utilization
Switch/dimmer
Suitable for touch sensor connector for bus system
No
Type of fastening
Engage (snap)
Monitoring window/light outlet
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Antimicrobial treatment
No
Colour
White
RAL-number (similar)
9003
With label area
No
With exchangeable lens/symbol
No
Suitable for degree of protection (IP)
IP20
degree of impact strength (IK)
IK04
Width
45 mm
Height
86 mm
Depth
7 mm
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
