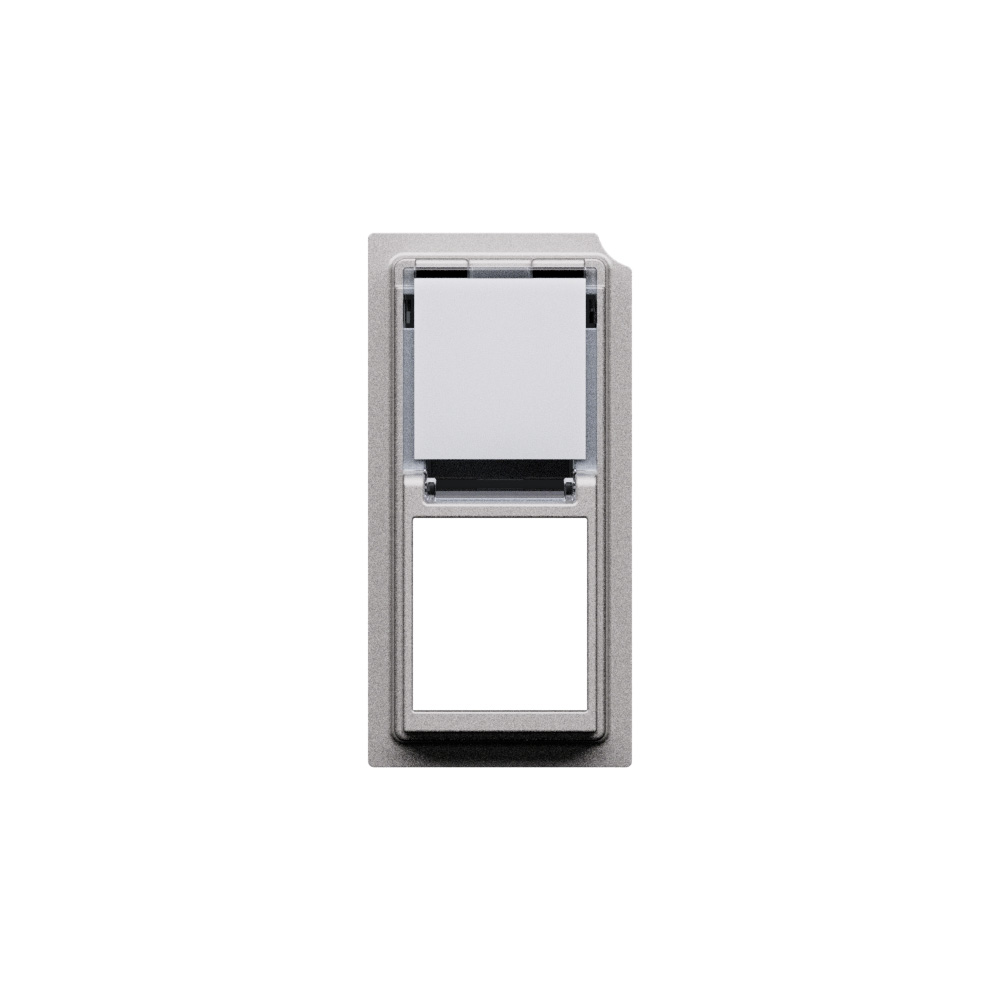

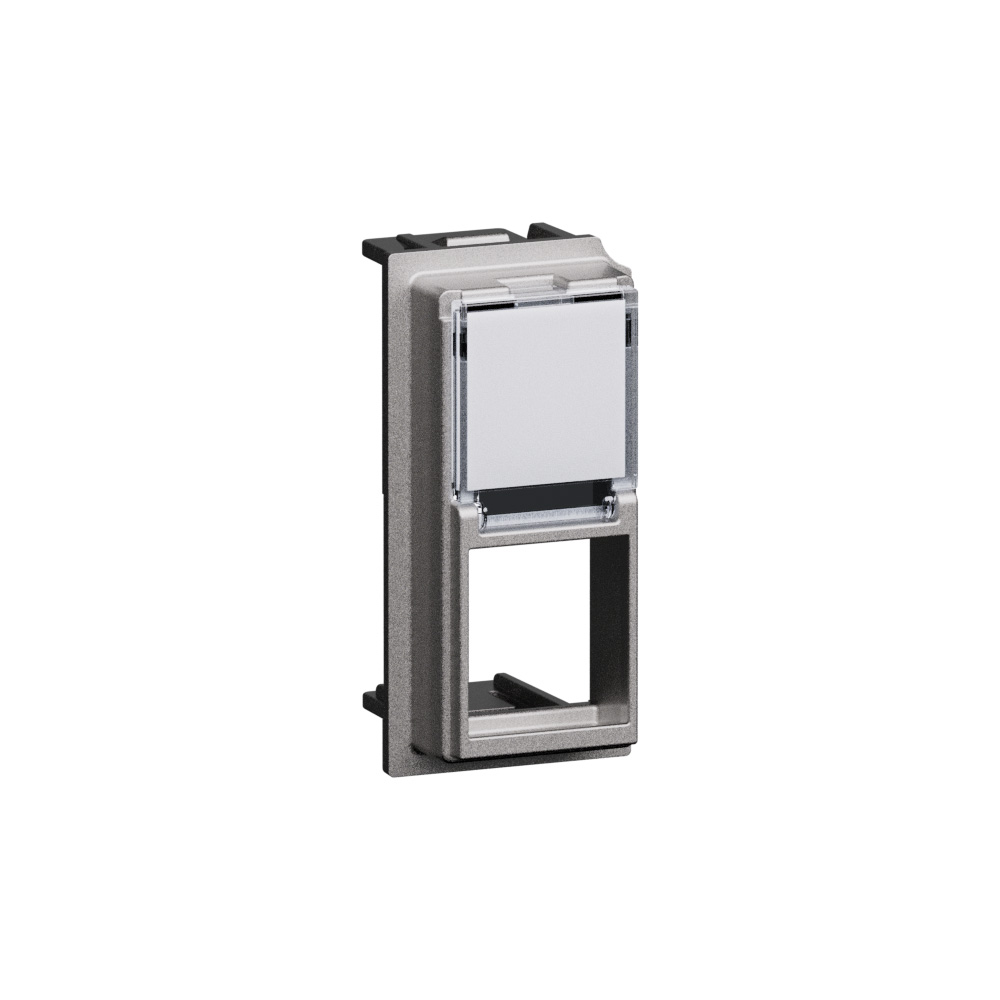

Keystone connectors adapter
BT-KS07K
|
8005543803646
Description
The keystone cover features robust thermoplastic construction and halogen-free design. Its lacquered matt finish, IP20 protection, and IK04 impact strength ensure reliable performance and quick snap fastening.
Product characteristics
- Central cover plate for domestic switching devices, providing robust protection and a precise fit for RJ45 sockets.
- Steel finish
- 1 module
- Manufactured from high-quality, halogen-free thermoplastic, the cover plate offers enhanced safety and environmental compliance for demanding technical environments.
Products benefits
Installation
- Snap-fit (engage) fastening enables rapid, tool-free installation and secure retention, optimising workflow efficiency for installers.
Usage
- Suitable for commercial and residential installation. IP and analog phones. Very suitable for downloads, streaming or online games requiring low latency.
Technical Characteristics
Model
Central cover plate
Imprint/indication
None
Scannable symbol/barrier free
No
Utilization
Other
Suitable for touch sensor connector for bus system
No
Type of fastening
Engage (snap)
Monitoring window/light outlet
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Antimicrobial treatment
No
Colour
Grey
RAL-number (similar)
7005
With label area
No
With exchangeable lens/symbol
No
Suitable for degree of protection (IP)
IP20
degree of impact strength (IK)
IK04
Width
22 mm
Height
86 mm
Depth
7 mm
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
