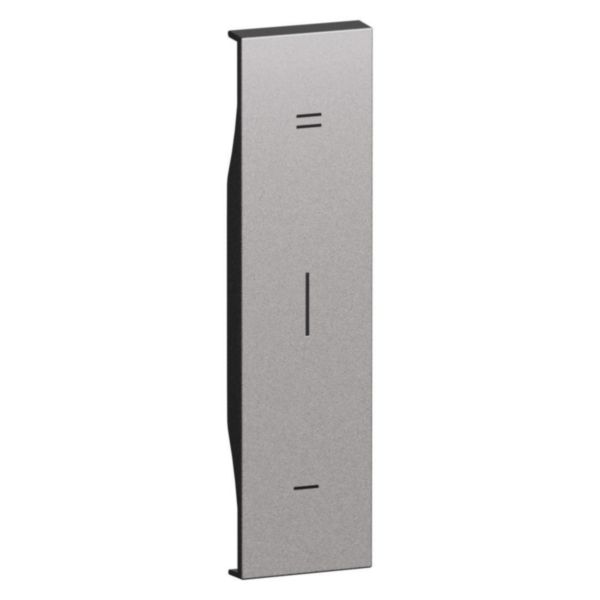

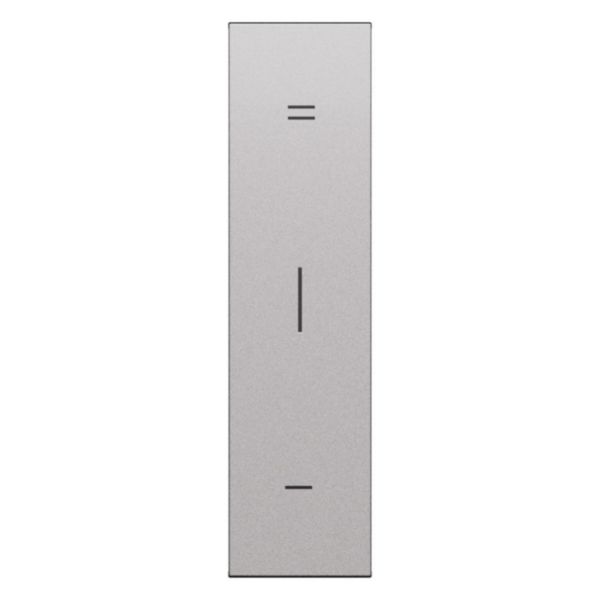

Cover for item K4418
BT-KS01N
|
8005543787144
Description
Mobile cover for the aesthetic completion of the controls (switches only), steel
Product characteristics
- Steel technopolymer cover with satin finish and metal feel.
- The cover is equipped with a self-centering system (self-centering System) that allows the plate to be attached while maintaining a perfect flatness of the switch
- Slim and decreet opal lens for the location light output (if mounted on the control)
- 1 module, technopolymer, steel color
- Delivered with dedicated packaging to maintain the aesthetic characteristics unaltered
Recommendations / Restrictions
- Complete the commands of electromechanical, electronic and MH type. It is mounted on the coverplate at the end of the construction site to maintain the work in a workmanlike manner. For internal use.
Products benefits
Installation
- Installation in a workmanlike manner, without scratches or dirt on the building site, thanks to the separation of installation times between the technical part and the aesthetic part. Installation perfectly aligned with the plate thanks to the self centering system
Usage
- Planar Aesthetic and increased ergonomics thanks to the new Full touch concept: the control can be operated by pressing at any point on its surface
Advantages
- The cover is equipped with a self-centering system that allows the plate to be attached while maintaining a perfect flatness of the switch
- You can replace the device cover at any time by changing its color or restoring any damage to the surface without changing the entire device
- Easy to clean surface thanks to the planar geometry of the switch
Technical Characteristics
Model
One-part button
Imprint/indication
Various symbols
Scannable symbol/barrier free
No
Utilization
Switch/dimmer
Suitable for touch sensor connector for bus system
No
Type of fastening
Engage (snap)
Monitoring window/light outlet
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Antimicrobial treatment
No
Colour
Grey
RAL-number (similar)
7005
With label area
No
With exchangeable lens/symbol
No
Suitable for degree of protection (IP)
IP20
degree of impact strength (IK)
IK04
Width
22 mm
Height
86 mm
Depth
7 mm
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
