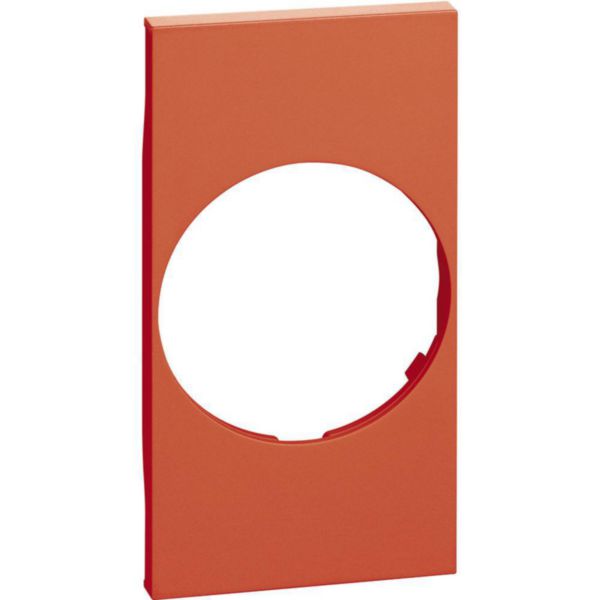

Name: Cover for german standard sockets item KR4141
Brand: BTicino
SKU: BT-KR04
Availability: InStock

Description

Fixed cover for the aesthetic completion of different devices (P30 socket, Franco-Belgian socket and extractable torch), 2 modules, red.

Product characteristics

Red technopolymer cover with satin finish and silky feel.
2 modules, technopolymer, satin red
Delivered with dedicated packaging to maintain the aesthetic characteristics unaltered

Recommendations / Restrictions

It is mounted on the cover plate at the end of the construction site to maintain the work in a workmanlike manner.For internal use.

Products benefits

Installation

Installation in a workmanlike manner, without scratches or dirt on the building site, thanks to the separation of installation times between the technical part and the aesthetic part. Installation perfectly aligned with the plate thanks to the self centering system

Advantages

It is coordinated with the L.NOW aesthetic
You can replace the device cover at any time by changing its color or restoring any damage to the surface without changing the entire device

Technical Characteristics

Model Central cover plate

Imprint/indication None

Scannable symbol/barrier free No

Utilization Socket outlet

Suitable for touch sensor connector for bus system No

Type of fastening Engage (snap)

Monitoring window/light outlet No

Material Plastic

Material quality Thermoplastic

Halogen free Yes

Surface protection Untreated

Surface finishing Matt

Antimicrobial treatment No

Colour Red

RAL-number (similar) 3026

With label area No

With exchangeable lens/symbol No

Suitable for degree of protection (IP) IP20

degree of impact strength (IK) IK04

Width 45 mm

Height 86 mm

Depth 7 mm

Operating / setting temperature (Min-Max) -5-35 °C

Storage temperature (Min-Max) -10-70 °C

Cover for german standard sockets item KR4141
