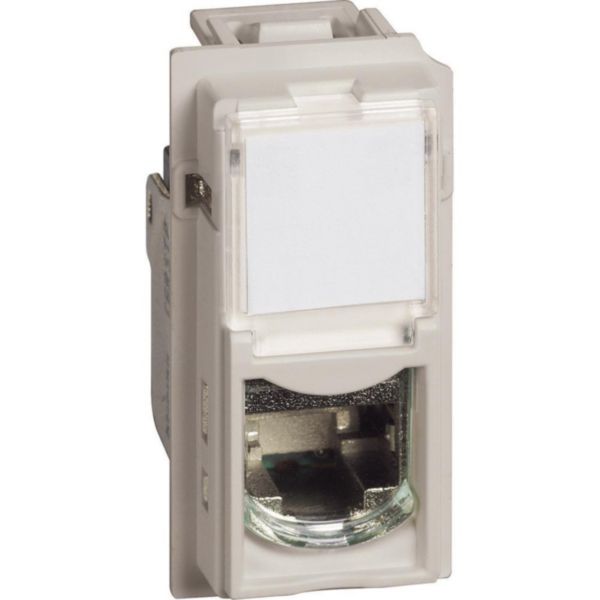

Name: RJ45 connectors 6 FTP category, Tolless IDC
Brand: BTicino
SKU: BT-KM4279C6F
Availability: InStock

Description

RJ45 connector equipped with a rotating locking system. Suitable for category 6 FTP AWG 22 single-core cables up to AWG 26 and AWG multicore cables. It enables high speed data transmission.

Product characteristics

Category 6 FTP : Data rate up to 1 GigaBit/s. This allows you to download a 1 GigaBytes file in 8 seconds.
With fast crimping connection
Accepts the following cable connectors : RJ11 (4 contacts), RJ12 (6 contacts), RJ45 (9 contacts).
Sand finishing

Recommendations / Restrictions

Max. number of connections and disconnections: 5 without refreshing the cable. Conform to standards ISO/IEC 11801 Ed. 3.0, EN 50173-1 and TIA/EIA 568 C

Products benefits

Installation

The RJ45 connectors are equipped with a rotating locking system that does not require special tools and enables rewiring in the event of error. Can be integrated in several supports : Axolute, Living Light, Light Tech, Matix.

Usage

High reliability : 2500 movements (plug insertion/withdrawal)

Technical Characteristics

Surface mounting No

Flush-mounted installation Yes

Duct installation No

Floor box/subfloor mounted No

Type of fastening Engage (snap)

Assembly arrangement Basic element with central cover plate

Type of connector RJ45 8(8)

With buses/couplings Yes

Suitable for number of connectors 1

Category 6

Colour Beige

RAL-number 1015

Connection type Insulation displacement connector

Shielded buses No

Shielded housing No

Separate earthing connection No

With label space Yes

Compatible with third-party covers No

Separate strain relief No

Mounting method shielding connection None

Outlet direction Straight

With dust cover Yes

With terminal resistor No

Degree of protection (IP) IP20

Mechanical coding No

Colour coding Yes

Device width 22 mm

Device height 45 mm

Device depth 41 mm

Number of modules (module system) 1

Built-in depth 31 mm

degree of impact strength (IK) IK04

Operating / setting temperature (Min-Max) -5-35 °C

Storage temperature (Min-Max) -10-70 °C

Terminal marking indication No

Halogen free Yes

Antimicrobial treatment No

Mounting method Flush-mounted

Tube diameter for wall mounted product (Min-Max) 0-0 mm

Maximum Input cable diameter 9 mm

Entry membrane gland type Flexible to cut

Vertical fixing center distance (Min-Max) 3.2-3.5 mm

Horizontal fixing center distance (Min-Max) 2.7-3 mm

Cable support Not applicable
