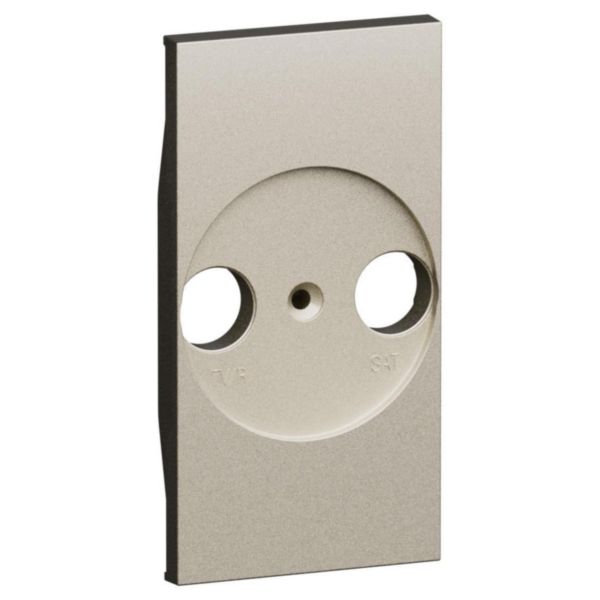

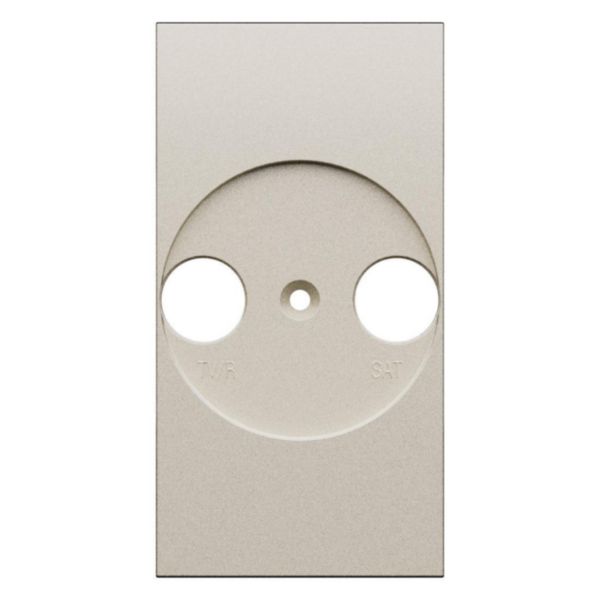

Cover for TV-SAT sockets
BT-KC4212
|
8005543794609
Description
This Living Now Cover is an adapter which permits you to install other TV/R-SAT devices
Product characteristics
- Champagne technopolymer cover with satin finish and metal feel.
- central hole for a screw to secure the socket to cover
- 2 modules, technopolymer, satin Champagne
- Delivered with dedicated packaging to maintain the aesthetic characteristics unaltered
Recommendations / Restrictions
- It is mounted on the cover plate at the end of the construction site to maintain the work in a workmanlike manner.For internal use.
Products benefits
Advantages
- It is coordinated with the L.NOW aesthetic
- You can replace the device cover at any time by changing its color or restoring any damage to the surface without changing the entire device
Technical Characteristics
Assembly arrangement
Central cover plate
Utilization
Triplexer TV/radio/satellite
Support ring
No
With dust cover
No
With hinged lid
No
Outlet direction
Straight
Imprintable label
Without indication field
With imprint
Yes
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Antimicrobial treatment
No
Surface protection
Lacquered
Surface finishing
Matt
Colour
Gold
RAL-number (similar)
1019
Transparent
No
Type of fastening
Mounting with screw
Number of modules (module system)
2
With buses/couplings
No
Suitable for number of connectors
2
Isolated connections
No
With strain relief
No
Shielded buses
No
Shielded housing
No
Luster terminal
No
With lighting
No
Suitable for degree of protection (IP)
IP20
degree of impact strength (IK)
IK04
Device width
45 mm
Device height
86 mm
Device depth
12 mm
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
