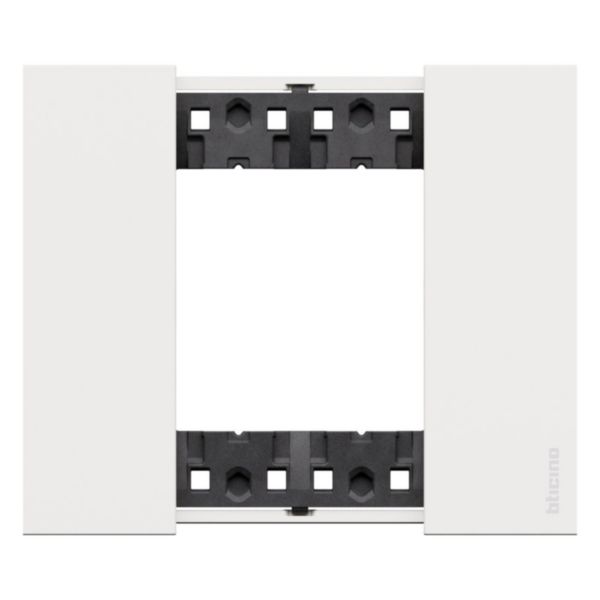

Name: 2 modules Living Now plate
Brand: BTicino
SKU: BT-KA4802KW
Availability: InStock

Description

The Living Now cover plate is the accessory that, together with the covers, is mounted on the functional part for the aesthetic completion of the switch. This 2-modules cover plate is of WHITE finish on a plastic base.

Product characteristics

Extreme purity of the design and precision of geometries Living Now has a unique shape, compact, distinctive.
Innovative design: perfect flatness of the switch thanks to a self-centering system of the covers that allows the controllers to always remain aligned to the plate, even after multiple drives.
Floating Frame: a flexible frame, placed on the back of the cover plate,free to move on the four corners, ensuring an optimal installation. Thanks to the floating frame, Living Now seems fluctuating on the wall.
2 modules, technopolymer, WHITE finish
Delivered with dedicated packaging to maintain the aesthetic characteristics unaltered

Recommendations / Restrictions

For internal use only.

Products benefits

Installation

The Living Now cover plate is equipped with a flexible frame, placed on the back of the plate, free to move on the four corners, ensuring an optimal installation.

Usage

Innovative Design: unique and compact shape that, once completed with the covers, gives the switch an absolute flatness; The finish of the plate, the same color of the cover keys and devices, is treated with a finely satin finish that is opaque to the eye and pleasantly silky to the touch.

Advantages

Innovative Design: unique and compact shape that, completed with the covers, gives the switch an absolute flatness
Floating frame: a flexible frame, placed on the back of the plate, free to move on the four corners, which guarantees an optimal installation by masking the imperfections of the wall or in the case of plasterboard boxes.
The separation between the aesthetic and functional parts allows to finish the installation in a workmanlike manner avoiding scratches or dirtying

Technical Characteristics

Number of units 1

Mounting direction Horizontal

Number of units horizontal 1

Number of units vertical 1

Number of modules horizontal (module system) 2

Number of modules vertical (module system) 1

With mounting grid No

Flush-mounted installation Yes

Suitable for subfloor installation duct box No

Suitable for wall duct No

Suitable for built-in installation No

Label space/information surface No

Material Plastic

Material quality Thermoplastic

Halogen free Yes

Antimicrobial treatment No

Surface protection Untreated

Surface finishing Glossy

Colour White

RAL-number (similar) 9003

Transparent No

With hinged lid No

Degree of protection (IP) Other

degree of impact strength (IK) IK04

Type of fastening Engage (snap)

Width 102.5 mm

Height 86 mm

Depth 11 mm

Built-in width 102.5 mm

Built-in height 86 mm

Operating / setting temperature (Min-Max) -5-35 °C

Storage temperature (Min-Max) -10-70 °C

Latin wood species Not applicable

Certification of wood (list) Not applicable

Wood Climate area Not applicable
