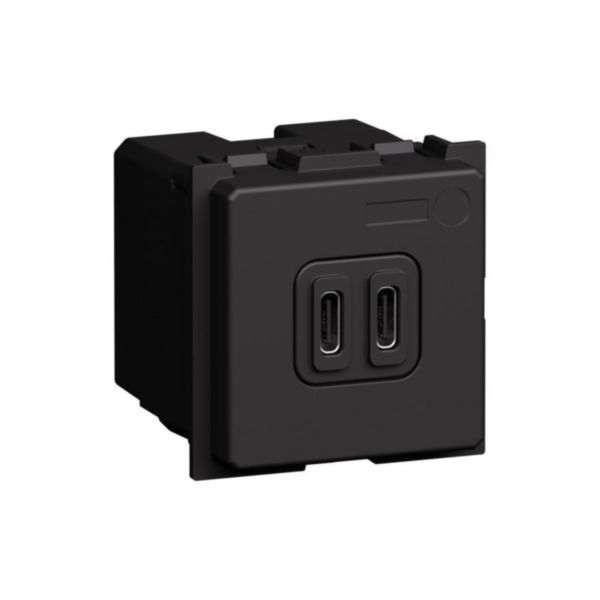

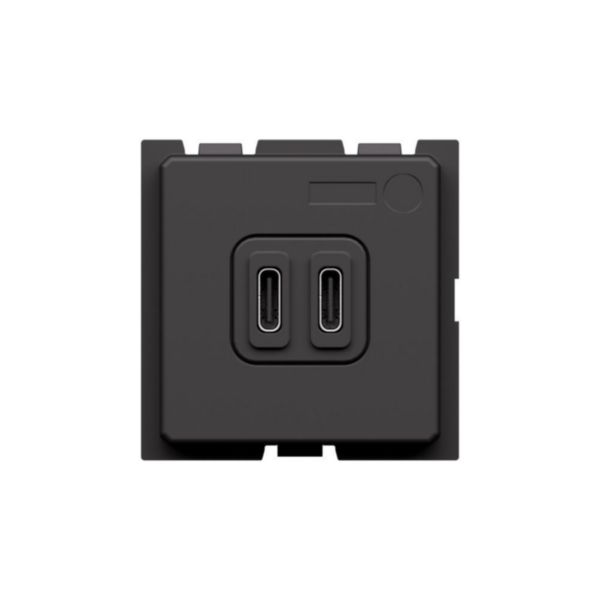

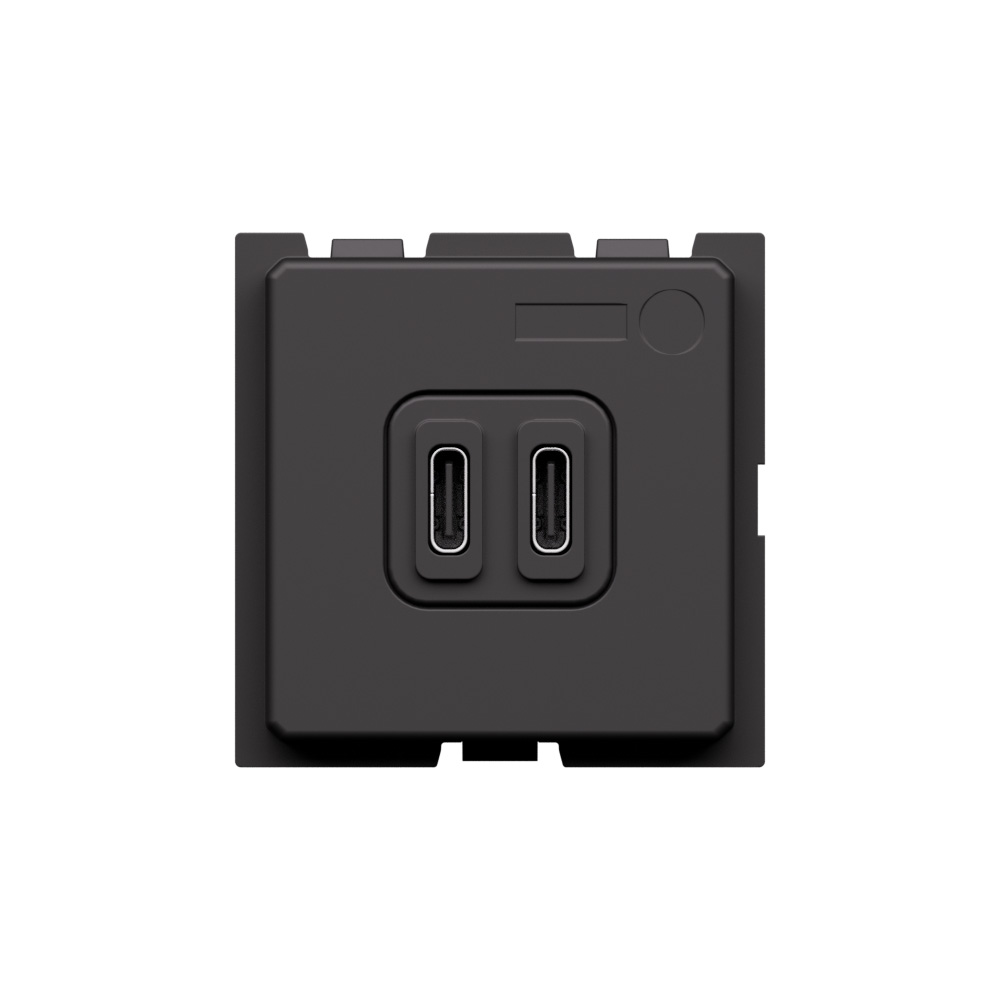

Double USB sockets - 2 x Type-C 30W.
BT-K4293CC
|
8005543735312
Description
Dual USB type C charger: fast charging suitable for laptops, tablets and smartphones
Product characteristics
- 2X30W Type-C USB outlets
- 5- 9 -12 -15 V Power Delivery/Quick charge
- Terminals 2,5mm²
Recommendations / Restrictions
- Recommended inside use only
Products benefits
Usage
- USB C: universal charger for laptop - tablet - smartphone
Advantages
- Standby consumption <0,07W
- Compatible with multi-gang wiring accessories
Technical Characteristics
Model
Other
Number of ports USB-A
0
Number of ports USB-C
2
Operating voltage (Min-Max)
100-240 V
Frequency (Min-Max)
50-60 Hz
Max. output current
3000 mA
Output voltage (Min-Max)
5-20 V
Power consumption
0.063 W
Connection type
Screwed terminal
Mounting method
Flush-mounted
Colour
Black
RAL-number
9011
Device width
45 mm
Device height
45 mm
Device depth
41 mm
Min. depth of built-in installation box
40 mm
Suitable for degree of protection (IP)
IP40
degree of impact strength (IK)
IK04
Antimicrobial treatment
No
Wireless
No
Built-in depth
33 mm
Operating / setting temperature (Min-Max)
5-40 °C
Storage temperature (Min-Max)
-20-70 °C
Voltage type
AC
Power Delivery
Yes
USB Output Power
30
Supply current (Min-Max)
1-1 A
Mandatory neutral
Yes
Terminal marking indication
Yes
Stress test conformity (1000V)
No
Halogen free
Yes
Number of terminals
2
Terminals capacity (Min-Max)
1.5-2.5 mm²
Cable nature for connection
Flexible or rigid
Cable section (Min-Max)
1.5-2.5 mm²
Number of modules (module system)
2
Documentation
4 documents
Brochure
BRO-LNOW-2M | PDF (15.9 MB) | EN
Brochure
BRO-LNOW-3M | PDF (16.3 MB) | EN
Catalog Commercial Page
CAT-LNOW-2M | PDF (23.1 MB) | EN
Catalog Commercial Page
CAT-LNOW-3M | PDF (22.5 MB) | EN
