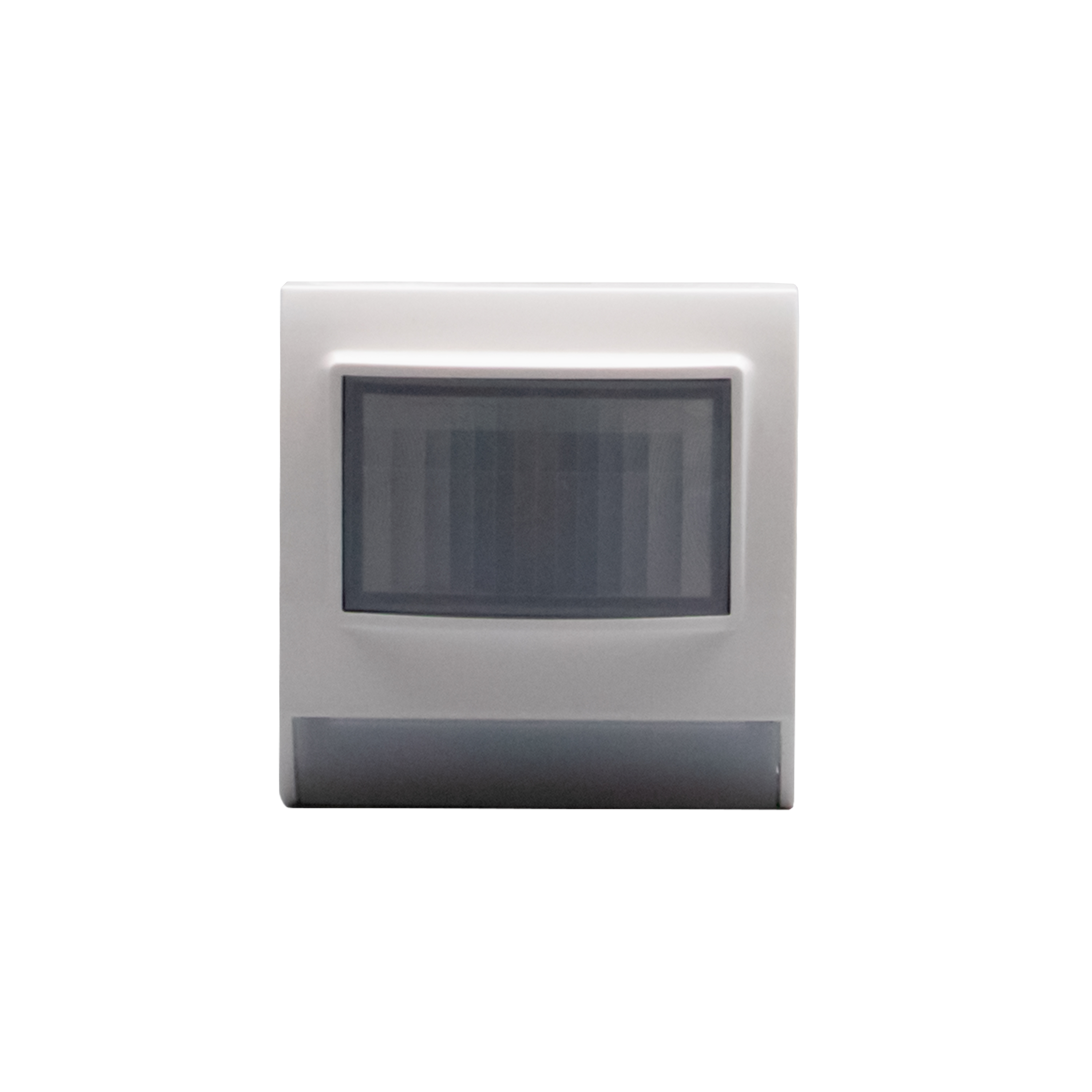

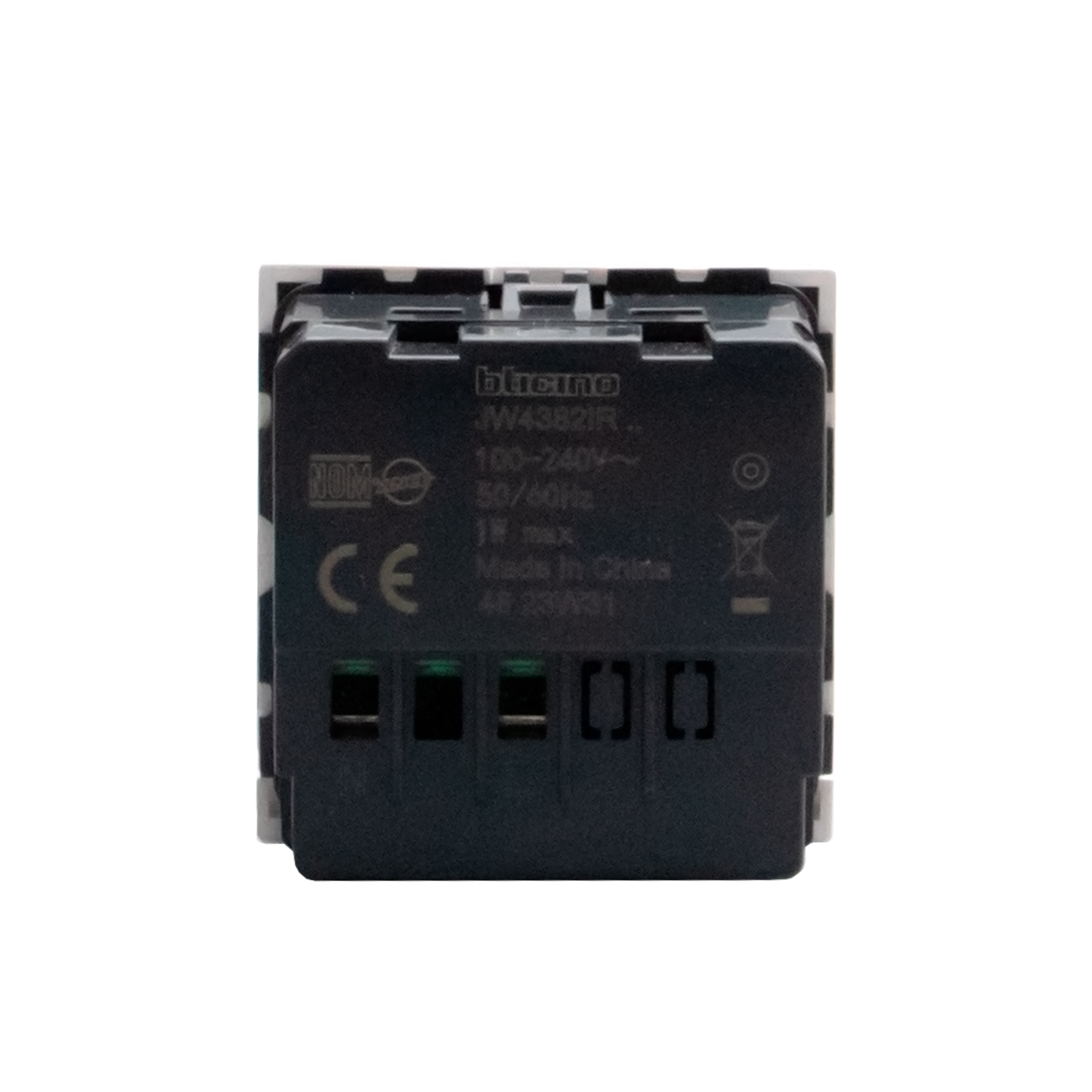

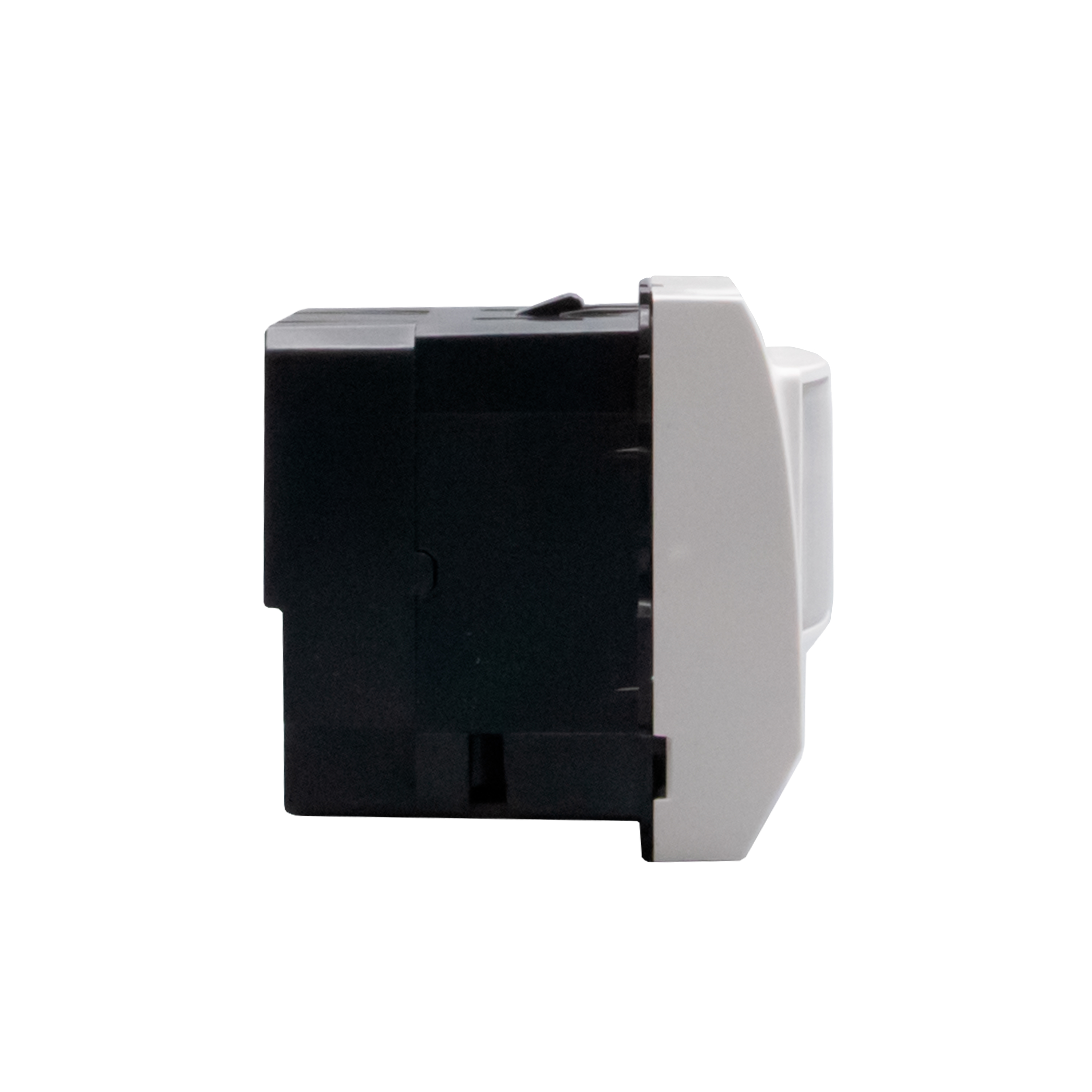

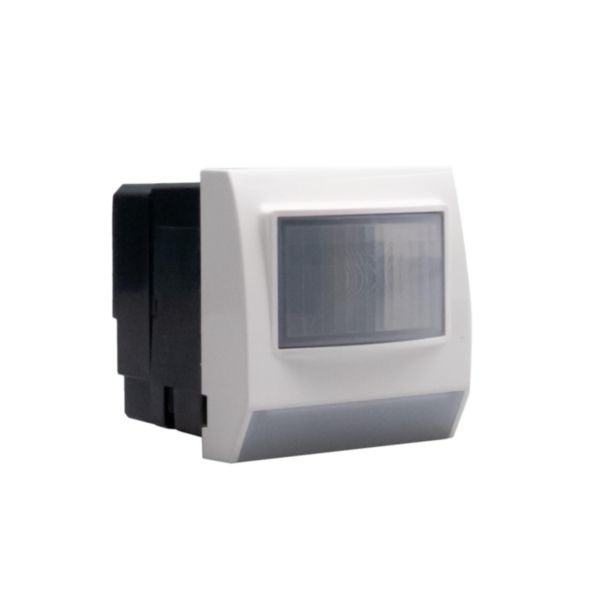

Step marker light + IR sensor
BT-JW4382IR
|
8005543720356
Description
LED Step Marker light + IR sensor bi-voltage 230 Va.c. with white light LED and On/Off switch to regulate the functioning. 2 modules, white
Product characteristics
- On/Off switch
- 230 Va.c.
- 2 modules
- Color White
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
- Indoor use only.
Products benefits
Installation
- Easy to install and remove
Usage
- It illuminates the floor or the steps of the staircase to facilitate walking
Advantages
- LED on board
- On/Off switch to regulate the functioning
Technical Characteristics
Model
Other
Movement sensor/presence detector technology
Passive infrared
Constant light control
Yes
HVAC-control
No
Forced switch on
No
Forced switch off
No
Animal zone
No
Creep-under protection
Yes
Background monitoring
No
Networkable
Yes
Scan angle
120 °
Optimum mounting height
1.2 m
Staircase light controller
Yes
Bridging switch
No
Max. reach sideways
6 m
Max. presence range
40 m²
Max. reach frontally
6 m
Diameter reach on floor
6 m
Suitable for wireless transmission
No
Remote operation
No
Supplied remote control
No
Response value sensitivity adjustable
Yes
Response value luminosity adjustable
Yes
With signal unit
Yes
Teach-function for response value luminosity
No
Dim function with dimmer basic element
No
Mounting method
Flush-mounted
Suitable for ceiling mounting
No
Suitable for wall mounting
No
Connection type
Screwed terminal
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Antimicrobial treatment
No
Colour
White
RAL-number (similar)
9003
Transparent
No
Degree of protection (IP)
IP20
degree of impact strength (IK)
IK04
Voltage type
AC
Frequency (Min-Max)
50-60 Hz
Nominal voltage (Min-Max)
230-230 V
Min. switch-on time
30 s
Max. duty cycle
600 min
Detection angle horizontal (Min-Max)
2-30 °
Max. switching power LED
0.5 W
Suitable for C-load
No
Number of switching zones
1
Max. starting current
2 A
Min. starting current
0.5 A
Substation input
No
With alarm function
No
With acoustic sensor
No
Ambient temperature (Min-Max)
5-40 °C
Width
45 mm
Height
45 mm
Depth
49.5 mm
Built-in width
45 mm
Built-in depth
35 mm
Built-in length
45 mm
Min. depth of built-in installation box
45 mm
With connection cable
No
Connection cable length
0 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Mandatory neutral
Yes
Terminal marking indication
No
Terminals capacity (Min-Max)
1-1.5 mm²
Cable nature for connection
Flexible or rigid
Label space/information surface
No
Entry membrane gland type
Flexible to cut
Horizontal fixing center distance (Min-Max)
3.5-3.7 mm
Auto switch
No
With DALI interface
No
