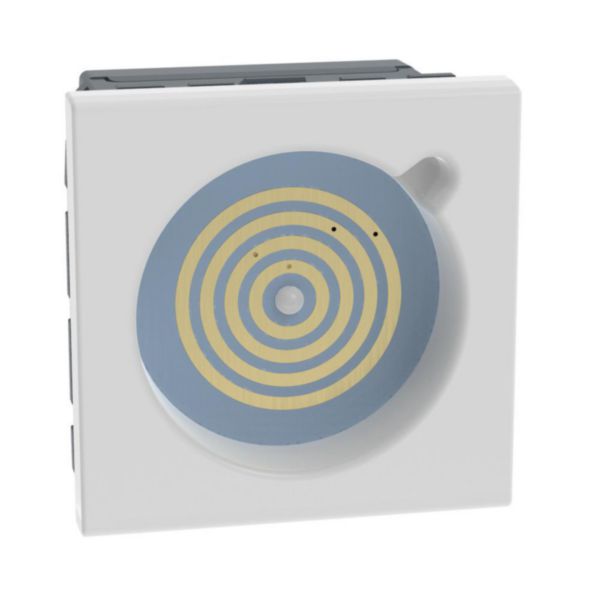

Socket pushbutton panel 1 button - Antibacterial range
BT-JW4375AB
|
8005543720837
Description
Socket for patient push-button panel with connector magnetic for patient push-button panel 1 button CMCO1101 - 2 modules, antibacterial
Product characteristics
- Socket pushbutton panel 1 button
- Screw and plate terminals
- 2 modules
- Color Antibacterial
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
- Indoor use only.
Products benefits
Installation
- Easy to install and remove
Usage
- 2 module device
Advantages
- It is coordinated with the MatixGO aesthetic
Technical Characteristics
Type of electrical accessory/spare part
Other
Type of mechanical accessory/spare part
Other
Accessory
No
Spare part
No
Width
45 mm
Height
45 mm
Depth
50 mm
degree of impact strength (IK)
IK04
Degree of protection (IP)
IP40
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Voltage type
AC
Nominal voltage (Min-Max)
230-250 V
Supply current (Min-Max)
10-12 A
Colour
White
Halogen free
Yes
Connection type
Screwed terminal
Cable section (Min-Max)
1.5-2.5 mm²
With complemantary luminous signal
No
Mounting method
Flush-mounted
Addressable
No
Connected object
No
Programming way
Not applicable
With voice command
No
Programmable
No
Interoperable connection Protocol
No
Connectable by Internet box
No
Product use function
Control & command systems
Antimicrobial treatment
Yes
Documentation
1 documents
Instruction Use
LE04601AE | PDF (131 KB)
1 documents
Catalog Commercial Page
CAT_MTXGO | PDF (24.9 MB) | EN
