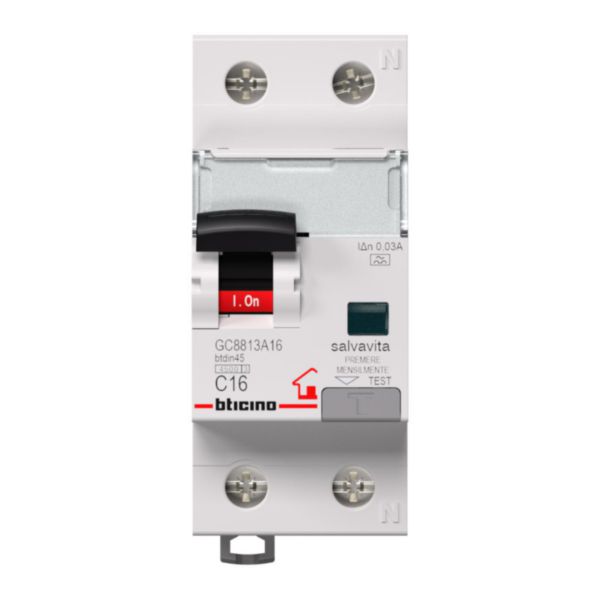

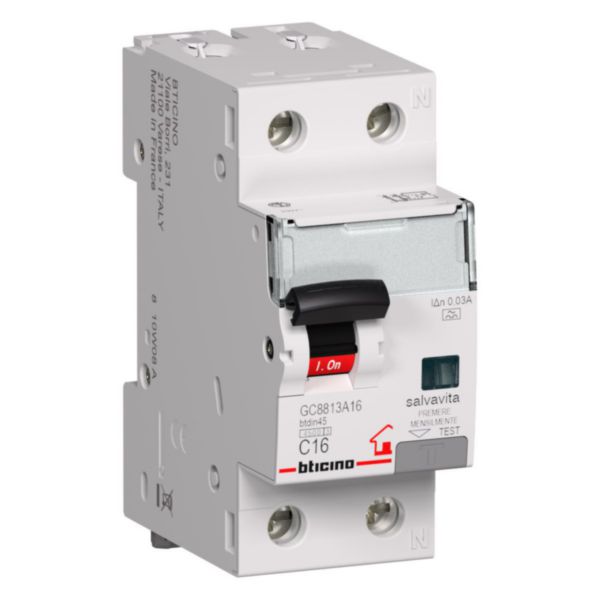

BTDIN-RS - Rcbo 1P+N - 4,5kA - Idn=0,03A type A - 230V - In=10A

BT-GC8813A16 | 8005543814857
BTDIN-RS - 1P+N earth-leakage thermal magnetic circuit breaker - 4,5kA - Idn=0,03A A type - 2 DIN modules - 230V - In=10A
Description

Protecting wiring installations against overloads and short-circuits - Protecting persons against direct and indirect contacts, and electric shock hazard - Provides protection against fire hazards due to a persistent earth fault current

Product characteristics
  • Breaking capacity 4500A according to IEC60898-1 standard. Curve C - 30mA - A Type.
  • A type (specific applications): dedicated lines - detects sinusoidal AC residual currents - Detects pulsating DC residual currents - It is used whenever fault currents are not sinusoidal - It is particularly suitable for the following specific applications : hobs, washing machines or materials that may produce DC fault currents, speed drives with frequency inverters, etc
  • Can be equipped with Btdin auxiliaries and accessories
  • Fitted with a test button, to be used frequently to check the tripping of the residual current function
  • Terminals: IP20 according to IEC/EN 60529 standard
Recommendations / Restrictions
  • In the absence of national regulations concerning testing frequency, Bticino recommends that the test be carried out monthly
Products benefits
Installation
  • Fitted with one bistable clamp on bottom side, allowing an easy positionning or removal of the product on the DIN rail
Usage
  • Fitted with a label holder allowing a clear, visible and convenient identification of the circuit - On and OFF indication printed on the handle respectively on red and green
Advantages
  • This device complies with substance-restriction requirements and has been designed in an environmentally conscious process
Technical Characteristics
Number of poles (total) 2
Number of protected poles 1
Rated voltage 230 V
Rated current 16 A
Rated fault current 0.03 A
Leakage current type A
Current limiting class 3
Rated short-circuit breaking capacity according to EN 61009 4.5 kA
Rated short-circuit breaking capacity according to IEC 60947-2 6 kA
Rated short-circuit breaking capacity Icn according to EN 61009-1 4.5 kA
Voltage type AC
Frequency 50 Hz
Release characteristic C
Concurrently switching neutral conductor Yes
With interlocking device Yes
Pollution degree 2
Ambient temperature during operating (Min-Max) -25-70 °C
Width in number of modular spacings 2
Built-in depth 44 mm
Anti-nuisance tripping version No
Degree of protection (IP) IP20
Connectable conductor cross section solid-core (Min-Max) 0.75-16 mm²
Connectable conductor cross section multi-wired (Min-Max) 0.75-10 mm²
Width 35.6 mm
Height 83 mm
Depth 77.7 mm
degree of impact strength (IK) IK02
Storage temperature (Min-Max) -40-70 °C
Nominal voltage (Min-Max) 110-264 V
Electric supplying direction By the top or bottom
Terminal marking indication Yes
Stress test conformity (1000V) Yes
Colour Grey
RAL-number 7035
Halogen free Yes
Connection type Screwed terminal
Connection type Busbar and cable
Label space/information surface Yes
