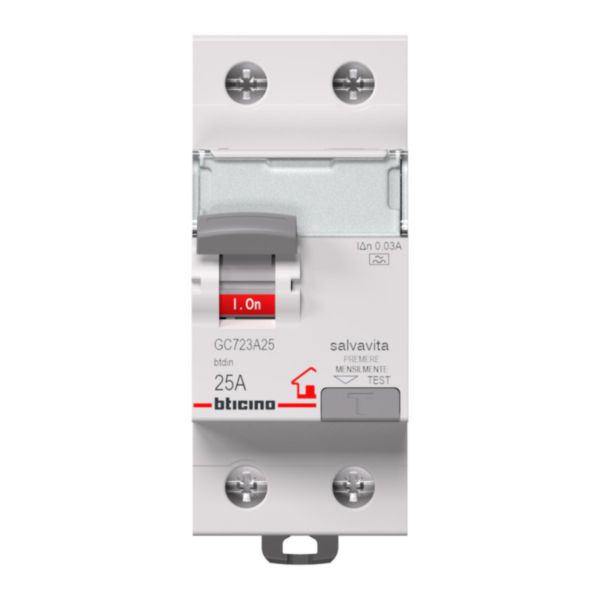

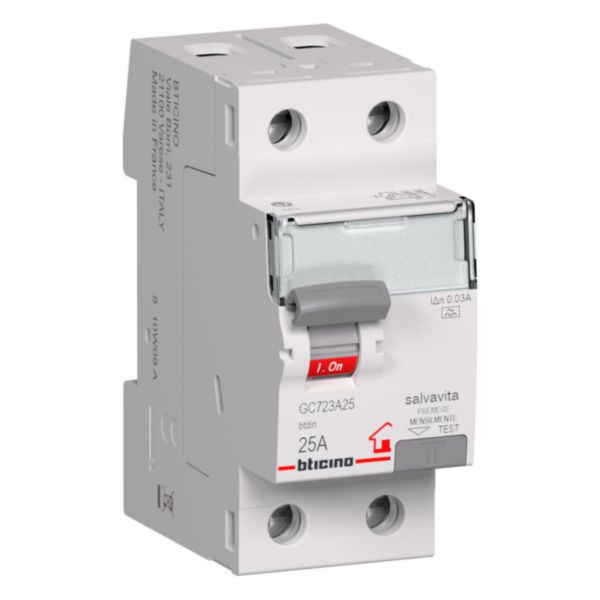

Earth leakage circuit breaker 2P - type A - In= 25A - Idn= 30mA - Vn= 230/400Vac - 2 modules
BT-GC723A25
|
8005543814956
Description
Protecting people from direct and indirect contact and protecting installations from insulation faults - Protection against fire hazards due to persistent earth fault current - Can also be used to control and isolate the installation safely
Product characteristics
- A type (specific applications): dedicated lines - detects sinusoidal AC residual currents - Detects pulsating DC residual currents - It is used whenever fault currents are not sinusoidal - It is particularly suitable for the following specific applications : hobs, washing machines or materials that may produce DC fault currents, speed drives with frequency inverters, etc
- Can be supplied either by wire, prong type busbar (top side or bottom side), fork type busbar (bottom side)
- Can be equipped with Btdin auxiliaries and accessories
- Fitted with a test button, to be used frequently to check the tripping of the residual current function
- Terminals: IP20 according to IEC/EN 60529 standard
Recommendations / Restrictions
- In the absence of national regulations concerning testing frequency, BTicino recommends that the test be carried out monthly
Products benefits
Installation
- Fitted with one bistable clamp on bottom side, allowing an easy positionning or removal of the product on the DIN rail
Usage
- Fitted with a label holder allowing a clear, visible and convenient identification of the circuit - ON and OFF indication printed on the handle respectively on red and green backgrounds for an easy identification of the status of the RCCB
Advantages
- This device complies with substance-restriction requirements and has been designed in an environmentally conscious process
Technical Characteristics
Number of poles
2
Rated voltage
230 V
Rated current
25 A
Rated fault current
0.03 A
Rated insulation voltage Ui
250 V
Rated impulse withstand voltage Uimp
4 kV
Mounting method
DIN rail
Leakage current type
A
Selective protection
No
Short-time delayed tripping
No
Short-circuit breaking capacity (Icw)
10 kA
Surge current capacity
0.25 kA
Voltage type
AC
With interlocking device
Yes
Frequency
50 Hz
Additional equipment possible
Yes
Degree of protection (IP)
IP20
Width in number of modular spacings
2
Built-in depth
44 mm
Ambient temperature during operating (Min-Max)
-25-60 °C
Pollution degree
2
Connectable conductor cross section multi-wired (Min-Max)
0.75-35 mm²
Connectable conductor cross section solid-core (Min-Max)
0.75-50 mm²
Colour
Grey
RAL-number (similar)
7035
Explosion-proof
No
Width
35.6 mm
Height
94.8 mm
Depth
77.8 mm
degree of impact strength (IK)
IK04
Storage temperature (Min-Max)
-40-70 °C
Nominal voltage (Min-Max)
180-250 V
Electric supplying direction
By the top or bottom
Terminal marking indication
No
Stress test conformity (1000V)
Yes
Halogen free
Yes
Connection type
Screwed terminal
Connection type
Busbar and cable
Label space/information surface
Yes
Documentation
1 documents
Technical Sheet
IDP000092EN-04 | PDF (645 KB) | EN
1 documents
PEP-EPD
LGRP-02395-V01.01-EN | PDF (733 KB) | EN
