Btdin BTicino

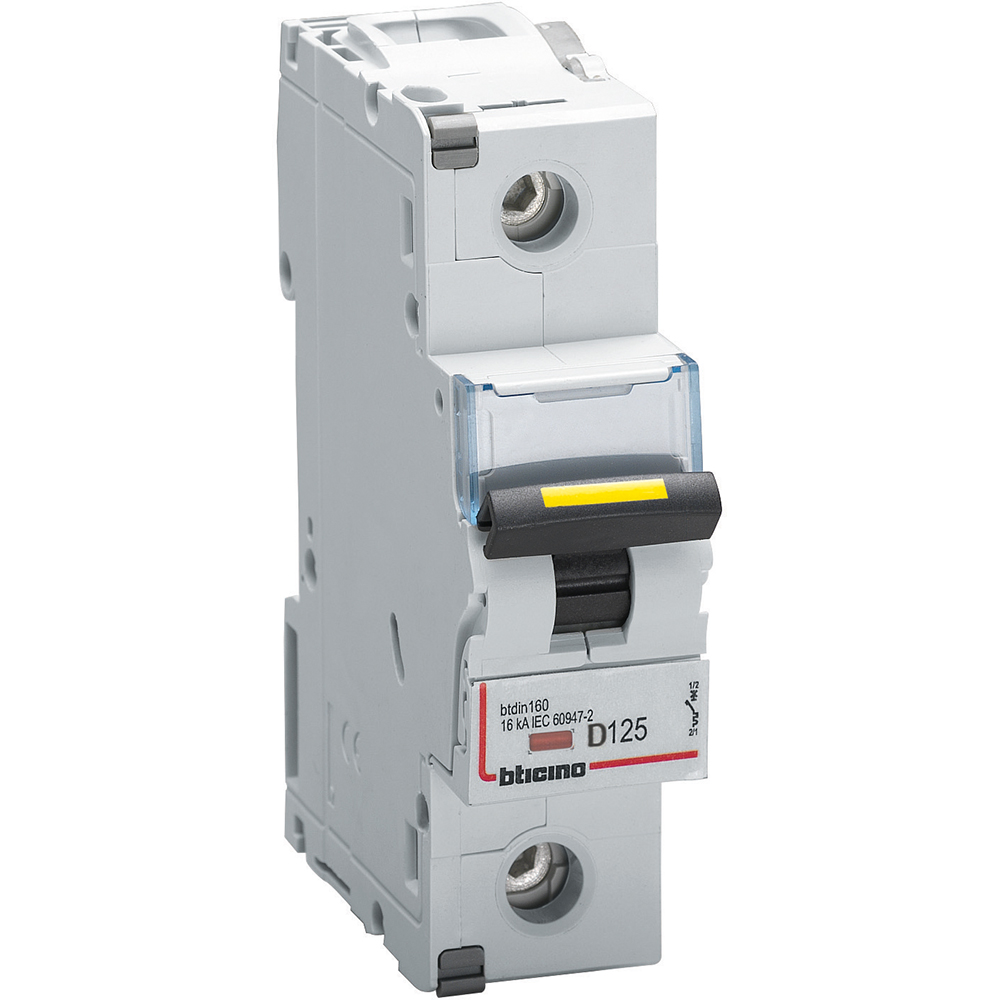

Modular circuit breaker Btdin160

Name: Modular circuit breaker Btdin160
Brand: BTicino
SKU: BT-FT81D125
Availability: InStock

BT-FT81D125 | 8005543407776

BTDIN160 - 1P thermal-magnetic curve D - In= 125A - Icu= 16kA - Vn= 230/400 Vac - 1.5 modules

Compare

Technical Characteristics

Release characteristic D

Number of poles (total) 1

Number of protected poles 1

Rated current 125 A

Voltage type AC

Connectable conductor cross section multi-wired (Min-Max) 6-50 mm²

Connectable conductor cross section solid-core (Min-Max) 6-70 mm²

Documentation

Instruction Use

G2297G | PDF (1.7 MB)
